12V vs. 24V LED Modules ：Which is the Safer Choice for High-Rise Signage?

author: Becky Wei

12V vs. 24V LED Modules: Which is the Safer Choice for High-Rise Signage?

High-rise signage is one of the most demanding applications in the commercial LED industry. Towering hundreds of feet above ground level, these installations face unique challenges that ground-level signage simply does not encounter: extended cable runs, extreme weather exposure, strict building code compliance, difficult maintenance access, and zero tolerance for electrical failures.

At the heart of every high-rise signage project lies a critical engineering decision that most people overlook: should you use 12V or 24V LED modules?

This is not merely a technical preference. It is a decision that directly impacts fire safety, energy efficiency, installation cost, long-term maintenance, and even the legal compliance of your signage project. Choosing the wrong voltage can lead to premature LED failure, excessive voltage drop, dangerous heat buildup, or even electrical code violations that delay your project by months.

With over 13 years of factory experience manufacturing commercial-grade LED modules, ADLED has supplied LED solutions to more than 5,000 commercial signage and lighting projects across North America and Europe. Through this extensive real-world experience, we have identified the precise technical factors that determine whether 12V or 24V LED modules are the safer and more efficient choice for high-rise applications.

This comprehensive guide breaks down every critical comparison point between 12V and 24V LED modules — from voltage drop calculations to fire safety ratings — so you can make a data-driven decision for your next high-rise signage project.

Understanding LED Module Voltage Fundamentals
12V LED Modules: Technical Profile and Characteristics
24V LED Modules: Technical Profile and Characteristics
Voltage Drop: The Decisive Factor for High-Rise Signage
Safety Comparison: Electrical Fire Risk and Code Compliance
Power Efficiency and Thermal Management
Installation and Wiring Considerations
Cost Analysis: Total Cost of Ownership
Application Scenarios: When to Choose 12V vs. 24V
ADLED's Comprehensive Solution for High-Rise Signage
Expert Recommendations: Making the Right Voltage Decision
Conclusion: The Clear Path Forward for High-Rise Signage
FAQ
Summary

Understanding LED Module Voltage Fundamentals

Before comparing 12V and 24V LED modules in depth, it is essential to understand the basic electrical principles that differentiate these two systems.

What Does "Voltage" Mean for LED Modules?

LED modules are semiconductor devices that require direct current (DC) power to operate. The voltage rating — whether 12V or 24V — defines the electrical pressure at which the module is designed to operate optimally.

Key electrical relationships to remember:

Power (Watts) = Voltage (Volts) × Current (Amps)
Voltage Drop = Current × Wire Resistance
Heat Generated = Current² × Resistance

These formulas reveal why voltage matters so much in high-rise signage. When you double the voltage from 12V to 24V while maintaining the same power output, you cut the current in half. This reduction in current has cascading benefits throughout the entire electrical system.

The Constant-Voltage Architecture

Both 12V and 24V LED modules operate on a constant-voltage (CV) architecture. This means:

A power supply (LED driver) converts AC mains power to a regulated DC output
The LED modules are connected in parallel across this DC bus
Each module draws the current it needs based on its internal circuit design
The voltage remains nominally constant throughout the circuit — until voltage drop becomes significant

ADLED's LED module product line includes both 12V and 24V constant-voltage options, manufactured with automated SMT assembly lines and premium optical lenses featuring 180° wide beam distribution. All products carry UL, cUL, CE, and RoHS certifications and are backed by a 5-year industrial warranty.

12V LED Modules: Technical Profile and Characteristics

How 12V LED Modules Work

12V LED modules are designed to operate at a nominal 12 volts DC. They typically feature LED chips arranged in series-parallel configurations optimized for this lower voltage.

Core Technical Specifications of 12V LED Modules:

Parameter	Typical Range
Operating Voltage	12V DC ±0.5V
Current per Module	0.3A – 1.5A
Power per Module	0.72W – 7.2W
Maximum Series Length	20 – 40 modules (varies by wattage)
Voltage Drop Threshold	0.6V maximum (5% of 12V)
Typical Wire Gauge Required	18 AWG or thicker for long runs

Where 12V LED Modules Excel

Compact Signage and Channel Letters

For small to medium-sized channel letters, 12V LED modules remain the industry standard. Their shorter maximum series length is actually irrelevant when each letter only requires 5 to 15 modules. ADLED's 12V LED module range includes Osram-chip and Samsung-chip options with IP68 waterproof ratings specifically designed for channel letter applications.

Wider Product Availability

The 12V ecosystem is larger and more mature. More manufacturers produce 12V modules, more power supplies are available, and more installers are familiar with 12V systems. This translates to easier sourcing and potentially lower component costs.

Safety Extra-Low Voltage (SELV) Classification

12V falls squarely within the Safety Extra-Low Voltage (SELV) classification. At this voltage level, the risk of electric shock is virtually zero under normal conditions. This makes 12V modules particularly attractive for installations where public access to electrical components is possible.

Lower Spark Hazard

At 12V, the potential for arc flash and spark generation is significantly lower than at higher voltages. This is particularly relevant for signage installed near flammable materials or in environments with combustible dust.

Limitations of 12V in High-Rise Applications

Severe Voltage Drop Over Distance

The most significant limitation of 12V systems becomes apparent when cable runs extend beyond a few meters. Because 12V systems operate at higher current for the same power output, voltage drop accumulates rapidly along the wire. For a high-rise building where the power supply may be located 50 to 100 feet from the farthest LED module, this voltage drop can cause visible dimming at the end of the run.

The maximum acceptable voltage drop for a 12V system is only 0.6V (5% of nominal voltage). Beyond this threshold, LEDs begin to dim noticeably, color temperature may shift, and long-term reliability is compromised.

More Power Supplies Required

Because each 12V power supply can only effectively drive a limited number of modules before voltage drop becomes problematic, high-rise signage often requires multiple power supplies distributed throughout the installation. This increases cost, complexity, and potential failure points.

Heavier Gauge Wiring

To mitigate voltage drop, 12V systems require thicker (lower gauge) wire. This increases material costs and makes cable management more difficult inside narrow sign structures and conduit runs.

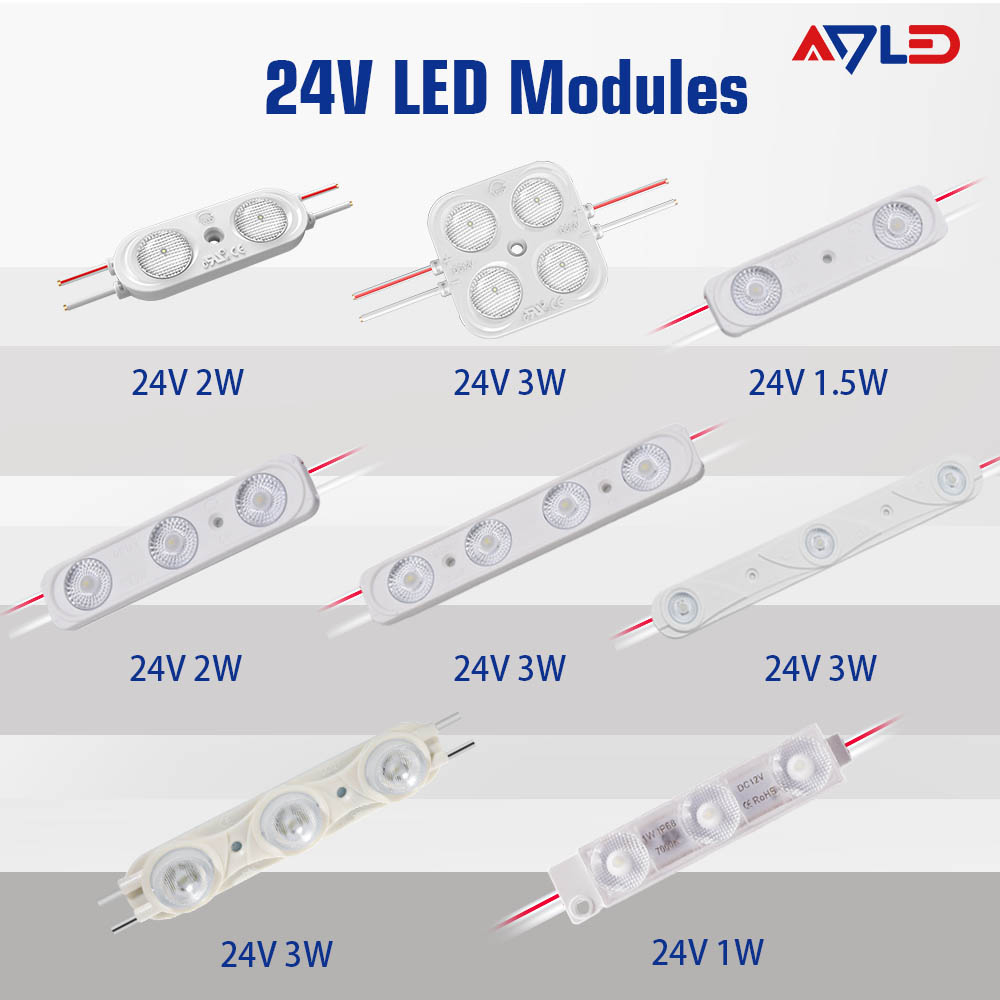

24V LED Modules: Technical Profile and Characteristics

How 24V LED Modules Work

24V LED modules operate at a nominal 24 volts DC. They typically feature more LED chips in series per module string compared to 12V equivalents, which allows them to operate at the same power output but with half the current.

Core Technical Specifications of 24V LED Modules:

Parameter	Typical Range
Operating Voltage	24V DC ±1V
Current per Module	0.15A – 0.75A
Power per Module	0.72W – 7.2W
Maximum Series Length	40 – 80 modules (varies by wattage)
Voltage Drop Threshold	1.2V maximum (5% of 24V)
Typical Wire Gauge Required	20 AWG acceptable for moderate runs

Where 24V LED Modules Excel

Extended Cable Runs

The most compelling advantage of 24V LED modules is their ability to maintain voltage stability over much longer distances. Because the current is halved compared to an equivalent 12V system, voltage drop is reduced by approximately 75% for the same wire gauge and distance.

For high-rise signage, this means a single 24V power supply can effectively drive modules located 100 feet or more away without visible dimming. This dramatically reduces the number of power supplies needed and simplifies the electrical distribution architecture.

Higher Power Efficiency

Quality LED drivers operate 2-5% more efficiently at 24V than at 12V. This efficiency gain comes from reduced current stress on the driver's internal components, lower conduction losses in the wiring, and improved thermal management within the power supply itself.

Over the lifespan of a high-rise signage installation — typically 50,000 hours or more — this efficiency difference translates into meaningful energy savings and reduced operating costs.

Reduced Heat Generation

Heat is the enemy of LED longevity. Because 24V systems operate at lower current, they generate significantly less resistive heat in the wiring, connections, and PCB traces. This reduced thermal stress extends the lifespan of both the LED modules and the power supply.

ADLED's high-efficiency LED modules achieve up to 200 lumens per watt with ErP energy efficiency class B rating, and the 24V variants particularly benefit from reduced thermal stress in extended-run applications.

Fewer Power Supplies, Lower System Cost

For large-format high-rise signage, a 24V architecture often requires 40-60% fewer power supplies than an equivalent 12V design. Each power supply represents a cost item, a potential failure point, and a maintenance burden. Consolidating to fewer, larger 24V power supplies reduces total system cost and improves long-term reliability.

Limitations of 24V in Certain Applications

Less Granular Cutting

24V LED modules typically have longer cut intervals than 12V modules because more LEDs are connected in series within each module. For very small channel letters or intricate signage with tight dimensions, this can limit placement flexibility.

Slightly Higher Shock Risk

While 24V is still classified as SELV and is considered safe for human contact under normal conditions, it is at the upper boundary of the SELV range. In wet or humid conditions — common in outdoor high-rise signage — the margin of safety is narrower than with 12V.

Narrower Product Selection

Although the 24V product range has grown significantly, it still offers fewer options than the 12V market. Some specialized module types may only be available in 12V configurations.

Voltage Drop: The Decisive Factor for High-Rise Signage

Voltage drop is the single most important technical consideration when choosing between 12V and 24V LED modules for high-rise signage. Understanding voltage drop is essential for making an informed decision.

What Is Voltage Drop?

Voltage drop is the reduction in voltage that occurs as electrical current travels through a conductor. Every wire has inherent resistance, and as current flows through that resistance, some voltage is "lost" as heat.

The formula is straightforward:

Voltage Drop = 2 × Length × Current × Resistance per Unit Length

(The factor of 2 accounts for both the positive and negative conductors in the circuit.)

Why Voltage Drop Matters More in High-Rise Signage

In ground-level signage, cable runs are typically short — 5 to 15 feet from the power supply to the farthest module. In high-rise signage, these distances can extend to 50, 100, or even 200 feet.

Consider a practical example:

Scenario: A high-rise building facade sign with 100 feet of cable run

Total LED load: 300W
Wire: 16 AWG copper

12V System Calculation:

Current = 300W ÷ 12V = 25A
Voltage Drop ≈ 2 × 100 × 25 × 0.000401 = 2.0V
Percentage Drop = 2.0V ÷ 12V = 16.7% ❌ (Far exceeds 5% limit)

24V System Calculation:

Current = 300W ÷ 24V = 12.5A
Voltage Drop ≈ 2 × 100 × 12.5 × 0.000401 = 1.0V
Percentage Drop = 1.0V ÷ 24V = 4.2% ✅ (Within acceptable limit)

This dramatic difference illustrates why 24V systems are almost always preferred for high-rise signage with extended cable runs. The 12V system would require impractically thick wire or multiple power supplies distributed throughout the installation, while the 24V system operates within acceptable parameters using standard wiring.

The 5% Rule

Industry best practice dictates that voltage drop should not exceed 5% of the nominal system voltage.

For 12V systems: Maximum voltage drop = 0.6V
For 24V systems: Maximum voltage drop = 1.2V

This means that for the same wire gauge and distance, a 24V system can deliver twice the power over twice the distance while maintaining the same percentage voltage drop. In practical terms, this allows 24V systems to cover much larger signage areas from a single power supply location.

ADLED's Approach to Voltage Drop Management

ADLED's LED module product line addresses voltage drop challenges through several engineering strategies:

Constant Current Driver Options: ADLED offers constant-current LED modules that maintain stable brightness regardless of voltage drop, eliminating the dimming effect at the end of long runs.
High-Efficiency PCB Design: Optimized copper trace layouts minimize internal resistance within each module.
Multiple Voltage Options: ADLED provides 12V, 24V, 110V, and 220V LED module options, allowing customers to select the optimal voltage architecture for their specific project requirements.
Technical Support: ADLED's engineering team provides professional spacing recommendations and CAD-based layout support to optimize module positioning and minimize voltage drop for bulk signage projects.

Safety Comparison: Electrical Fire Risk and Code Compliance

Safety is paramount in high-rise signage. These installations are often located above public spaces, and electrical failures can have catastrophic consequences. Let's examine how 12V and 24V LED modules compare from a safety perspective.

Electric Shock Hazard

Both 12V and 24V LED modules operate within the Safety Extra-Low Voltage (SELV) classification defined by international electrical standards. At these voltage levels, the risk of fatal electric shock is negligible under normal dry conditions.

However, in wet or humid environments — which are common in outdoor high-rise signage — the risk profile changes slightly:

12V: Virtually zero shock risk even in wet conditions. The voltage is too low to drive dangerous current through human skin, even when wet.
24V: Still classified as SELV and extremely safe, but at the upper boundary of the safe range. In extreme conditions (submerged, saltwater exposure), the risk margin is slightly narrower.

For high-rise signage where modules may be exposed to rain, condensation, or coastal salt spray, both voltages are considered safe when properly installed with IP67 or IP68 rated modules. ADLED's waterproof LED modules feature injection-molded housing combined with UV-resistant silicone encapsulation, providing reliable protection regardless of voltage choice.

Arc Flash and Spark Risk

Arc flash occurs when electrical current jumps across a gap between conductors. The likelihood and severity of arc flash increase with voltage.

12V: Extremely low arc flash risk. The voltage is generally insufficient to sustain an arc across typical connection gaps.
24V: Still very low arc flash risk, but marginally higher than 12V. In practice, the difference is negligible for properly installed LED signage systems.

Fire Risk from Overheating

The primary fire risk in LED signage comes from overheating due to excessive current, poor connections, or undersized wiring. Here, the physics clearly favor 24V systems:

Lower Current = Less Heat: Since P = I²R, heat generation is proportional to the square of the current. A 24V system operating at half the current of an equivalent 12V system generates only one-quarter the resistive heat in the wiring.
Reduced Thermal Stress on Connections: Loose or corroded connections create resistance, which generates heat. Lower current in 24V systems means less heat at every connection point, reducing the risk of thermal runaway.
Better Compatibility with Standard Wiring: 24V systems can use thinner wire for the same power delivery, which is easier to terminate properly and less likely to overheat if a connection is imperfect.

Building Code Compliance

High-rise buildings are subject to strict electrical codes that vary by jurisdiction. Key considerations include:

National Electrical Code (NEC) — United States:

Both 12V and 24V LED systems are classified as Class 2 circuits when powered by listed Class 2 power supplies
Class 2 circuits have simplified wiring requirements and do not require conduit in many applications
Both voltages qualify for wet location ratings when used with appropriate IP-rated modules

International Electrotechnical Commission (IEC) Standards:

SELV classification applies to both 12V and 24V DC systems
Both voltages meet requirements for installation in accessible locations without additional protection

Local Building Codes:

Some jurisdictions have specific requirements for signage on high-rise buildings, including mandatory use of listed components and specific power supply locations
ADLED's LED modules carry UL, cUL, CE, and RoHS certifications, ensuring compliance with major international standards and facilitating smooth building code reviews

ADLED's Safety Commitment

Every ADLED LED module undergoes strict multi-stage testing before shipment, including high-temperature aging, thermal cycling, voltage stability checks, and optical performance verification. The company's 12,000㎡ ISO9001-certified factory maintains rigorous quality control to ensure that every module meets or exceeds international safety standards.

Power Efficiency and Thermal Management

Energy efficiency directly impacts the operating cost and environmental footprint of high-rise signage. It also affects the thermal management requirements of the installation.

System Efficiency Comparison

LED Driver Efficiency: Quality LED drivers (power supplies) typically operate at 85-92% efficiency. However, efficiency varies with load and output voltage:

24V drivers generally operate 2-5% more efficiently than equivalent 12V drivers
This is because lower current reduces conduction losses in the driver's output rectifiers and filtering components
Over a 50,000-hour lifespan, this efficiency difference can save hundreds of kilowatt-hours of electricity

Wiring Losses: As discussed in the voltage drop section, 24V systems experience significantly lower resistive losses in the wiring. For a typical high-rise installation with 100-foot cable runs, wiring losses in a 12V system can reach 10-15% of total power consumption, while a 24V system typically experiences only 3-5% wiring losses.

Total System Efficiency: When combining driver efficiency and wiring losses, the total system efficiency difference becomes substantial:

System Type	Driver Efficiency	Wiring Loss	Total System Efficiency
12V (Long Run)	88%	12%	~77%
24V (Long Run)	91%	4%	~87%

This 10-percentage-point difference in total system efficiency means that a 24V system delivers more light per watt of input power, reducing both energy costs and environmental impact.

Thermal Management Implications

Heat is the primary enemy of LED longevity. Every 10°C increase in operating temperature above the rated maximum can reduce LED lifespan by up to 50%.

12V Systems:

Higher current generates more heat in wiring and connections
Multiple power supplies concentrated in small spaces create thermal hotspots
Higher thermal load on LED module PCBs due to higher current traces

24V Systems:

Lower current reduces heat generation throughout the system
Fewer power supplies mean less concentrated thermal output
Reduced thermal stress extends LED module lifespan
Less heat means reduced requirement for ventilation or cooling in enclosed sign structures

ADLED's LED modules are engineered with high-quality SMD 2835 and SMD 3030 LED chips that maintain stable brightness and excellent color consistency across extended operating cycles. The company's products achieve up to 200 lumens per watt, maximizing light output while minimizing heat generation.

Installation and Wiring Considerations

The practical realities of installing LED modules in high-rise buildings significantly influence the voltage decision.

Cable Run Lengths

High-rise signage often requires cable runs of 50 to 200 feet from the power supply location to the farthest LED module. These distances may span multiple floors, pass through building infrastructure, and navigate complex structural elements.

12V Systems:

Maximum effective cable run: approximately 20-30 feet with standard 16 AWG wire
Beyond this distance, voltage drop becomes unacceptable without impractically thick wire
Multiple power supplies must be distributed throughout the installation

24V Systems:

Maximum effective cable run: approximately 50-80 feet with standard 16 AWG wire
Can cover most high-rise signage installations from a centralized power supply location
Fewer power supplies reduce installation complexity

Wiring Infrastructure

Conduit and Raceway Requirements:

Both 12V and 24V Class 2 circuits typically do not require conduit when installed according to NEC guidelines. However, in high-rise buildings, local codes may require conduit for all wiring regardless of voltage classification.

Wire Gauge Requirements:

For equivalent power delivery over the same distance:

12V systems require wire 2-4 gauges thicker than 24V systems
Thicker wire is heavier, stiffer, more expensive, and harder to work with in tight spaces
24V systems allow the use of standard 18-20 AWG wire for most applications, simplifying installation

Power Supply Placement

12V Systems:

Power supplies must be located close to the LED modules to minimize voltage drop
In high-rise buildings, this often means installing power supplies on multiple floors or even inside the sign structure itself
Distributed power supplies increase installation time, maintenance complexity, and potential failure points

24V Systems:

Power supplies can be centralized in a single electrical room or mechanical space
Centralized placement simplifies maintenance, improves accessibility, and allows for better environmental control of the power supplies
Fewer power supplies reduce the total number of components that can fail

Maintenance Access

High-rise signage maintenance is inherently difficult and expensive. Any design that reduces the number of components requiring maintenance provides significant long-term value.

12V Systems:

More power supplies mean more potential failure points
Distributed power supplies may be located in hard-to-access areas within the sign structure
Troubleshooting voltage drop issues requires measuring voltage at multiple points along the installation

24V Systems:

Fewer power supplies mean fewer potential failures
Centralized power supplies are easier to access and maintain
Simplified electrical architecture makes troubleshooting faster and more straightforward

ADLED provides comprehensive technical support including CAD-based layout recommendations to optimize module placement and minimize installation complexity. The company's LED module product line includes options for both 12V and 24V configurations, allowing customers to select the optimal solution for their specific installation requirements.

Cost Analysis: Total Cost of Ownership

The initial purchase price of LED modules is only one component of total cost. For high-rise signage, the total cost of ownership (TCO) includes installation labor, wiring materials, power supplies, energy consumption, maintenance, and expected lifespan.

Initial Component Costs

LED Modules:

12V and 24V LED modules from the same manufacturer typically have similar per-unit prices
ADLED offers both 12V and 24V options across their premium LED module range at competitive factory-direct pricing

Power Supplies:

24V power supplies may cost 10-20% more per unit than equivalent 12V power supplies
However, 24V systems typically require 40-60% fewer power supplies
Net result: 24V systems often have lower total power supply costs

Wiring:

12V systems require thicker, more expensive wire for long runs
24V systems can use standard, less expensive wire
For high-rise installations with extensive wiring, 24V systems typically save 20-40% on wiring material costs

Installation Labor Costs

Installation labor is often the largest single cost in high-rise signage projects. Factors affecting labor cost include:

Number of power supplies to install and wire
Total length and gauge of wire to pull
Complexity of electrical connections
Time spent troubleshooting voltage drop issues

24V systems reduce all of these labor factors by requiring fewer power supplies, less wire, simpler connections, and minimal voltage drop troubleshooting. Industry estimates suggest that 24V systems can reduce installation labor costs by 25-40% compared to equivalent 12V systems in high-rise applications.

Energy Costs

As discussed in the efficiency section, 24V systems deliver approximately 10% higher total system efficiency. For a high-rise signage installation consuming 1,000W continuously, this translates to:

Annual energy savings: approximately 876 kWh
At $0.12 per kWh: approximately $105 per year
Over 10 years: approximately $1,050 in energy savings

While this may seem modest for a single installation, it scales significantly for larger signs or multiple installations.

Maintenance and Replacement Costs

Power Supply Failures:

Power supplies are the most common failure point in LED signage systems. Since 24V systems require fewer power supplies, they statistically experience fewer failures over the same time period.

LED Module Lifespan:

Reduced thermal stress in 24V systems extends LED module lifespan. While both 12V and 24V modules from quality manufacturers like ADLED carry 5-year warranties, real-world experience suggests that 24V modules in properly designed systems may last 20-30% longer before lumen depreciation becomes noticeable.

Troubleshooting Time:

Simplified 24V electrical architecture makes troubleshooting faster and less expensive when problems do occur.

Total Cost of Ownership Summary

Cost Category	12V System	24V System	Advantage
LED Modules	Baseline	Baseline	Equal
Power Supplies	Higher (more units)	Lower (fewer units)	24V
Wiring Materials	Higher (thicker wire)	Lower (standard wire)	24V
Installation Labor	Higher	Lower (25-40% savings)	24V
Energy Costs (10yr)	Higher	Lower (10% savings)	24V
Maintenance (10yr)	Higher	Lower	24V
Total TCO	Higher	Lower	24V

For high-rise signage applications, 24V LED module systems consistently deliver lower total cost of ownership despite potentially similar initial component costs.

Application Scenarios: When to Choose 12V vs. 24V

While 24V LED modules offer clear advantages for most high-rise signage applications, there are specific scenarios where 12V remains the better choice. Understanding these scenarios ensures optimal system design.

Choose 12V LED Modules When:

1. Small Channel Letters (Under 24 Inches) For individual channel letters with dimensions under 24 inches, the internal cable runs are typically only a few feet. Voltage drop is negligible at these distances, and 12V modules offer the widest product selection and most granular cutting options.

ADLED's basic LED module range includes ultra-compact 12V modules specifically designed for small illuminated logos and mini channel letters.

2. Very Short Cable Runs (Under 15 Feet) When the power supply is located within 15 feet of all LED modules, voltage drop is not a significant concern for either voltage. In this scenario, 12V modules may be preferred due to wider product availability and installer familiarity.

3. Existing 12V Infrastructure If the building already has 12V power distribution infrastructure in place, leveraging this existing investment may make 12V modules the more economical choice.

4. Extreme Safety Requirements In applications where the absolute minimum voltage is required — such as signage in explosive atmospheres or areas with extreme moisture exposure — 12V provides the widest safety margin.

5. Budget-Constrained Projects with Short Runs For projects where initial cost is the primary concern and cable runs are short, 12V modules may offer slight cost advantages due to wider market competition and installer familiarity.

Choose 24V LED Modules When:

1. Large-Format High-Rise Signage For building-mounted signs, facade illumination, and rooftop signage with cable runs exceeding 30 feet, 24V modules are almost always the superior choice. The reduced voltage drop, lower current, and simplified power distribution provide clear technical and economic advantages.

2. Multi-Story Sign Installations When signage spans multiple floors or requires cable runs through building infrastructure, 24V systems allow centralized power supply placement and eliminate the need for distributed power supplies on each floor.

3. High-Power Signage Systems For signs with total power consumption exceeding 300-400W, 24V systems dramatically reduce current requirements, allowing the use of standard wiring and reducing thermal stress throughout the system.

4. Long-Term Reliability Requirements For installations where maintenance access is difficult or expensive — such as signage on high-rise buildings — the extended lifespan and reduced failure rate of 24V systems provide significant long-term value.

5. Energy-Efficient Designs For projects pursuing LEED certification or other sustainability standards, the 10% efficiency advantage of 24V systems contributes to reduced energy consumption and environmental impact.

6. Projects Requiring UL/CE Certification ADLED's 24V LED modules carry full UL, cUL, CE, and RoHS certifications, ensuring compliance with international standards and facilitating smooth building code approvals for high-rise installations.

Hybrid Approaches

Some high-rise signage projects benefit from a hybrid approach:

24V for primary distribution: Use 24V power supplies and wiring for the main distribution network throughout the building
12V at the point of installation: Use local 24V-to-12V converters near small channel letters or compact signage elements where 12V modules are preferred

This hybrid approach combines the distribution advantages of 24V with the application flexibility of 12V, though it adds complexity and cost.

ADLED's Comprehensive Solution for High-Rise Signage

With over 13 years of industrial expertise, ADLED has established itself as a trusted commercial-grade LED module manufacturer specializing in OEM/ODM and wholesale solutions for global signage, light box, and architectural sectors. The company's capabilities directly address the unique challenges of high-rise signage projects.

Manufacturing Excellence

ADLED operates from a 12,000㎡ ISO9001-certified factory backed by 300 skilled employees, 15 professional R&D members, and 30 experienced quality control specialists. The facility features fully automated SMT assembly lines and precision injection molding systems that ensure consistent quality across every production batch.

Product Range for High-Rise Applications

ADLED's LED module product line includes comprehensive options for high-rise signage:

Premium LED Modules:

12V and 24V options with Osram and Samsung LED chips
Up to 200 lumens per watt efficiency
180° beam angle for uniform illumination
IP67/IP68 waterproof ratings for outdoor durability
5-year industrial warranty

High-Efficiency LED Modules:

Constant-current designs that eliminate voltage drop concerns
Optimized for large-format channel letters and light boxes
Premium optical lenses that eradicate hotspots and shadows

High Voltage LED Modules:

110V and 220V AC-powered options for direct mains connection
Eliminate the need for external LED drivers entirely
Ideal for very large installations where even 24V distribution becomes challenging

Certification and Compliance

Every ADLED product carries fully traceable UL, cUL, CE, and RoHS certifications. This comprehensive certification portfolio ensures:

Smooth local building code reviews with zero job-site delays
Compliance with international safety standards for high-rise installations
Eligibility for government and corporate procurement requirements
Confidence for architects, engineers, and building owners

OEM/ODM Customization

ADLED provides comprehensive customization services tailored to high-rise signage requirements:

Custom PCB & Electrical Engineering: Customized voltage options (12V, 24V, constant-voltage, constant-current), circuit protection, and power consumption to meet specific project requirements
Optical Lens Design: Precision optics with beam angles up to 180° for improved uniformity in challenging sign structures
Custom Wire Harness: Customized wire lengths, cable gauges, and connector types to simplify high-rise installation
Injection Molding: Custom module housings tailored to specific applications or brand requirements

Technical Support

ADLED's engineering team provides professional support throughout the project lifecycle:

Module spacing recommendations and CAD-based layout support
Voltage drop calculations and power supply sizing
Application-based product recommendations
Sample availability for testing before mass production

Wholesale and Factory-Direct Pricing

ADLED's wholesale program supports businesses of every scale with:

Transparent volume discounts
Flexible MOQ options
Consolidated shipping across multiple product categories
Stable lead times and predictable production scheduling
Factory-direct pricing that reduces procurement costs

Expert Recommendations: Making the Right Voltage Decision

Based on extensive real-world experience across thousands of high-rise signage projects, here are our expert recommendations for choosing between 12V and 24V LED modules.

The Decision Framework

Use this systematic approach to determine the optimal voltage for your high-rise signage project:

Step 1: Calculate Maximum Cable Run Distance

Measure the distance from the planned power supply location to the farthest LED module
If distance exceeds 30 feet → Strong preference for 24V
If distance is under 15 feet → 12V is viable

Step 2: Calculate Total System Power

Sum the wattage of all LED modules in the installation
If total power exceeds 300W → Strong preference for 24V
If total power is under 150W → Either voltage is viable

Step 3: Evaluate Maintenance Access

If maintenance access is difficult or expensive → Preference for 24V (fewer power supplies to fail)
If maintenance access is easy → Either voltage is viable

Step 4: Consider Sign Size and Complexity

For large-format signs spanning multiple building faces → 24V
For small channel letters and compact signs → 12V

Step 5: Review Local Electrical Codes

Some jurisdictions have specific requirements that may influence voltage choice
Consult with local electrical inspectors early in the design process

General Rule of Thumb

For high-rise signage applications:

Default to 24V unless specific conditions clearly favor 12V
The advantages of 24V in voltage drop management, power efficiency, installation simplicity, and long-term reliability almost always outweigh the marginal benefits of 12V in high-rise applications
Reserve 12V for small channel letters, compact signage, and applications with very short cable runs

Common Mistakes to Avoid

1. Underestimating Cable Run Lengths

Always measure actual cable paths, including bends, connections, and routing through building infrastructure. The straight-line distance is almost always shorter than the actual cable run.

2. Ignoring Voltage Drop Until Installation

Voltage drop problems discovered during installation are expensive to fix. Calculate voltage drop during the design phase and select the appropriate voltage accordingly.

3. Mixing Voltages Without Planning

If using both 12V and 24V modules in the same installation, ensure proper power supply separation and clear labeling to prevent dangerous cross-connections.

4. Choosing Based on Module Price Alone

The per-module price difference between 12V and 24V is typically negligible. Focus on total system cost including power supplies, wiring, installation labor, and long-term maintenance.

5. Skipping Professional Engineering Support

High-rise signage is not a DIY application. Work with experienced manufacturers like ADLED who can provide professional engineering support, voltage drop calculations, and layout optimization.

ADLED's Recommendation

Based on our experience supplying LED solutions to over 5,000 commercial signage projects worldwide, we recommend:

For high-rise signage with cable runs over 30 feet: Choose ADLED's 24V LED modules for optimal performance, efficiency, and reliability
For small channel letters and compact signs: Choose ADLED's 12V LED modules for maximum product selection and installation flexibility
For very large installations or direct AC connection: Consider ADLED's high-voltage LED modules (110V/220V) to eliminate power supplies entirely

ADLED's engineering team is available to provide project-specific recommendations based on your sign dimensions, cable run lengths, power requirements, and local code requirements. Contact our team for a free consultation and customized quotation.

Conclusion: The Clear Path Forward for High-Rise Signage

The choice between 12V and 24V LED modules for high-rise signage is not a matter of opinion — it is a technical decision with measurable impacts on safety, efficiency, cost, and long-term performance.

After examining every critical factor — from voltage drop calculations to total cost of ownership — the evidence consistently points to 24V LED modules as the superior choice for high-rise signage applications with cable runs exceeding 30 feet.

The advantages are clear and quantifiable:

75% reduction in voltage drop for the same wire gauge and distance
10% improvement in total system efficiency reducing energy costs
50% reduction in current minimizing heat generation and extending component lifespan
40-60% fewer power supplies reducing cost, complexity, and failure points
25-40% reduction in installation labor through simplified wiring and centralized power distribution
Lower total cost of ownership across every measurable category

However, 12V LED modules retain important advantages for specific applications:

Small channel letters and compact signage
Very short cable runs under 15 feet
Applications requiring the absolute minimum voltage for safety
Projects leveraging existing 12V infrastructure

The key to success is making an informed, data-driven decision based on your specific project requirements rather than defaulting to convention or initial component price.

ADLED, with over 13 years of factory experience and more than 5,000 successful commercial signage projects worldwide, stands ready to support your high-rise signage project with comprehensive product options, professional engineering support, and factory-direct pricing. Whether your project requires 12V, 24V, or high-voltage LED modules, ADLED delivers the quality, certification, and customization required for demanding commercial applications.

Explore ADLED's complete LED module product range at //www.adledlights.com/led-module-lights.html and contact our engineering team today for a free project consultation and customized quotation.

FAQ

Q1: Is 24V safer than 12V for high-rise signage?

A: Both 12V and 24V LED modules are classified as Safety Extra-Low Voltage (SELV) and are considered extremely safe for human contact. However, 24V systems have a slight safety advantage in high-rise applications because they operate at lower current, which reduces heat generation, arc flash risk, and thermal stress on connections. For outdoor high-rise signage exposed to weather, both voltages are safe when used with properly rated IP67 or IP68 waterproof modules like those offered by ADLED.

Q2: Can I use 12V LED modules for a high-rise building sign?

A: Yes, but only if the cable runs from the power supply to the LED modules are short (typically under 30 feet). For most high-rise signage applications, cable runs exceed this distance, making 24V modules the better choice due to dramatically reduced voltage drop. If you must use 12V modules for a high-rise installation, you will need to distribute multiple power supplies throughout the sign structure to keep cable runs short, which increases cost and complexity.

Q3: How do I calculate voltage drop for my high-rise signage project?

A: Voltage drop is calculated using the formula: Voltage Drop = 2 × Length × Current × Resistance per Unit Length. For a 12V system, maximum acceptable voltage drop is 0.6V (5% of 12V). For a 24V system, maximum acceptable voltage drop is 1.2V (5% of 24V). ADLED's engineering team provides free voltage drop calculations and layout optimization as part of their technical support services. Contact our team with your project specifications for a professional assessment.

Q4: Will 24V LED modules cost more than 12V modules?

A: The per-unit price of 24V LED modules is typically similar to equivalent 12V modules from the same manufacturer. However, the total system cost for 24V is almost always lower for high-rise applications because you need fewer power supplies, less expensive wiring, and less installation labor. When analyzing total cost of ownership including energy savings and reduced maintenance, 24V systems consistently deliver better value for high-rise signage projects.

Q5: Can I mix 12V and 24V LED modules in the same signage installation?

A: Technically yes, but it requires careful planning and separate power supplies for each voltage. You cannot connect 12V and 24V modules to the same power supply. Mixing voltages can be useful in hybrid designs where 24V is used for primary distribution and 12V is used for small channel letters or compact elements. However, this adds complexity and should only be done when specific application requirements clearly justify it. ADLED offers both voltage options and can help you design an optimal hybrid system if needed.

Q6: What certifications should I look for in LED modules for high-rise signage?

A: For high-rise signage, look for LED modules with UL (United States) or cUL (Canada) listing, CE marking (Europe), and RoHS compliance. These certifications ensure that the modules meet international safety and environmental standards and will facilitate smooth building code approvals. ADLED's entire LED module product line carries UL, cUL, CE, and RoHS certifications, ensuring compliance for high-rise installations worldwide.

Q7: How long do LED modules last in high-rise signage applications?

A: High-quality LED modules from manufacturers like ADLED are rated for 50,000 hours or more of operation, which translates to approximately 11-17 years of continuous use. ADLED backs all LED modules with a 5-year industrial warranty. In practice, 24V systems often achieve longer real-world lifespan than 12V systems due to reduced thermal stress, though both voltages from quality manufacturers provide excellent longevity when properly designed and installed.

Q8: Do I need special power supplies for 24V LED modules?

A: Yes, 24V LED modules require 24V DC constant-voltage power supplies (LED drivers). These are widely available from multiple manufacturers. ADLED also offers compatible commercial-grade LED power supplies designed to integrate seamlessly with their LED modules, ensuring optimal performance and reliability. The power supply should be rated for at least 20% more wattage than the total LED module load to ensure stable operation and extend power supply lifespan.

Q9: What IP rating do LED modules need for outdoor high-rise signage?

A: For outdoor high-rise signage exposed to weather, LED modules should have a minimum IP67 rating (dust-tight and protected against temporary immersion). For installations in coastal areas, heavy rain regions, or where modules may be subject to high-pressure washing, IP68 rating (continuous immersion protection) is recommended. ADLED offers both IP67 and IP68 waterproof LED modules with sealed structural design and UV-resistant silicone encapsulation for demanding outdoor environments.

Q10: Can ADLED help me design the LED module layout for my high-rise signage project?

A: Absolutely. ADLED provides comprehensive technical support including professional module spacing recommendations, CAD-based layout support, voltage drop calculations, and power supply sizing. Our engineering team works directly with customers to optimize module positioning for uniform illumination, minimal material usage, and efficient installation. Contact ADLED with your project dimensions and requirements to receive a customized layout recommendation and free quotation.

Summary

The choice between 12V and 24V LED modules for high-rise signage is a critical technical decision that directly impacts safety, efficiency, installation cost, and long-term reliability.

Key Takeaways:

24V LED modules are the superior choice for most high-rise signage applications with cable runs exceeding 30 feet, offering dramatic advantages in voltage drop management, power efficiency, heat reduction, and system simplification.
12V LED modules remain optimal for small channel letters, compact signage, and applications with very short cable runs under 15 feet.
Voltage drop is the decisive technical factor in high-rise signage. 24V systems experience 75% less voltage drop than equivalent 12V systems for the same wire gauge and distance.
Total cost of ownership consistently favors 24V systems for high-rise applications due to fewer power supplies, thinner wiring, reduced installation labor, lower energy consumption, and decreased maintenance requirements.
Both voltages are extremely safe when properly installed with certified, IP-rated modules from reputable manufacturers.
Professional engineering support is essential for high-rise signage projects. Manufacturers like ADLED with 13+ years of experience provide critical technical guidance for optimal system design.
Certification and compliance are non-negotiable for high-rise installations. Ensure LED modules carry UL, cUL, CE, and RoHS certifications to facilitate building code approval.

ADLED stands ready to support your high-rise signage project with comprehensive 12V and 24V LED module options, professional engineering support, full international certifications, and factory-direct pricing. With over 5,000 successful commercial signage projects worldwide, ADLED delivers the quality and expertise required for demanding high-rise applications.

Take Action Today: Visit ADLED's LED Module Product Page to explore the complete product range, or contact our engineering team for a free project consultation and customized quotation tailored to your specific high-rise signage requirements.
