How to Install LED Tape Light Without Visible Hotspots or Shadows
How to Install LED Tape Light Without Visible Hotspots or Shadows?
Have you ever installed LED light strips only to be disappointed by the "dotted" look reflecting off your countertops or ceiling? Those tiny points of light, known as hotspots, are the hallmark of a DIY job. Professionals, however, achieve a seamless, neon-like glow that looks integrated into the architecture. Achieving this look requires a combination of the right hardware and strategic placement.
In this comprehensive guide, we’ll show you exactly how to install LED tape lights like a pro, ensuring a smooth, diffused finish without a single shadow or hotspot in sight.
1. Introduction: The Pro Secret to Seamless Lighting
2. Choosing the Right Hardware (The Pro Setup)
3. Eliminating Hotspots with Diffusion
4. Application-Specific Installation Techniques
5. Step-by-Step Installation Guide
6. Advanced Features for a Modern Finish
7. Conclusion: Maintenance and Longevity
FAQ
2. Choosing the Right Hardware (The Pro Setup)
3. Eliminating Hotspots with Diffusion
4. Application-Specific Installation Techniques
5. Step-by-Step Installation Guide
6. Advanced Features for a Modern Finish
7. Conclusion: Maintenance and Longevity
FAQ
1. Introduction: The Pro Secret to Seamless Lighting
The secret to high-end lighting isn't just the light itself; it’s how you manage the light's distribution. Most standard strips of LED have widely spaced diodes that create harsh, uneven glares on reflective surfaces like granite or polished wood. To achieve a high-end, high-end look, pros focus on two main factors: diode density and the physical distance between the light source and the viewer.
By using the right LED strip cover and high-quality LED tape strips, you can transform a jagged, pixelated light source into a continuous, elegant beam. This technique is often referred to as "dot-free" lighting, and it is the gold standard for modern interior design, whether you are working on a residential LED strip plafond or a commercial project.
2. Choosing the Right Hardware (The Pro Setup)
So, what LED strips do pros use? When a seamless look is the priority, professionals often move away from cheap, low-density options and opt for a chip on board LED strip (COB). Unlike traditional SMD strips, a strip LED COB features hundreds of tiny LEDs packed together under a single phosphor coating. This design naturally eliminates the dark gaps between diodes that cause hotspots, even without a heavy diffuser.
Beyond the strip itself, you need a reliable power and control backbone:
-
Power Supply and Voltage
A high-quality trafo LED strip (transformer) ensures consistent voltage throughout the run. For professional installations, 24V systems are often preferred over LED 12V light strips because they allow for longer runs without voltage drop. Ensure your LED strip power supply matches the total wattage and meets all specific LED strip power requirements to prevent flickering.
-
Dimming and Control
For living areas, a dimmable LED tape light paired with a compatible LED tape dimmer or LED tape light dimmer is essential. This allows you to shift from bright task lighting to a moody, ambient glow. Many pros now integrate a LED strip controller that works with a LED strip remote control or smart home systems for ultimate flexibility.
3. Eliminating Hotspots with Diffusion
Even with a high-density strip, raw diodes can still be harsh on the eyes. This is where a LED strip light channel or LED light strip channel becomes an essential component of the housing LED strip. An aluminum channel for LED strip lighting acts as both a heat sink—drawing heat away to prolong the life of the LEDs—and a mounting base for a LED strip cover diffuser.
The choice of cover is critical:
-
Frosted and Milky Covers
For the best results, use a LED strip cover frosted or a plexiglass LED diffuser strip. The thicker and more "milky" the LED light strip diffuser or LED tape light diffuser, the better it scatters the light to create that solid "bar" effect.
-
Silicone Options
If you are working with tight curves, circular architectural features, or outdoor elements, a silicone cover for LED strip light or silicone cover LED strip lights is the way to go. These provide both diffusion and high-level protection for outdoor LED strip lights and LED exterior strip lights, ensuring they survive the elements as LED stripe utendørs.
4. Application-Specific Installation Techniques
Every space requires a unique strategy to hide the light source while maximizing the glow:
-
Kitchens
For LED stripe kjøkkenbenk (under-cabinet) lighting, avoid placing the strip at the very back of the cabinet. Instead, mount the LED strip light aluminium profile toward the front of the cabinet, facing back toward the backsplash. This creates a more even wash of light and prevents the diodes from reflecting directly into your eyes.
-
Ceilings and Coves
To create a "floating" ceiling effect, use LED strip lights for ceiling or kitchen ceiling LED strip lights. Direct the light upward into a LED tape light channel or aluminium coving for LED strip so the ceiling itself becomes a massive secondary diffuser. This is a classic LED soffitto strip LED controsoffitto technique.
-
Retail and Jewelry
In high-end retail, LED strip lights for jewelry showcase use small LED light strips hidden within a specialized LED strip casing. The goal here is to make diamonds and metals sparkle without the customer seeing the source of the light.
5. Step-by-Step Installation Guide
Ready to start your project? Follow these steps for a flawless LED tape light installation that looks like it was done by a master electrician:
1. Measure and Plan
Determine the length of your run. Use LED light strips trimmable or cuttable LED strip lighting to fit your space perfectly. Understanding how to cut LED strip lights correctly—only at the marked copper points—is the difference between a working light and a dead circuit.

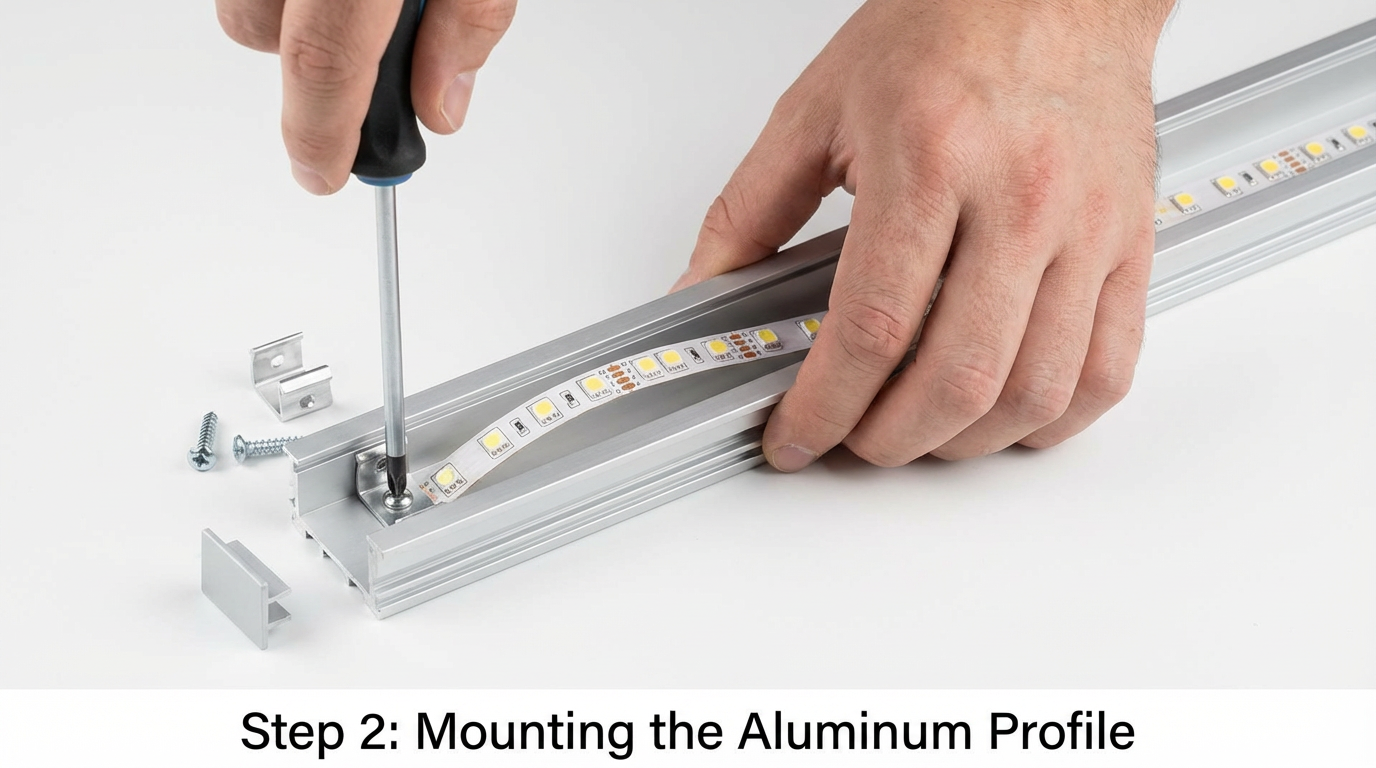

2. Mount the Profile
Secure your aluminum extrusion for LED strips, LED tape profile, or LED strip extrusion using mounting clips or countersunk screws. For an ultra-sleek look, consider a recess mount LED tape light channel which sits flush with the surface.

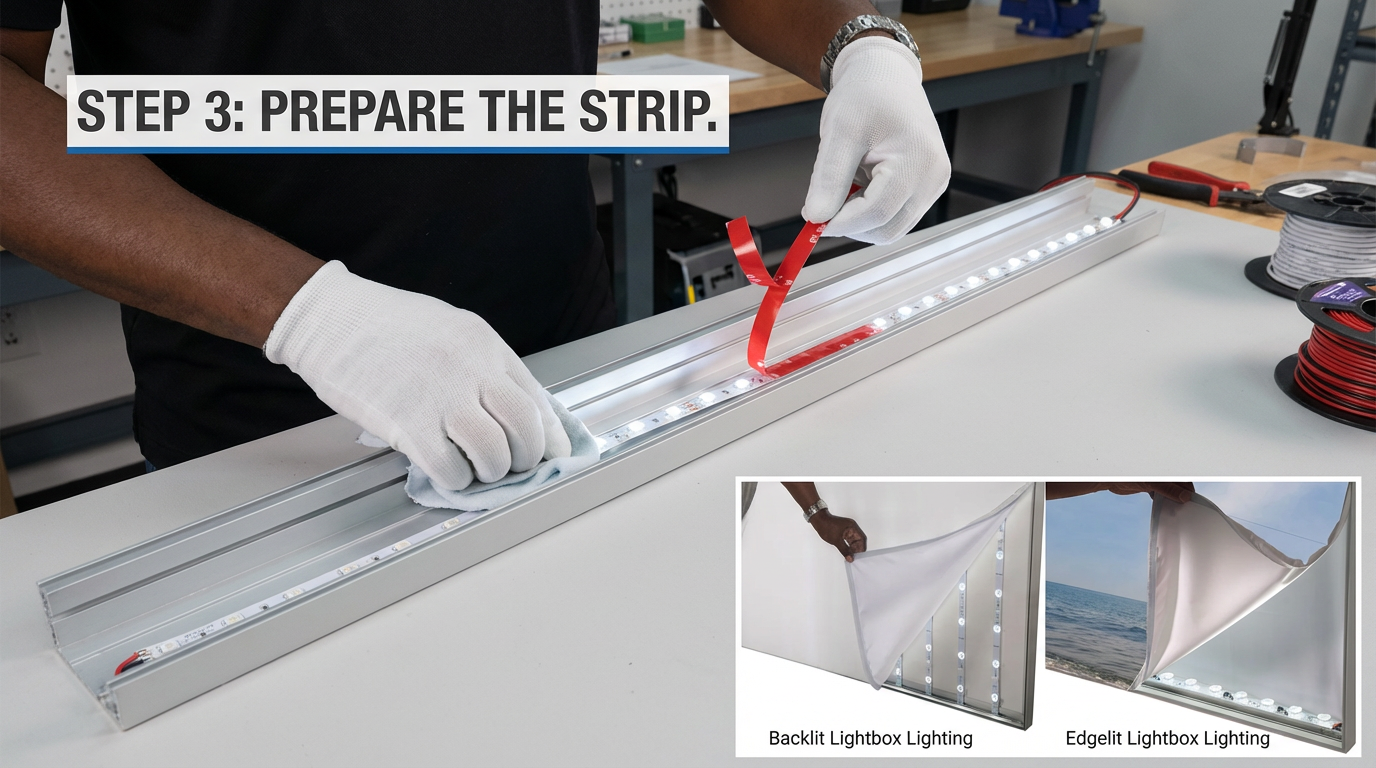

3. Prepare the LED Strip
Clean the channel thoroughly. Use the adhesive back on stick on LED strip lights or stick on LED light strips to press the strip firmly into the aluminum channel LED strip. The metal will help dissipate heat, ensuring your LED 5m strip lasts for its full rated lifespan.

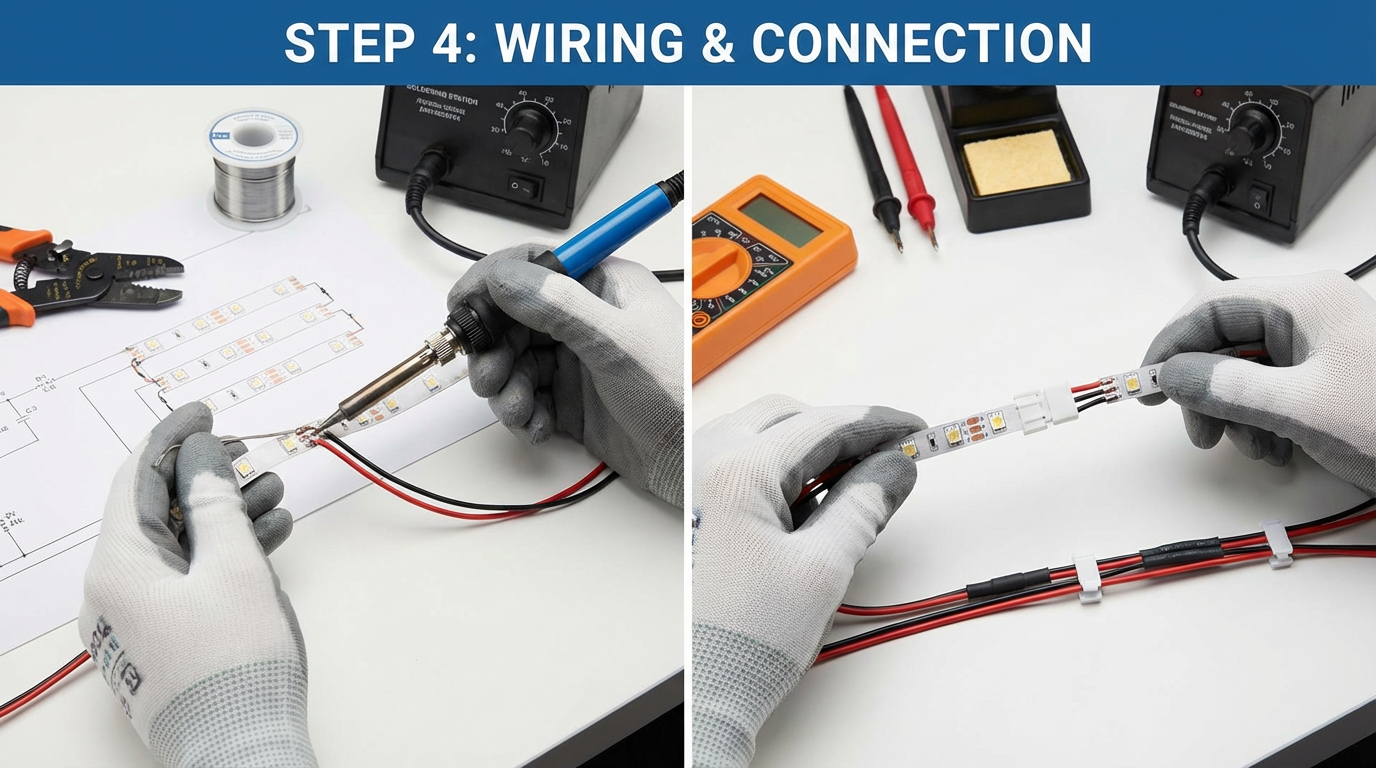

4. Wiring and Connection
Learn how to connect LED strips or how to connect LED light strips using either LED strip light connectors or LED strip connectors. For the most professional, low-profile finish, soldering the wires directly to the tape is often preferred over bulky connectors.

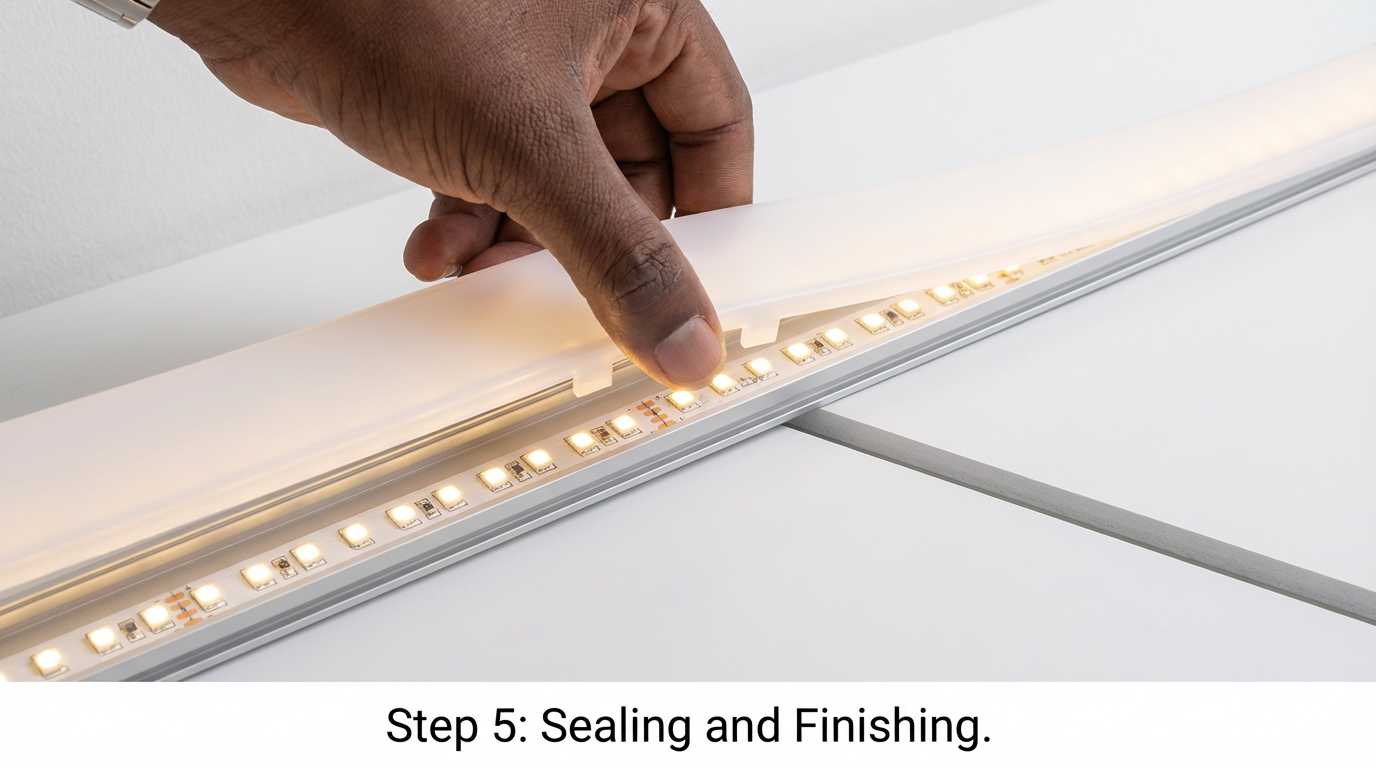

5. Seal it Up
Snap on your LED strip light plastic cover or LED tape diffuser. For outdoor projects, ensure you use a silicone cover LED strip and properly seal the end caps to prevent moisture ingress.
6. Advanced Features for a Modern Finish
To take your project to the next level, consider adding automation and specialized lighting effects. A motion sensor LED strip is a fantastic addition to hallways, stairs, or under-bed lighting, providing hands-free safety at night. For those who want a truly futuristic or festive look, magic strip LED (also known as programmable LED light strips) can create flowing color chases and dynamic patterns.
If you are working on a smaller scale, such as behind a computer monitor or inside a small cabinet, LED strip lights with usb offer a convenient way to get power without needing a large trafo LED strip. For the ultimate convenience, ensure your setup includes a LED strip lights with remote so you can change the mood of the room without leaving your seat.
7. Conclusion: Maintenance and Longevity
A professional install is an investment in your property's value and atmosphere. Using an aluminum profile for LED strip lights or aluminum channels for LED strip lights doesn't just look good—it protects the delicate circuitry from dust and physical damage.
Regularly wipe down your LED strip covers and LED tape light covers (such as tapeguard LED tape light covers) with a microfiber cloth to maintain peak brightness. By matching the correct LED strip power requirements with top rated LED strip lights and a solid LED strip wiring plan, your installation will remain vibrant and hotspot-free for years to come.
FAQ
Can you cut LED strips to any length?
You can cut them, but only at specific intervals. Look for the copper pads and scissor icons. Knowing how to fit LED strip lights properly involves planning your layout around these predetermined cut points.
What is the benefit of a neon LED strip?
A neon LED strip or neon LED strip lights use a very thick, high-quality silicone cover LED strip to provide a completely diffused, dot-free look. They are perfect for decorative signage or when the light strip itself will be visible to the eye.
How do I handle corners with LED tape flexible strip lighting?
You have two main options: use flexible LED strip light connectors that bridge the gap with a small wire, or use specially designed 90-degree LED light strip connectors. Never fold the LED tape itself at a sharp angle, as this can damage the internal traces.
What is the difference between LED verlichting strip and standard LED tape?
"LED verlichting strip" is the Dutch term for LED lighting strips. Whether you are searching for LED tape flexible strip lighting in the US or LED stripe utendørs in Norway, the core technology remains the same: high-quality diodes, proper power, and effective diffusion are the keys to success.
Do I need an aluminum channel for LED strip light if I'm using COB LED strips?
While COB LED strips have fewer hotspots, an aluminum channel is still highly recommended. The aluminum channel holder for LED strip acts as a heat sink, preventing the LEDs from overheating, which is the leading cause of premature failure in super bright LED tape light.
