Silicone vs. PVC Neon Flex: Which Material Survives Extreme UV and Temperature Fluctuations?

• 1. The Core Contenders: Understanding the Materials at a Molecular Level
• 2. The Ultimate Test: UV Resistance and Sunlight Degradation
• 3. Thermal Extremes: Surviving Brutal Temperature Fluctuations
• 4. Environmental Stressors: Moisture, Salt, and Chemical Resistance
• 5. Spotlight on Industry Leaders: Why ADLED Lights Dominates the Market
• 6. Installation Best Practices for Extreme Weather Survival
• 7. Cost vs. Value: Analyzing the Long-Term ROI for Contractors
• 8. How to Choose the Right Neon Flex for Your Specific Project
• Conclusion
• FAQ

1. The Core Contenders: Understanding the Materials at a Molecular Level

Polyvinyl Chloride (PVC) Neon Flex: The Chemistry of Compromise

• Chemical Base: PVC is a widely used synthetic plastic polymer derived from petroleum and salt. In its natural, unmodified state, it is a rigid, brittle plastic.
• The Plasticizer Problem: To make PVC flexible enough to be bent into neon shapes, manufacturers must inject it with high volumes of chemical plasticizers (typically phthalates). These plasticizers act as a molecular lubricant, forcing the polymer chains apart to allow movement.
• Manufacturing Process: PVC neon flex is typically produced through high-speed, high-temperature extrusion. The LED strip is pulled through a molten PVC bath, shaped, and rapidly cooled.
• Key Characteristic: Highly cost-effective and easy to mass-produce, but its flexibility is chemically "borrowed" and fundamentally unstable over time.

Silicone (Polydimethylsiloxane) Neon Flex: The Chemistry of Stability

• Chemical Base: Silicone is a highly stable, synthetic polymer composed of alternating silicon and oxygen atoms (siloxane bonds), with organic side groups attached to the silicon atoms.
• Inherent Flexibility: Unlike PVC, silicone does not require the addition of chemical plasticizers to remain flexible. Its molecular structure naturally allows for chain movement and elasticity.
• Manufacturing Process: High-end silicone neon flex involves precision molding or specialized low-temperature extrusion, followed by a secondary curing process (often platinum-cured) to ensure complete cross-linking of the polymer chains.
• Key Characteristic: Higher initial raw material and manufacturing costs, but offers unparalleled chemical, thermal, and UV stability.

Summary of Material Differences

• PVC: Relies on volatile additives for flexibility; highly prone to additive migration, leaching, and degradation over time.
• Silicone: Inherently flexible; no plasticizers to leach out, ensuring permanent elasticity.
• Surface Feel: PVC often feels slightly tacky, greasy, or sticky to the touch; Silicone feels smooth, dry, premium, and resistant to dust adhesion.

2. The Ultimate Test: UV Resistance and Sunlight Degradation

The Physics of UV Radiation on Polymers

• Photon Energy: UV rays carry high energy. When these photons strike a polymer, they can break the chemical bonds holding the material together if the photon energy exceeds the bond dissociation energy.
• Photo-oxidation: UV exposure triggers a reaction with oxygen in the air, creating free radicals that aggressively degrade the material from the outside in, leading to chain scission (the breaking of polymer chains).

PVC’s Battle Against the Sun: The Inevitable Yellowing Effect

• Dehydrochlorination: When PVC absorbs UV energy, it undergoes a chemical reaction that releases hydrogen chloride gas.
• Visual Degradation: This reaction creates conjugated double bonds within the polymer chain. These specific chemical structures absorb visible light, causing the material to turn a deep, ugly yellow, and eventually brown.
• Chalking and Cracking: As the surface degrades, it loses its vital plasticizers to evaporation and UV breakdown. The surface becomes chalky, brittle, and eventually develops micro-cracks. Once cracked, moisture enters, destroying the internal LEDs.
• The Stabilizer Band-Aid: Manufacturers add UV stabilizers (like Hindered Amine Light Stabilizers - HALS) to PVC. However, these stabilizers are sacrificial. Once they are depleted (usually within 12 to 18 months in direct, harsh sunlight), the rapid, irreversible degradation begins.

Silicone’s Inherent UV Shield: Why It Remains Crystal Clear

• Bond Stability: The Silicon-Oxygen (Si-O) bond in silicone is incredibly strong (bond energy of roughly 452 kJ/mol). It is significantly stronger than the Carbon-Carbon and Carbon-Chlorine bonds in PVC, making it highly resistant to photon breakdown.
• UV Transparency: High-quality silicone does not absorb the destructive wavelengths of UV light. The UV rays simply pass through the material without breaking the molecular chains.
• No Yellowing: Premium, high-transparency silicone glue will remain crystal clear for years, even in desert-level sunlight with extreme UV indices.
• No Chalking: Because the molecular structure remains intact and no plasticizers are present to evaporate, the surface does not chalk, crack, or become brittle.

Summary of UV Performance

• PVC: Will yellow, chalk, and crack within 1-2 years in extreme UV. Requires constant, costly replacement.
• Silicone: Remains clear, flexible, and structurally sound indefinitely. Inherently immune to UV degradation.

3. Thermal Extremes: Surviving Brutal Temperature Fluctuations

The Mechanics of Thermal Expansion and Contraction

• Thermal Cycling: Materials expand when heated and contract when cooled. Repeated daily and seasonal cycling causes immense mechanical stress on the material and the internal solder joints.
• Glass Transition Temperature (Tg): The critical temperature at which a polymer transitions from a hard, glassy, brittle state to a soft, rubbery, flexible state.
• Coefficient of Linear Thermal Expansion (CLTE): A metric that defines how much a material expands or contracts per degree of temperature change.

PVC in the Cold and Heat: The Brittleness and Sagging Thresholds

• High Tg: PVC has a relatively high glass transition temperature (around 80°C to 85°C, but its flexibility drops drastically much earlier).
• Loss of Flexibility in Cold: In freezing temperatures (below -5°C / 23°F), the plasticizers in PVC become sluggish and less effective. The material stiffens significantly, losing its "neon" flexibility.
• Impact Failure: If a PVC neon flex is struck, bent, or even subjected to high wind loads while frozen, it will snap or crack instantly.
• Contraction Issues: PVC has a high CLTE. In the cold, it contracts violently, which can pull the neon flex out of its mounting clips, tear the end-seals apart, or snap the internal copper circuit traces.
• Softening in Heat: PVC begins to soften at relatively low temperatures (around 60°C / 140°F). When mounted vertically or horizontally without rigid support, PVC neon flex will sag, warp, and droop under its own weight in high heat.
• Plasticizer Migration: High heat accelerates the migration of plasticizers to the surface. This makes the PVC sticky, attracting dust and dirt, which further reduces light output and accelerates UV degradation.

Silicone’s Wide Operating Range: From Arctic Freezes to Desert Heat

• Extreme Tg: Silicone has an incredibly low glass transition temperature of approximately -125°C (-193°F).
• Unmatched Cold Performance: Even at -40°C or -50°C, silicone remains as flexible and elastic as it is at room temperature. It will not crack, snap, or lose its elasticity, making it perfect for winter landscapes and cold storage lighting.
• High Heat Resistance: Silicone can continuously operate in temperatures up to 200°C (392°F) without melting, warping, or degrading.
• Thermal Stability: While silicone does expand and contract, its structural integrity and mechanical properties remain completely uncompromised across the entire temperature spectrum.

Summary of Temperature Performance

• PVC: Fails catastrophically in extreme cold (becomes brittle and snaps) and extreme heat (warps, sags, and becomes sticky). High thermal expansion causes mechanical and seal failures.
• Silicone: Thrives in extreme temperatures. Remains perfectly flexible in deep freezes and structurally stable in blistering heat.

4. Environmental Stressors: Moisture, Salt, and Chemical Resistance

IP Ratings and the Reality of Waterproofing

• The IP67/IP68 Standard: For outdoor use, neon flex must be at least IP67 (dust tight and protected against temporary immersion) or IP68 (continuous immersion).
• PVC Vulnerability: Because PVC becomes brittle in cold and soft in heat, the end-caps and seals are the first to fail. The high thermal contraction of PVC literally pulls the seals away from the jacket. Once the seal breaks, capillary action draws water into the tube, short-circuiting the LEDs.
• Silicone Superiority: Silicone maintains its seal across temperature swings. Furthermore, high-end silicone neon flexes are often poured with pure silicone gel, creating a seamless, waterproof barrier that expands and contracts at the exact same rate as the outer jacket, never breaking the seal.

Salt Spray Resistance in Coastal and Marine Environments

• Corrosive Environments: Coastal cities and marine applications expose lighting to atomized salt water. Salt is highly corrosive and accelerates the degradation of plastics and metals.
• PVC Failure: Salt accelerates the leaching of plasticizers from PVC, causing rapid surface degradation, crazing, and cracking.
• Silicone Resistance: Silicone is inherently resistant to salt spray, ozone, and oxidation. It is widely used in marine and aerospace applications because it does not react with salt water or salty air.

Chemical Resistance in Urban and Industrial Zones

• Acid Rain and Smog: Urban environments expose lighting to acidic pollutants, ozone, vehicle exhaust, and industrial fallout.
• Material Reaction: PVC is susceptible to chemical attack from certain solvents, strong acids, and alkalis found in urban pollution. Silicone is virtually inert. It resists acids, alkalis, and most chemical solvents, making it the only viable choice for harsh industrial environments or heavily polluted urban centers.

5. Spotlight on Industry Leaders: Why ADLED Lights Dominates the Market

The ADLED Lights Manufacturing Philosophy

• High-End Silicone Glue: ADLED Lights utilizes premium, environmentally friendly silicone materials. This is not cheap, plasticizer-heavy rubber. Their high-end silicone glue guarantees the UV resistance, thermal stability, and high light transmittance required for extreme climates.
• Seamless Lighting & Optical Design: The highly light-transmitting silicone, combined with professional optical design, ensures uniform distribution of light. This provides a soft, comfortable visual experience with zero dark spots or LED dotting, crucial for high-end architectural projects.
• Comprehensive IP67/IP68 Waterproofing: Their LED neon flex is engineered for both indoor and outdoor lighting, featuring seamless waterproofing that survives heavy rain, snow, and high humidity.
• Robust Warranty: Backing their manufacturing confidence and top-tier raw materials, ADLED Lights offers a robust 3 to 5-year warranty on their silicone neon flex lines.

Comprehensive Product Range for Extreme Environments

①Classification by Lighting Direction

• Top View LED Neon Flex Light: Ideal for standard outline lighting, architectural coves, and channel mounting.

• Side-Emitting LED Neon Flex Tube: Perfect for tight corners, horizontal channel installations, and under-cabinet applications where the light needs to throw sideways.

• 360° Emitting Flexible Neon Light: Excellent for custom poles, sculptures, and applications requiring visibility from all angles. Top models include the Neon Strip Lights 360° D22 24V 240LEDs/M SMD2835 and the Neon LED Strip Flex Light 360° D25 24V 240LEDs/M SMD2835, offering massive brightness and true 360-degree illumination.

②Classification by LED Technology (The Engine Inside)

• SMD2835 Series: High efficiency, high brightness, and excellent thermal management. ADLED Lights offers this in various form factors, including the ultra-slim Neon LED Strip Lights 1010 24V 126LEDs/M, the Neon Light Strips 1212 24V 126LEDs/M, the Neon LED Strip Light 1616 24V 126LEDs/M, and the standard Neon Lighting Strip 2020 24V 126LEDs/M.
• COB (Chip-on-Board) Series: COB technology provides an incredibly smooth, continuous linear light with zero hotspots, perfect for premium signage and close-up viewing. Flagship models include the LED Neon Flex COB Strip 1204 24V 480LEDs/M, the Neon Flex LED Light 1003C 24V 480LEDs/M COB, and the Neon Flex COB LED Light Strip Tube 1003A 24V 480LEDs/M.
• Mini Flex Series: For ultra-tight bending radius applications and intricate custom shapes, they offer the LED Strip Lights Neon Mini Flex 0804 24V 160LEDs/M SMD2835 and the Neon LED Stripe 0606 Mini 24V 240LEDs/M SMD2219.

③Classification by Power Supply Method

• Low Voltage (12V and 24V): Safe, highly customizable, and allows for precise cutting intervals. Ideal for most architectural and signage applications.
• High Voltage (110V and 220V): Designed for extremely long-run architectural outlining without the need for multiple power injectors, minimizing voltage drop over hundreds of meters.

Customization and Quality Assurance

• Massive Size Range: ADLED Lights supports widths ranging from ultra-slim 3mm for delicate details to wide 40mm for massive architectural wash lighting.
• Color Versatility: Available in single colors (white, red, green, blue, yellow, orange, ice blue, pink, purple) as well as dynamic RGB and RGBW series for vibrant, programmable facades.
• Tube Colors: Offered in both milky white (for maximum brightness) and black (for a stealthy, invisible daytime aesthetic).
• OEM & ODM Services: Whether you need a specific silicone hardness, a custom PCB width, or specialized packaging, ADLED Lights provides tailored solutions. They support lighting project contractors, wholesalers, retailers, and distributors with fast delivery and worry-free after-sales service.
• Certifications: All products pass rigorous domestic and international certifications, including CE and RoHS, ensuring safety, environmental compliance, and premium quality.

6. Installation Best Practices for Extreme Weather Survival

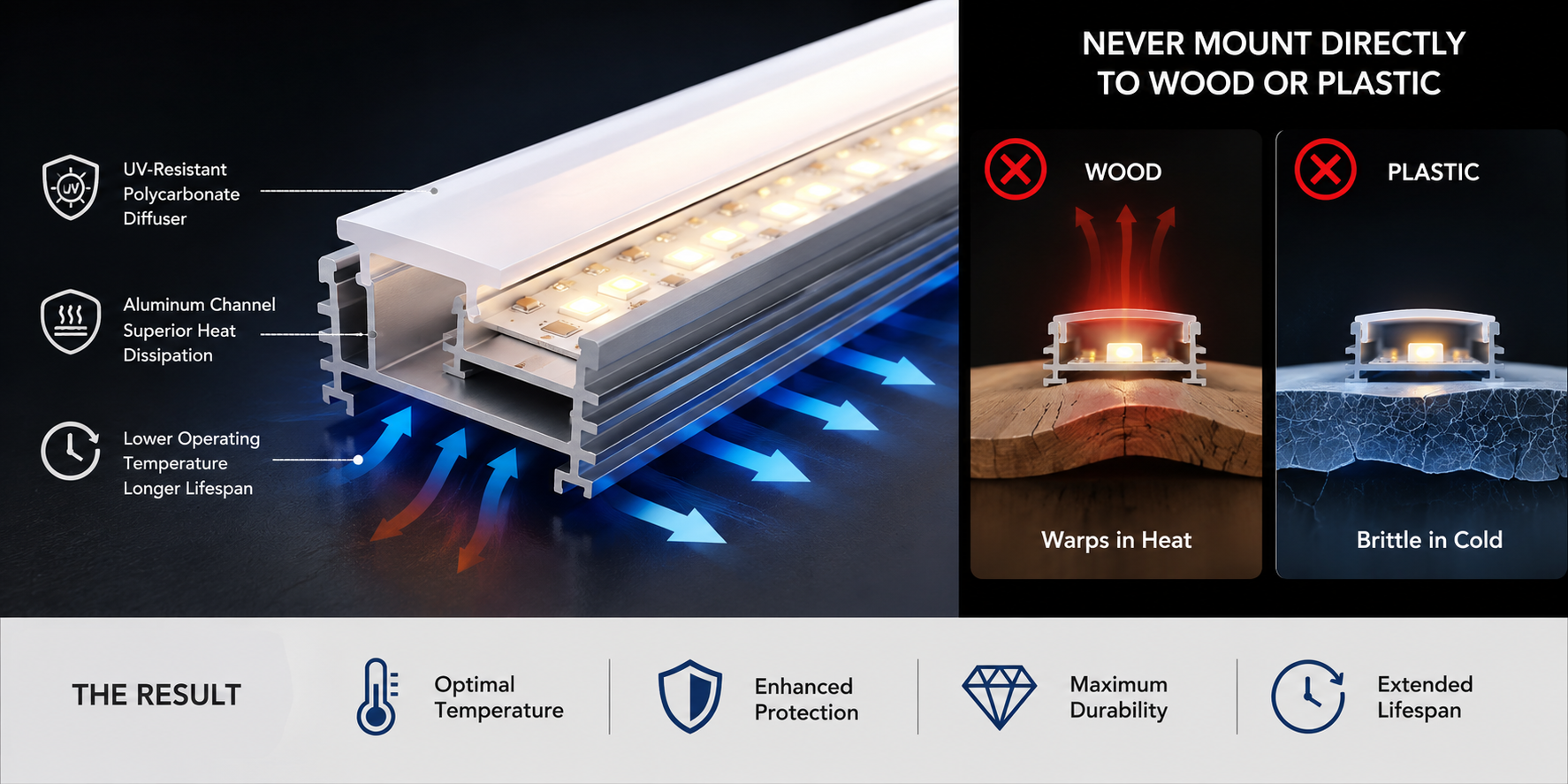

The Critical Role of Aluminum Profiles and Heat Sinking

• Never Mount Directly to Wood or Plastic: In extreme heat, the mounting surface can warp. In extreme cold, it can become brittle.
• Use Aluminum Channels: Aluminum is dimensionally stable across extreme temperatures. More importantly, it acts as a massive heat sink, drawing heat away from the LEDs and the silicone jacket. This significantly lowers the operating temperature, extending the lifespan of both the LED chip and the silicone jacket.
• Diffusers: Pair the aluminum channel with a UV-resistant polycarbonate diffuser for an extra layer of protection against physical impact, vandalism, and UV rays.

Managing Thermal Expansion During Installation

• Leave Expansion Gaps: Even though silicone is stable, the internal copper FPC (Flexible Printed Circuit) board will expand and contract with temperature changes.
• Do Not Pull Taut: When installing long runs of neon flex, never pull the material tight. Leave a slight slack or "belly" in the line to allow for contraction in the winter without tearing the solder joints or pulling the strip out of the channel.
• Proper Clipping: Use the manufacturer’s recommended mounting clips. Do not over-tighten screws, which can pinch, cut, or stress the silicone jacket, creating a weak point for water ingress.

Proper Sealing, End-Caps, and Waterproofing Techniques

• The Weakest Point: 90% of waterproof failures happen at the cut ends, not in the middle of the strip.
• Use High-Quality End Caps: Never use cheap, rigid plastic end caps. Use silicone end caps that match the flexibility and thermal expansion rate of the main tube.
• Sealant Selection: Use a high-grade, neutral-cure silicone sealant to glue the end caps. Acid-cure silicones release acetic acid as they cure, which can corrode the internal copper traces and LED resistors over time. Ensure the seal is completely filled with no air pockets.

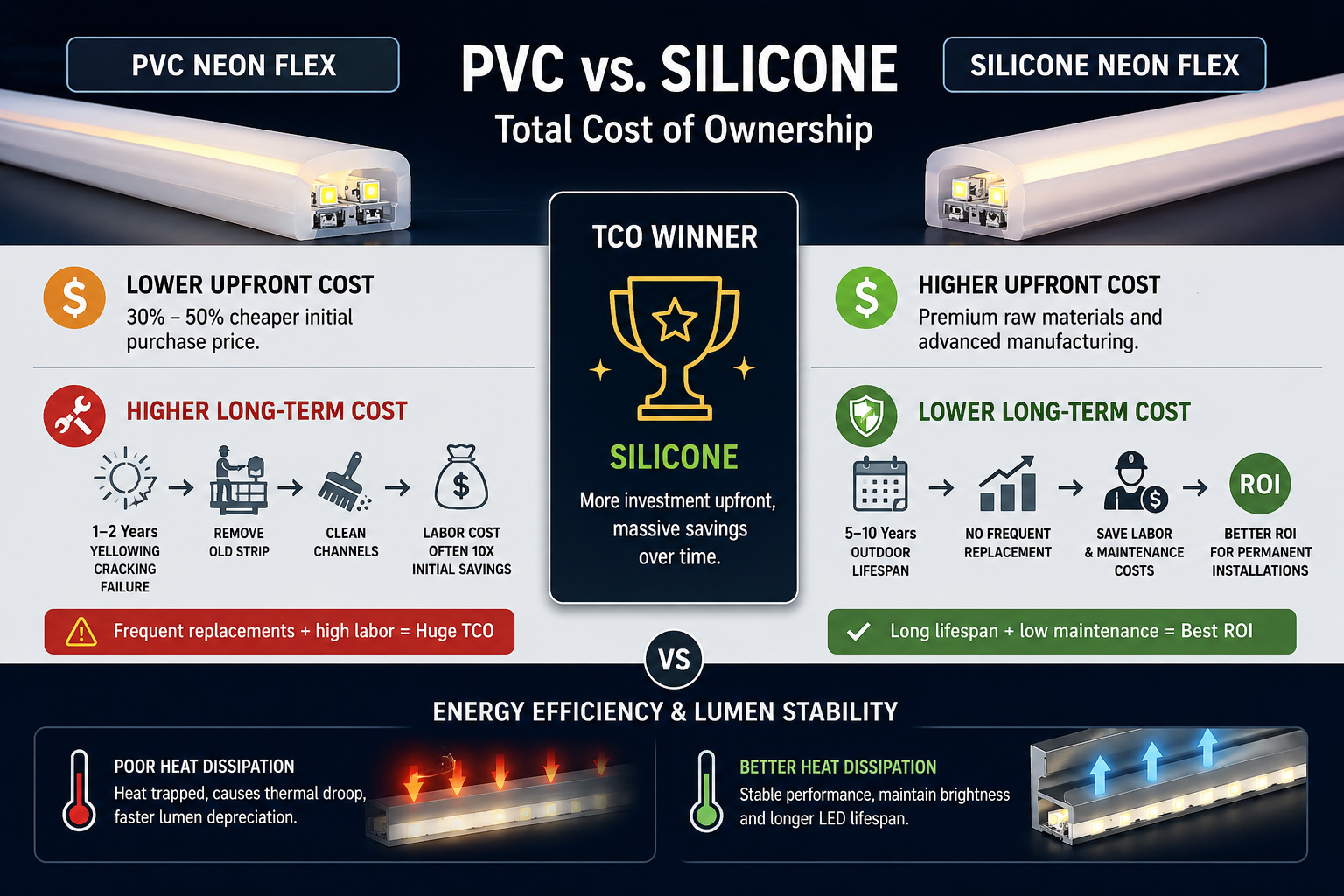

7. Cost vs. Value: Analyzing the Long-Term ROI for Contractors

Initial Purchase Price vs. Total Cost of Ownership (TCO)

• The PVC Illusion: PVC neon flex is typically 30% to 50% cheaper upfront than silicone neon flex. For a temporary indoor event or a short-term retail display, this makes financial sense.
• The Silicone Reality: Silicone requires expensive raw materials, platinum catalysts, and slower, more precise manufacturing processes. The upfront cost is undeniably higher.

Maintenance, Labor, and Replacement Expenses

• The PVC Replacement Cycle: In an extreme outdoor environment (high UV, high heat, freezing winters), PVC will yellow, crack, and fail within 12 to 24 months.
  • Cost Calculation: You must pay for the new PVC strips, plus the massive labor cost to hire a technician to climb a lift, remove the old, brittle strips, clean the channels, and install the new ones. This labor cost often dwarfs the initial savings of the PVC by a factor of ten.
• The Silicone Longevity: High-end silicone (like that from ADLED Lights) will last 5 to 10 years outdoors without degrading.
  • ROI Calculation: You pay more on day one, but you eliminate replacement costs and maintenance labor for half a decade. The ROI heavily favors silicone for any permanent outdoor installation.

Energy Efficiency and Lumen Depreciation

• Thermal Impact on LEDs: Because PVC softens in heat and lacks thermal conductivity, it can trap heat against the LED chip if not mounted properly. This causes "thermal droop" (where the LED loses brightness) and accelerates lumen depreciation. Silicone’s higher thermal stability, especially when paired with an aluminum channel, helps maintain a better operating environment for the LEDs, ensuring the lumen output remains stable and bright over the years.

8. How to Choose the Right Neon Flex for Your Specific Project

The Decision Matrix: When to Choose PVC

• The project is strictly indoor (away from direct sunlight, UV rays, and temperature extremes).
• It is a temporary installation (e.g., a trade show booth, a holiday display, a short-term retail promotion).
• The budget is strictly capped, and the client fully understands and accepts that the product will need replacement in 1-2 years.
• The application is in a mild, deeply shaded outdoor area with minimal temperature swings and zero direct sunlight.

The Decision Matrix: When to Choose Silicone

• The project is outdoor and exposed to direct sunlight (building facades, outdoor commercial signage, landscape lighting, pool surrounds).
• The environment experiences extreme temperatures (desert climates, freezing northern winters, coastal humidity).
• The installation is permanent and accessing the area for maintenance is difficult, dangerous, or expensive (e.g., high-rise buildings, large monuments, bridge underpasses).
• You require a premium, high-end aesthetic where the material must remain crystal clear and not yellow over time.
• You need to bend the light into tight, complex shapes without the material kinking, cracking, or showing white stress marks.

Critical Questions to Ask Your Supplier

1. "Is this 100% pure silicone, or a PVC/Silicone co-extrusion?" (Some factories extrude a paper-thin layer of silicone over a PVC core to cut costs. This will still eventually fail as the PVC core degrades).
2. "What is the exact operating temperature range of your silicone?" (It should be at least -40°C to +80°C, ideally wider).
3. "Do you use a platinum-curing process for the silicone?" (Platinum curing ensures higher clarity, better UV resistance, and no toxic byproducts).
4. "What is the specific warranty for outdoor use?" (A confident factory like ADLED Lights will offer 3 to 5 years for outdoor silicone applications).
5. "Can you provide the CE, RoHS, and IP67/IP68 third-party test reports?" (Always verify the certifications with actual documentation).

Conclusion: The Verdict on Extreme Weather Survival

FAQ

1. Can I use PVC neon flex outdoors if I paint it with a UV protectant spray?

2. How can I tell the difference between Silicone and PVC neon flex before buying?

• The Touch Test: PVC often feels slightly greasy or tacky. Silicone feels smooth, dry, and almost like a premium, high-grade rubber.
• The Fold Test: Fold a small piece of the material tightly. PVC will often show a white stress mark (creasing) at the fold. Silicone will fold cleanly without leaving a white mark.
• The Burn Test (Destructive): If you burn a small piece, PVC will smell like chlorine/chemicals and produce black, sooty smoke. Silicone will burn with a white flame, produce very little smoke, and leave behind a white, powdery ash (silica).

3. Does the color of the neon flex jacket affect its UV resistance?

4. Is COB neon flex better than SMD neon flex for extreme weather?

5. What is the minimum bending radius for silicone neon flex in cold weather?

6. Why do some factories claim their PVC is "UV Resistant"?

7. Can I cut silicone neon flex anywhere?

8. How do I connect two lengths of silicone neon flex for a long outdoor run?

9. Does ADLED Lights provide custom shapes for outdoor signs?

10. What happens if water gets inside a silicone neon flex?
