The Ultimate Guide to Waterproof LED Strip Lights
The Ultimate Guide to Waterproof LED Strip Lights
Imagine illuminating your garden with a soft, inviting glow, or adding vibrant accents to your bathroom without a second thought about water damage. This is the power of waterproof LED strip lights! These versatile lighting solutions open up a world of possibilities, extending the beauty and functionality of LED lighting to environments where moisture is a concern. In this comprehensive guide, we'll dive deep into the world of waterproof LED strip lights, exploring why you need them, the different types available, how to choose and install them, and the exciting applications they unlock. Get ready to make a splash with your lighting!
1. Why Do You Need Waterproof LED Strip Lights?
2. What is an IP Rating?
3. When Do We Need Waterproof LED Strip Lights?
4. Common Types of Waterproof LED Strip Lights
5. Confusion Between IP54 and IP65 LED Strips
6. Common Materials Used to Make Waterproof LED Strip Lights
7. Comparison of Hollow vs. Solid Silicone Extrusion Waterproof LED Strip Lights
8. Advantages and Disadvantages of Waterproof LED Strip Lights
9. How to Choose the Right Waterproof LED Strip Lights
10. Installation Tips for Waterproof LED Strip Lights
11. Common Applications for Waterproof LED Strip Lights
12. Maintenance and Precautions for Waterproof LED Strip Lights
13. Waterproof LED Tape Lights FAQ
14. Conclusion
1. Why Do You Need Waterproof LED Strip Lights?
While standard LED strip lights are fantastic for dry indoor applications, they are vulnerable to moisture. Water can cause short circuits, corrosion, and ultimately, the failure of the delicate electronic components. This is where waterproof LED strip lights come in. Their specially designed protective layers shield the LEDs and circuitry from water ingress, allowing you to confidently use them in:
- Outdoor Areas: Gardens, patios, decks, pathways, under eaves, and architectural lighting.
-
Wet Indoor Environments: Bathrooms, kitchens (especially under cabinets near sinks), laundry rooms, and around aquariums.
- Commercial Settings: Restaurants (bar areas, outdoor seating), spas, swimming pools, and marine applications.
- Vehicles: Boats, RVs, and even some car exterior lighting.
Essentially, if there's a chance of water exposure, opting for waterproof LED strip lights is a must to ensure longevity, safety, and reliable performance.
2. What is an IP Rating?
The Ingress Protection (IP) rating is an international standard (IEC 60529) that classifies the degree of protection provided by electrical enclosures against the intrusion of solid objects (including dust) and liquids (especially water). It consists of two digits:
The first digit (0-6 or X): Indicates the level of protection against solid objects.
The second digit (0-9 or X): Indicates the level of protection against liquids.
For waterproof LED strip lights, we are primarily concerned with the second digit. Here's a breakdown of what the common second digits mean:
0: No protection against liquids.
1: Protection against vertically falling water drops.
2: Protection against vertically falling water drops when the enclosure is tilted at an angle of 15 degrees.
3: Protection against spraying water at an angle of up to 60 degrees from the vertical.
4: Protection against splashing water from any direction.
5: Protection against water jets from any direction.
6: Protection against powerful water jets.
7: Protection against the effects of temporary immersion in water (up to 1 meter depth).
8: Protection against the effects of continuous immersion in water (beyond 1 meter depth, specified by the manufacturer).
9: Protection against powerful high-temperature water jets.
3. When Do We Need Waterproof LED Strip Lights?
As highlighted in section 1, you'll need waterproof LED strip lights in any environment where they might come into contact with water or moisture. To reiterate, this includes:
- Outdoor Lighting: Rain, snow, and general humidity necessitate a waterproof rating.
- Bathroom and Kitchen Lighting: Splashes from sinks, showers, and tubs are common.
- Aquarium Lighting: Accidental splashes or even submersion might occur.
- Marine and Boat Lighting: Exposure to saltwater and constant moisture.
- Pool and Spa Lighting: Submersion is often required for aesthetic and safety purposes.
- Vehicle Exterior Lighting: Exposure to rain, car washes, and road spray.
Choosing the correct IP rating for your specific application is crucial for ensuring the longevity and safety of your LED strip lights.
4. Common Types of Waterproof LED Strip Lights
Waterproof LED strip lights employ various methods to protect their delicate components. Here are some common types, often categorized by their IP rating:
-
IP20 Non-Waterproof LED Strip Lights
These LED strips have no specific protection against liquids and are suitable for dry indoor environments only.
-
IP54 Waterproof LED Strip Lights
A thin layer of polyurethane (PU) glue is applied over the surface of the LED strip, offering protection against splashes of water from any direction. Suitable for areas with occasional moisture, like kitchen backsplashes or slightly damp environments.
-
IP65 Silicone Glue Waterproof LED Strip Lights
A layer of silicone glue is applied over the surface, providing protection against water jets from any direction. A more robust option than IP54, suitable for outdoor areas where rain or washing down might occur.
-
IP65H Heatshrink Tube Waterproof LED Strip Lights
The LED strip light is encased in a heat-shrinkable tube, often with sealed ends. This offers good protection against water jets and is a cost-effective option for certain applications. The "H" often indicates a specific type or brand of heat shrink.
-
IP67HI Hollow Integrated Silicone Extrusion Waterproof LED Strip Lights
IP67HI Hollow Integrated Silicone Extrusion: The LED strip light is encased within a hollow silicone extrusion. This offers protection against temporary immersion in water (up to 1 meter). The hollow design can sometimes offer better flexibility.
-
IP68 Solid Silicone Extrusion Waterproof LED Strip Lights
The LED strip light is completely encased in solid silicone through an extrusion process. This provides the highest level of protection, suitable for continuous immersion in water beyond 1 meter depth (specific depth rating will be provided by the manufacturer). This is ideal for pool lighting, underwater features, and marine applications.
5. Confusion Between IP54 and IP65 LED Strips
It's easy to get IP54 and IP65 confused, as both offer some level of water protection. The key difference lies in the type of water exposure they can withstand:
- IP54: Protected against splashing water from any direction. Think of accidental splashes from a sink or light rain.
- IP65: Protected against water jets from any direction. This means it can handle more forceful water exposure, like being sprayed with a hose.
For outdoor applications where direct rain or washing is expected, IP65 is generally the minimum recommended rating.
6. Common Materials Used to Make Waterproof LED Strip Lights
The waterproof protection of LED strips is typically achieved using these materials:
-
Epoxy Resin: A hard, rigid resin that can be applied as a coating. While offering good protection, it can sometimes yellow or crack over time with UV exposure or flexing.
- PU Glue (Polyurethane Glue): A flexible adhesive that can provide a degree of water resistance (typically IP54). It's generally less robust against prolonged water exposure compared to silicone.
- Silicone: A highly flexible, durable, and UV-resistant material that offers excellent waterproofing capabilities (IP65 and higher). It remains flexible over a wide temperature range and is a popular choice for higher IP ratings. ADLED is a high-quality LED strip light manufacturer. All of our waterproof LED strip lights use premium silicone waterproofing to ensure excellent durability and long-term performance.
7. Comparison of Hollow vs. Solid Silicone Extrusion Waterproof LED Strip Lights
When it comes to outdoor or waterproof lighting, the choice of LED strip construction plays a critical role in performance, durability, and maintenance. Two common waterproofing methods used in the LED strip industry are hollow silicone extrusion and solid full-encapsulation silicone extrusion. While both provide protection against moisture and dust, they differ significantly in structure, manufacturing process, and application suitability.This article offers a detailed comparison between these two types, helping lighting professionals and project planners choose the right solution based on their specific needs.
Here's the full comparison between hollow silicone extrusion and solid full-encapsulation silicone extrusion LED strips
1. Structural Differences
|
Features
|
Hollow Silicone Extrusion
|
Solid Full-Encapsulation Silicone Extrusion
|
|
Internal Structure
|
Hollow silicone tube; LED strip inserted inside like a sleeve
|
Solid silicone structure fully encapsulates the LED strip
|
|
Strip-Silicone Relation
|
LED strip and silicone tube are separable (LED can be replaced later)
|
Silicone is tightly bonded with LED strip; non-removable
|
|
Cross-Section Shape
|
Round or flat tube with hollow center
|
Solid cross-section; LED strip is fully enclosed in 360° silicone
|
2. Manufacturing Process
|
Production
|
Hollow Silicone Extrusion
|
Solid Full-Encapsulation Silicone Extrusion
|
|
Production Steps
|
1. Extrude hollow silicone tube
2. Insert LED strip and seal both ends
|
1. Co-extrude LED strip and silicone
2. High-temp curing to form solid body
|
|
Equipment Requirements
|
Separate machines for tube extrusion and LED insertion
|
Custom molds and high-end co-extrusion sealing equipment
|
|
Sealing Method
|
Sealed with glue or end caps
|
One-piece seamless molding; no extra sealing required
|
3. Performance Comparison
|
Performance Indicators
|
Hollow Silicone Extrusion
|
Solid Full-Encapsulation Silicone Extrusion
|
|
Waterproofing
|
Relies on end-sealing workmanship
|
Seamless, superior waterproof performance
|
|
Heat Dissipation
|
Hollow space allows air flow, better cooling
|
Heat dissipation limited; power must be controlled
|
|
Flexibility
|
Soft silicone tube is easy to bend; slightly stiff after LED insertion
|
Higher hardness due to solid body; limited bending radius
|
|
Compression Resistance
|
Tube may deform under pressure, possibly squeezing the LED strip
|
Strong pressure resistance; suitable for ground or vibration-prone environments
|
|
Maintenance
|
Silicone tube can be opened for LED strip replacement
|
Requires cutting and re-sealing for maintenance
|
4. Application Scenarios
|
Type
|
Hollow Silicone Extrusion
|
Solid Full-Encapsulation Silicone Extrusion
|
|
Best Use Application
|
- Temporary lighting (weddings, exhibitions)
- Projects needing frequent replacements - Budget outdoor lightboxes |
- Underwater lighting (pools, fountains)
- Industrial waterproof lighting - Buried or vehicle-accessible pathways |
|
Key Advantages
|
High flexibility, easy maintenance, lower cost
|
High waterproof & dustproof rating, superior durability, better impact resistance
|
Both hollow silicone and solid silicone extrusion techniques have their unique strengths. Hollow silicone extrusion is ideal for projects that prioritize flexibility, cost-effectiveness, and easy maintenance. On the other hand, solid full-encapsulation extrusion offers unmatched waterproof performance, mechanical strength, and long-term durability—making it the preferred choice for demanding environments such as underwater lighting, industrial applications, and heavy-duty installations.
By understanding the core differences between these two methods, you can select the most suitable waterproof LED strip solution for your project with confidence.
8. Advantages and Disadvantages of Waterproof LED Strip Lights
Like any product, waterproof LED strip lights have their pros and cons:
-
Advantages：
Water Resistance: Can be used in wet and damp environments without damage.
Versatility: Opens up a wider range of indoor and outdoor lighting applications.
Durability: The protective coating often adds a layer of physical protection.
Safety: Reduces the risk of electrical shorts in wet areas.
Longevity: Protects the delicate components from corrosion and moisture damage, potentially extending the lifespan.
-
Disadvantages:
Potentially Higher Cost: Waterproof versions can sometimes be more expensive than non-waterproof options due to the added manufacturing steps and materials.
Heat Dissipation: The waterproof coating can sometimes slightly impede heat dissipation, although manufacturers design LED strips to mitigate this.
Flexibility (Solid Silicone): Solid silicone extrusion (IP68) might slightly reduce the overall flexibility of the LED strip compared to non-coated versions.
Repair Difficulty: If a section of a heavily coated waterproof LED strip lights fails, repair can be more challenging.
9. How to Choose the Right Waterproof LED Strip Lights
Selecting the appropriate waterproof LED strip involves considering several factors:
- IP Rating: Match the IP rating to the level of water exposure expected in the application environment.
- Brightness and Color: Choose the desired brightness (lumens) and color temperature (Kelvin) or RGB options based on your lighting needs.
- Voltage: Ensure compatibility with your power supply (typically 12V or 24V DC).
- LED Density: Higher LED density provides a more uniform light output without visible dots.
- Length: Determine the required length and check if the LED strip can be cut to size.
- Material of Waterproofing: Consider the durability and suitability of epoxy, PU glue, or silicone for your application. Silicone is generally recommended for higher IP ratings and outdoor use.
- Brand and Quality: Opt for reputable brands known for their quality and reliability.
10. Installation Tips for Waterproof LED Strip Lights
Installing waterproof LED strip lights requires some specific considerations:
1. Cutting and Joining LED Strips with Connectors:
Cutting: Always cut at the designated cutting marks. For waterproof LED strip lights, you'll need to carefully cut through the waterproof layer as well.
Joining with Waterproof Connectors: Use IP-rated connectors designed for waterproof LED strips to maintain the water resistance at the connection points. Ensure a tight and secure seal.
2. Soldering and Sealing Waterproof LED Strip Lights:
Soldering: If soldering, ensure clean connections.
Sealing: After soldering, use heat shrink tubing with an inner adhesive or waterproof silicone sealant to completely seal the exposed connections and maintain the IP rating.
3. Installing Waterproof LED Strip Lights:
Surface Preparation: Clean the mounting surface thoroughly.
Adhesive Backing: Most waterproof LED strip lights also come with adhesive backing. Ensure good adhesion, especially on uneven surfaces.
Mounting Clips/Channels: For added security, especially in outdoor or submerged applications, use IP-rated mounting clips or channels.
Power Supply Placement: Ensure the power supply is located in a dry, protected area unless it's also waterproof.
11. Common Applications for Waterproof LED Strip Lights
Waterproof LED strip lights unlock a wide array of exciting lighting possibilities:
-
Outdoor Landscape Lighting:
Illuminating gardens, pathways, ponds, and architectural features.
-
Patio and Deck Lighting:
Creating ambient lighting for outdoor entertaining areas.
-
Pool and Spa Lighting:
Adding vibrant colors and illumination underwater for safety and aesthetics.
-

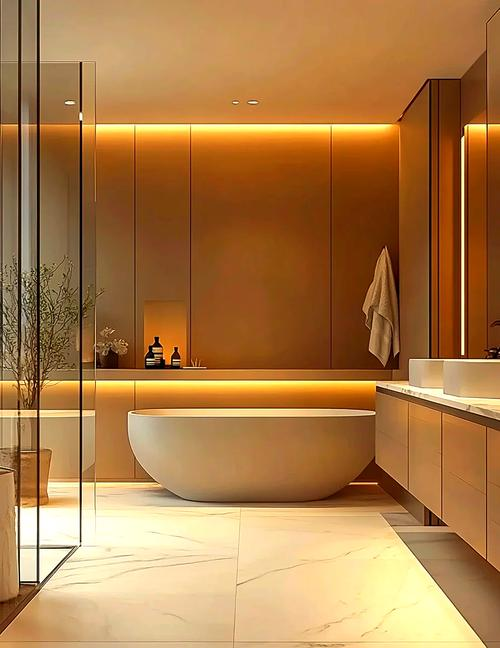

Bathroom Lighting:
Under-cabinet lighting, mirror backlighting, and shower accents.
-
Kitchen Backsplashes:
Providing functional and stylish lighting near sinks.
-
Aquarium Lighting:
Enhancing the visual appeal of fish tanks.
-
Marine Lighting:
Illuminating boats and docks.
-
Commercial Outdoor Signage:
Creating eye-catching and durable illuminated signs.
12. Maintenance and Precautions for Waterproof LED Strip Lights
While waterproof, these LED strips still benefit from some care:
- Regular Cleaning: Gently wipe the surface with a damp cloth to remove dirt and debris. Avoid harsh chemicals.
- Inspection: Periodically check for any damage to the waterproof coating or connections.
- Proper Sealing: Ensure all connections and end caps remain properly sealed to maintain water resistance.
- Avoid Submersion Beyond Rating: Never submerge an IP67 LED strip in depths exceeding 1 meter or an IP68 LED strip beyond its specified rating.
- Power Supply Protection: Ensure the power supply is protected from water unless it's also waterproof.
13. Waterproof LED Tape Lights FAQ
Can I cut waterproof LED strip lights?
Yes, but you must cut at the designated cutting marks and reseal the cut ends properly to maintain the waterproof rating.
Are waterproof LED strip lights dimmable?
Yes, if used with a compatible dimmer and power supply. The waterproofing doesn't affect their dimming capability.
Can I use regular connectors with waterproof LED strip lights?
No, you need to use IP-rated waterproof connectors to maintain the water resistance at the connection points.
What IP rating should I choose for outdoor use?
Generally, IP65 is the minimum for areas exposed to rain or washing. For submerged applications, choose IP67 or IP68.
How long do waterproof LED strip lights last?
Yes, you can put LED strips underwater, but only if they are specifically designed for it.
Are LED strips water resistant?
Yes, LED strips can be water-resistant if they have a protective coating or waterproof rating like IP65, IP67, or IP68.
Can you put LED lights around a pool?
Yes, you can install waterproof LED lights around a pool, as long as they have the proper IP rating for outdoor or wet environments.
14. Conclusion
Waterproof LED strip lights are a game-changer for extending the beauty and functionality of LED lighting to a wider range of environments. By understanding IP ratings, the different types available, and proper installation techniques, you can confidently illuminate wet and outdoor spaces with vibrant, energy-efficient, and long-lasting light. So go ahead, embrace the wet and wild side of lighting and transform your surroundings with the brilliance of waterproof LED strip lights!
ADLED is a professional manufacturer of high-quality LED strip lights.
Our waterproof LED strip lights are certified by UL, CUL, CE, RoHS, and UKCA, ensuring top-level safety and performance.We welcome bulk orders and long-term partnerships. Contact us today for high-quality, reliable waterproof LED strip lighting solutions!
Our waterproof LED strip lights are certified by UL, CUL, CE, RoHS, and UKCA, ensuring top-level safety and performance.We welcome bulk orders and long-term partnerships. Contact us today for high-quality, reliable waterproof LED strip lighting solutions!
