Achieving Perfect Uniformity in Ultra Thin Stretch Ceilings A Guide from a 13 Year Commercial Grade LED Bar Manufacturer

Architectural lighting design has evolved, and translucent surfaces have become a staple in modern commercial projects. However, achieving flawless diffusion across a massive surface remains a significant engineering hurdle. When designing low-profile systems, selecting the right led strip for stretch ceiling installations is the defining factor between a premium architectural statement and a poorly executed project filled with shadow lines.

As a trusted commercial grade LED bar manufacturer with 13 years of fabrication experience, we understand the technical friction between vision and execution. This comprehensive guide outlines the physics, electronics, and structural layouts required to achieve a flawless, hot-spot-free finish in ultra-thin fabric ceiling profiles.

The Anatomy of Ultra-Thin Stretch Ceilings: Why Light Uniformity is a Challenge

The primary goal of any translucent surface installation is to create a seamless glowing plane. Achieving stretch ceiling backlighting uniform light becomes immensely difficult when the installation cavity depth is restricted. In ultra-thin profiles—where the distance between the fabric and the structural backing is less than 50mm—traditional lighting methods inevitably fail.

The Physics of Diffusion Lines

When light emits from a point source, it travels outward in a specific beam angle. If the structural cavity is shallow, the light cones from individual diodes do not have enough physical distance to intersect and overlap before striking the fabric material. This failure to blend creates a series of bright streaks and dark voids, commonly referred to in the industry as "ladder effect" or "tiger striping."

Structural Complications in Shallow Cavities

• acoustic stretch ceiling integrated lighting systems often use specialized micro-perforated fabrics that alter light transmission, magnifying internal shadowing if the diode placement isn’t mathematically calculated.

• printed stretch ceiling backlighting projects, featuring custom graphics or sky scenes, suffer drastically from poor diffusion because dark ink spots create visual contrast that highlights underlying hot spots.

• perimeter lighting for stretch ceilings requires precise linear diffusion at the borders to prevent localized wall-washing artifacts from disrupting the center ceiling plane.

To bypass these limitations, designers must move away from generic retail lighting components and opt for a dedicated high density slim rigid LED light bar system designed for architectural integration.

Choosing the Right Light Source: Flexible LED Strip vs. Slim Rigid LED Light Bar

When selecting components from an OEM LED strip light factory, engineers frequently debate between flexible tape and rigid modular bars. While flexible strips work well for curved accents, a slim rigid LED light bar is the superior choice for large-scale, ultra-thin fabric ceiling backlighting.

Parameter	Flexible LED Tape	Slim Rigid LED Light Bar
Thermal Dissipation	Poor (relies on thin copper foil)	Excellent (heavy aluminum PCB)
Voltage Drop Over Long Runs	Severe (noticeable dimming)	Zero (constant current design)
Optical Beam Control	Standard 120° (raw diode)	Integrated 160° PMMA Micro-Lens
Mechanical Alignment	Prone to sagging and peeling	Secure screw-mount linear framing

The Thermal Realities of Closed Cavities

Enclosed fabric ceilings trap heat. A standard flexible tape lacks the structural mass to move thermal loads away from the chip junctions. By using a premium quality rigid LED bar built on a high-density, premium thermal conductivity LED aluminum PCB, the heat is efficiently drawn away from the components. This robust engineering guarantees a long lifespan backlit ceiling LED modules depend on, preventing premature diode degradation and color shifting over years of continuous operation.

Mechanical Integrity and Maintenance

Flexible adhesive tapes regularly fail inside sealed plenums due to constant thermal expansion. When the tape peels, the light source drops, creating an immediate dark patch that requires the entire fabric ceiling to be uninstalled for repair. Utilizing a slim rigid LED light bar secured with mechanical fasteners eliminates sagging entirely, establishing a low maintenance backlit ceiling lighting system favored by facility managers.

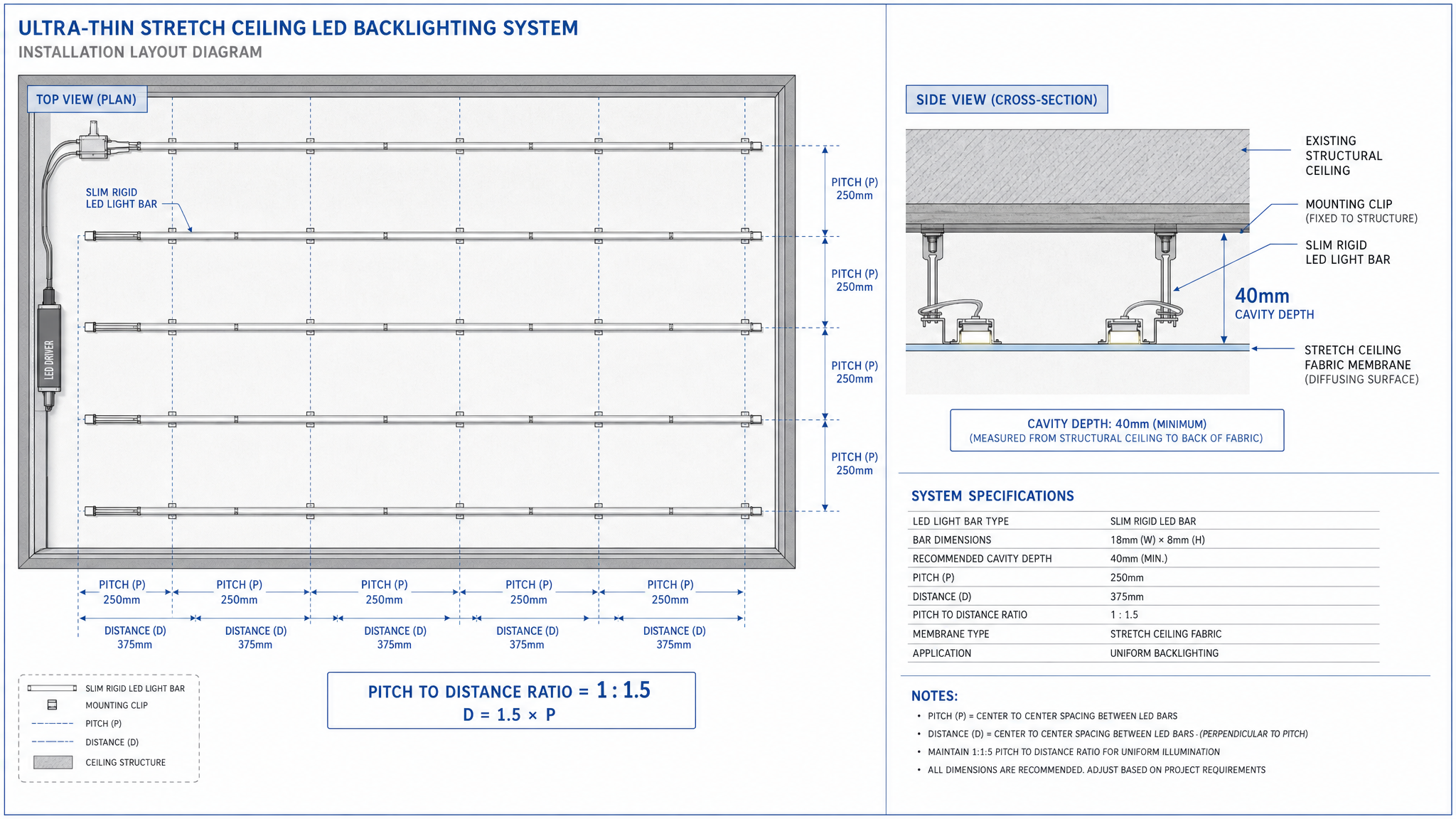

The Perfect Pitch-to-Distance Ratio: How to Select the Ideal LED Strip for Stretch Ceiling Projects

Achieving perfect light uniformity stretch ceiling systems require requires balancing the physical distance from the diode to the fabric (D) against the center-to-center pitch between the diodes (P). For ultra-thin installations, relying on the standard 120-degree raw beam angle is impossible without crowding the cavity with excessive wattage.

The 1:1.5 Mixing Rule

As a long-term custom LED light bar supplier, our engineering rule of thumb for standard diodes is that the blending distance (D) must be at least 1.5 times the diode pitch (P). In a low profile stretch ceiling mixing distance of only 40mm, your diode spacing would need to be under 26mm, leading to massive heat concentration and excessive power consumption.

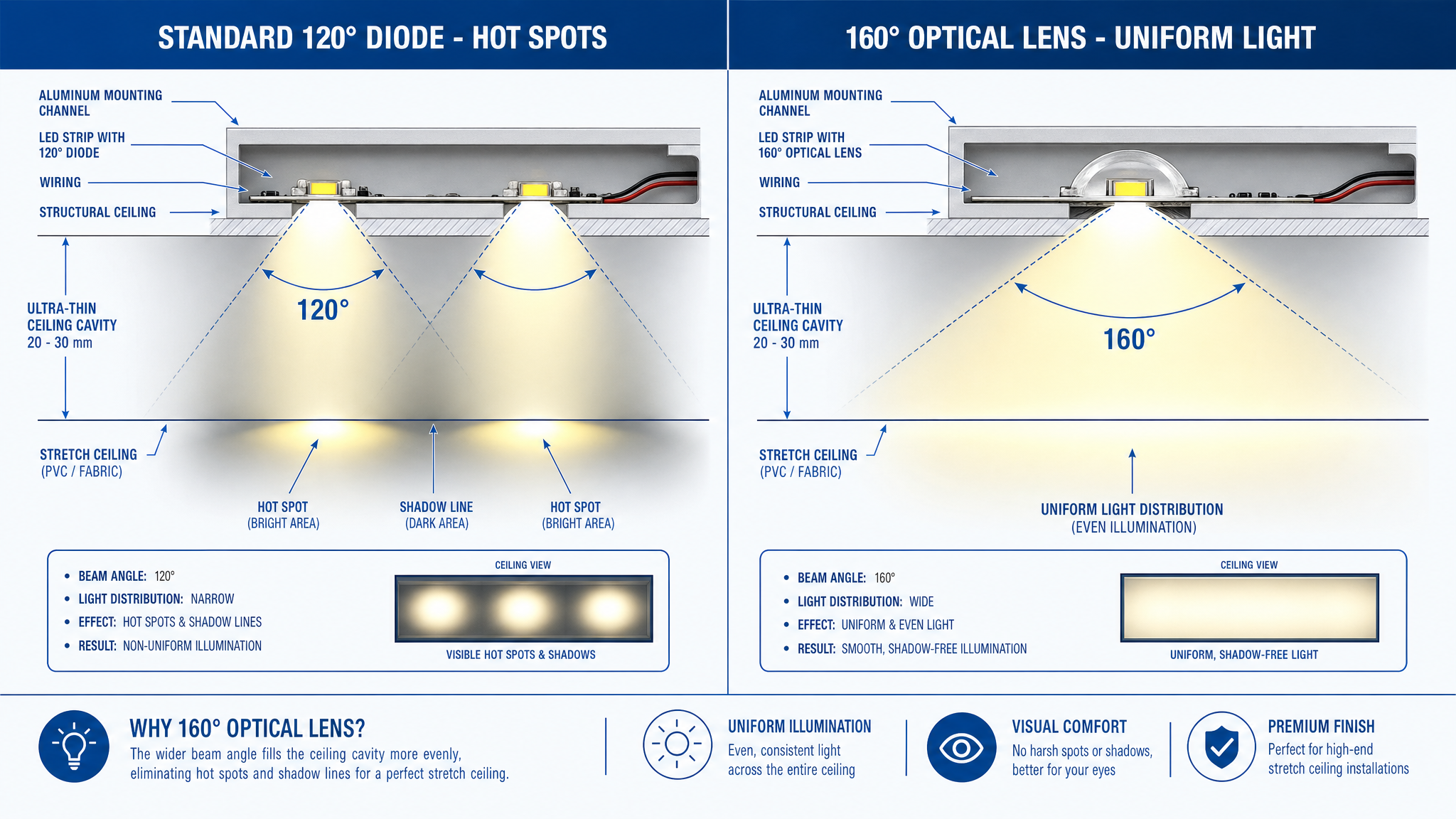

Overcoming Shallow Profiles with Micro-Optics

To solve this, our industrial grade LED bar manufacturer facility integrates a customized 160 degree lens LED light bar structure. By placing an optical PMMA micro-lens over each individual SMD2835 component, the light output is flattened horizontally.

This optical widening changes the required ratio, allowing uniform illumination in shallow cavities even when the pitch is wider than the depth. Designers can utilize a high density smd LED light bar layout with optimal diode spacing backlit ceiling frameworks, keeping the layout clean and highly efficient.

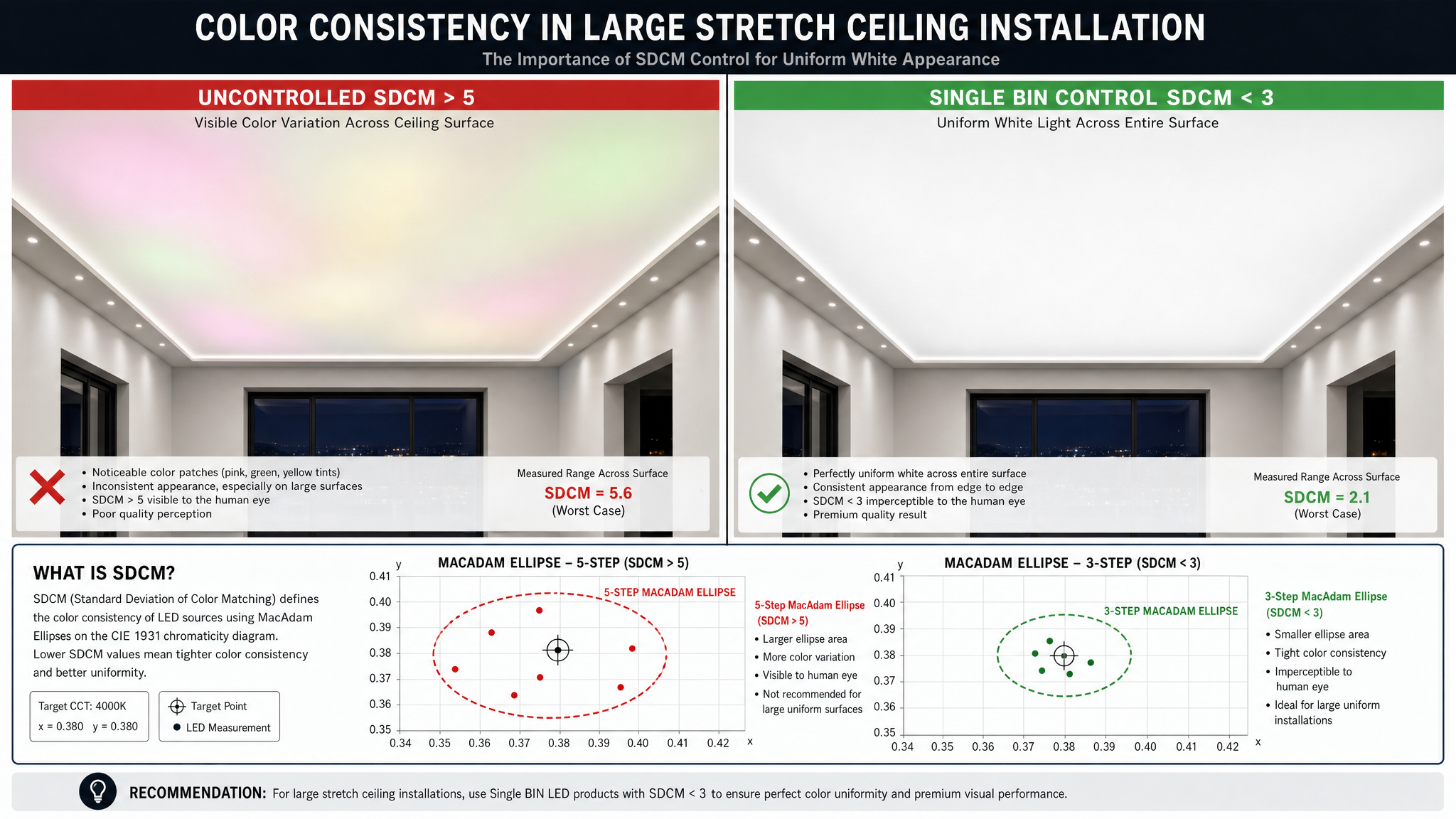

Color Consistency Matters: Eliminating SDCM Variances in Large-Scale Backlit Ceilings

For a luxury retail lighting manufacturer or a luxury hotel lobby stretch ceiling lighting project, color precision is non-negotiable. If a large translucent ceiling displays shifting shades of white across its surface, the premium aesthetic of the architectural space is instantly ruined.

The Threat of Chromaticity Drift

When purchasing components from an unverified global LED strip supplier, variations in chemical phosphors create noticeable shifts in correlated color temperature (CCT). A batch of 4000K lights might range from 3800K to 4200K. When projected through a translucent ceiling backlighting panels network, these minor variances manifest as unappealing patches of pink, green, or yellow light.

Implementing Single BIN Control

To achieve absolute color consistency in large ceiling projects, our factory enforces a strict binning control LED bar manufacturer standard. We ensure all components utilized for a single order originate from a single BIN control LED light bar lot.

• Our items feature a MacAdam 3-step LED strip for stretch ceiling standard.

• For ultra-critical installations, we achieve an SDCM less than 3 rigid LED bar tolerance, ensuring zero visible chromatic color deviation across thousands of continuous meters.

• By pairing this with a high color rendering index stretch ceiling metric (CRI 90 plus linear LED light bar), textures, fabrics, and interior branding colors appear natural, vibrant, and perfectly matched to the initial architectural specification.

Evaluating Efficacy and Thermal Management in Enclosed Architectural Cavities

High-performance commercial backlighting is not just about brightness; it is about system optimization. In closed plenums, power efficiency directly influences the operating temperature, which dictates the system's long-term reliability.

Maximizing Lumens Per Watt

Selecting a high lumen efficacy rigid LED bar minimizes current draw while maximizing brightness. Our engineering team utilizes a high efficiency SMD2835 rigid bar configuration that delivers over 140 lm W plus LED strip performance, with premium configurations reaching an ultra-efficient 160 lumens per watt rigid LED bar rating.

High efficacy means less electrical energy is wasted as heat. In an enclosed cavity, lowering thermal generation preserves the integrity of the barrisol ceiling LED backlighting materials, preventing localized disfigurement or yellowing of the translucent membranes.

Advanced Circuit Design for Long Linear Runs

Voltage drop is the enemy of large-scale linear lighting installations. Traditional low-voltage layouts suffer from noticeable dimming at the far end of the run. A premier B2B LED bar manufacturer addresses this by integrating a constant current rigid LED light bar circuit architecture with a heavy copper PCB rigid LED bar foundation.

Operating on a 24V DC slim rigid LED bar platform, these advanced modules achieve completely zero voltage drop linear lighting across extensive runs, ensuring the illumination at the final meter is perfectly uniform with the first.

Why Buying from a UL Listed LED Light Bar Wholesale Partner is Crucial for Project Approval

For an electrical contractor approved LED strip deployment or a tier-1 engineering firm, compliance documentation is just as critical as technical performance. Without proper regulatory certifications, an entire installation can be rejected during a municipal building inspection, leading to severe financial losses.

Navigating Strict Building Codes

North American and European commercial developments enforce uncompromising safety standards regarding electrical components hidden inside architectural plenums. Working with a UL listed LED light bar wholesale enterprise provides absolute legal assurance.

• Our items feature a UL listed LED light bar wholesale certification, ensuring they are fully compliant with national safety protocols.

• Every module is built with a UL File Number traceable LED manufacturer marking directly on the PCB, giving inspectors immediate verification of regulatory adherence.

• Our fixtures align seamlessly with Class 2 power unit compatible LED bar requirements, minimizing fire risk and lowering compliance friction for field installers.

Application-Specific Environmental Protections

Depending on the architectural environment, stretch ceiling cavities face distinct moisture and debris risks. We fabricate our slim rigid LED light bar lines with tailored protection ratings to match your specific environmental requirements:

Choosing a damp location rated backlit ceiling lights system or an IP65 rigid LED light bar for bathrooms installation protects the internal components against humidity cycles, dust accumulation, and localized condensation, ensuring long-term systemic stability.

Conclusion & Mock-Up Testing: Request a Quote from a Sourcing Expert

Achieving perfect illumination inside an ultra-thin stretch ceiling requires a calculated combination of wide-angle micro-optics, precise color binning, optimized thermal layouts, and verified safety certifications.

As an established contract lighting manufacturer with over 13 years of field-tested engineering expertise, we specialize in transforming complex architectural lighting concepts into reliable commercial products. Whether you require a custom length rigid LED bars run, a specialized tunable white LED bar for stretch ceiling configuration, or a high-volume contract grade LED strip wholesale supply chain partner, our engineering department provides comprehensive technical support from design to delivery.

Next Steps for Professionals

Don't leave the visual success of your next project to guesswork. We highly recommend conducting a physical mock-up test to verify the exact mixing distance against your chosen textile profile.

Contact our technical sales department today to submit your architectural drawings or project layout documents. Our engineering group will provide a comprehensive layout review, customized wiring diagrams, and a factory-direct pricing quote tailored entirely to your project requirements.

Request a Quote from a Sourcing Expert at Adled Light Limited

FAQ:

Q1: How do you guarantee absolute color consistency across a 5,000-meter stretch ceiling project?

To eliminate color variance, we enforce a strict single BIN ontrol led bar manufacturer standard. All static or tunable white light sources are grouped within a  3-STEP MACADAM ELLIPSE (SDCM < 3) window. This ensures zero visible CCT shifting or uneven tinting across large translucent ceiling backlighting panels, while maintaining a premium CRI 90+ for flawless color rendering.

Q2: What is the ideal layout for perfect uniformity in an ultra-thin 40mm ceiling cavity?

Answer: In shallow profiles where standard 120-degree bare diodes cause shadow lines, we use a customized 160 degree lens led light bar. By integrating horizontal widening PMMAmicro-optics over each chip, we optimize the pitch-to-distance ratio. This enables uniform illumination in shallow cavities without overcrowding the PCB with excessive wattages.

Q3: How do your rigid lighting bars handle high thermal loads inside sealed ceiling plenums?

Airtight plenums accelerate diode degradation. Unlike flexible tapes that trap heat, our premium quality rigid led bar lines are built on a heavy copper PCB rigid led bar platform with a high-density aluminum core. This structural thermal pathway quickly dissipates heat away from the SMD2835 junctions, ensuring the long lifespan backlit ceiling led modules depend on.

Q4: How do you prevent voltage drop and dimming on long continuous linear runs?

Voltage drop causes uneven brightness that project inspectors will reject. We resolve this for large scale stretch ceiling lighting setups by using a constant current rigid led light bar circuit architecture running on a 24V DCslim rigid led bar platform. The heavy copper tracks eliminate line resistance, achieving zero voltage drop linear lighting over extensive continuous runs.

Q5: Are your backlighting systems fully compliant with North American building and safety codes?

Yes. Compliance is crucial for project sign-off. As a premier UL listed led light bar wholesale supplier, every backlit fabric ceiling led strips batch carries a traceable UL File Number printed directly onto the aluminum PCB for fast AHK approval. Our systems are also Class 2power unit compatible led bar fixtures, ensuring they pass local electrical and fire audits.

Q6: What protection ratings do you offer for high-humidity areas like indoor swimming pools?

We provide application-specific ingress protection to combat moisture and corrosion. For standard commercial interiors, we supply IP20 slim rigid led light bar options. For humid environments like spas or commercial restrooms, we manufacture damp location rated backlit ceiling lights featuring premium waterproof led strip for stretch ceiling engineering with IP65/IP67 silicone encapsulation.
