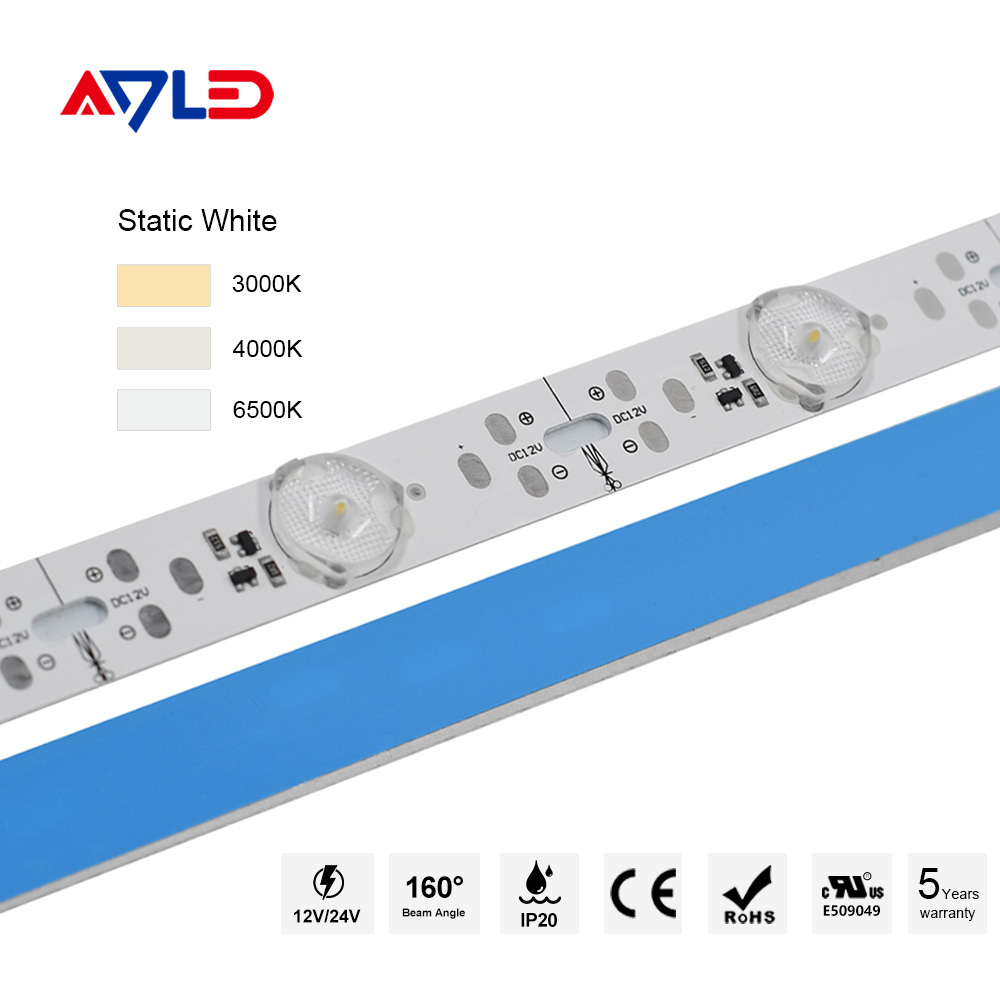

LED Backlight Strip Bar 12V 24V 14LEDs 3030
ADS-N3030-14
3030 Backlight LED Bar, 12V/24V, 14LEDs, 16.8W/M, IP20, 160°, Constant current, Single Color 3000K/4000K/6500K, CE RoHS UL Listed.
Quantity
Professional LED Backlight Strip Manufacturer & Supplier
Power your displays with our premium LED backlight strip solutions. As a top-tier backlight manufacturer, we specialize in providing high-quality LED backlight strip units designed for exceptional performance. These LED backlight strip products offer bright and uniform illumination, perfect for backlit LED and backlight LED bar applications. Whether you need standard LED bar configurations or custom solutions, our LED backlight strip units are tailored to meet your specific requirements. Ideal for lightbox lighting and other backlighting applications, our products are built for longevity and reliability. We prioritize fast shipping, ensuring your projects stay on schedule. Our constant current design and focus on using only the highest quality components ensure that our LED backlight strip and backlight LED bar products offer market-leading performance and an extended lifespan. Choose our LED backlight strip for a superior backlighting solution backed by expert manufacturing and a commitment to quality.
14LEDs 12V 24V Constant Current Backlight LED Bar
LED Backlight Strip Specifications
Code | LED Type | LED QTY | Voltage | Watts | Color | Beam angle | Driven Mode | Size | Warranty |
ADS-N3030-14WW | 3030 | 14LEDs | DC12V/24V | 16.8W | 3000K | 160° | Constant current | 990x18x17mm | 5 years |
ADS-N3030-14NW | 4000K | ||||||||
ADS-N3030-14W | 6500K |

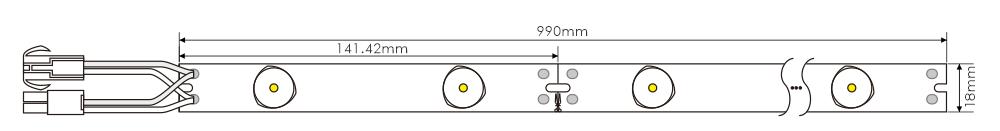

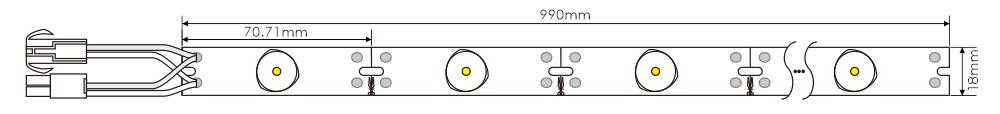

LED Backlight Strip Dimensions
DC12V Each lamp can be cut,Length can be customized.
DC24V Each 2 lamps can be cut,Length can be customized.
LED Backlight Strip Features
• Powered by Epistar chip 9v smd3030 LED
• DC12V/24V low-voltage power supply
• Aluminum base for good heat sinking
• 990m or customized length
• Use mounting clip to fix, easy to install
• DC12V/24V low-voltage power supply
• Aluminum base for good heat sinking
• 990m or customized length
• Use mounting clip to fix, easy to install

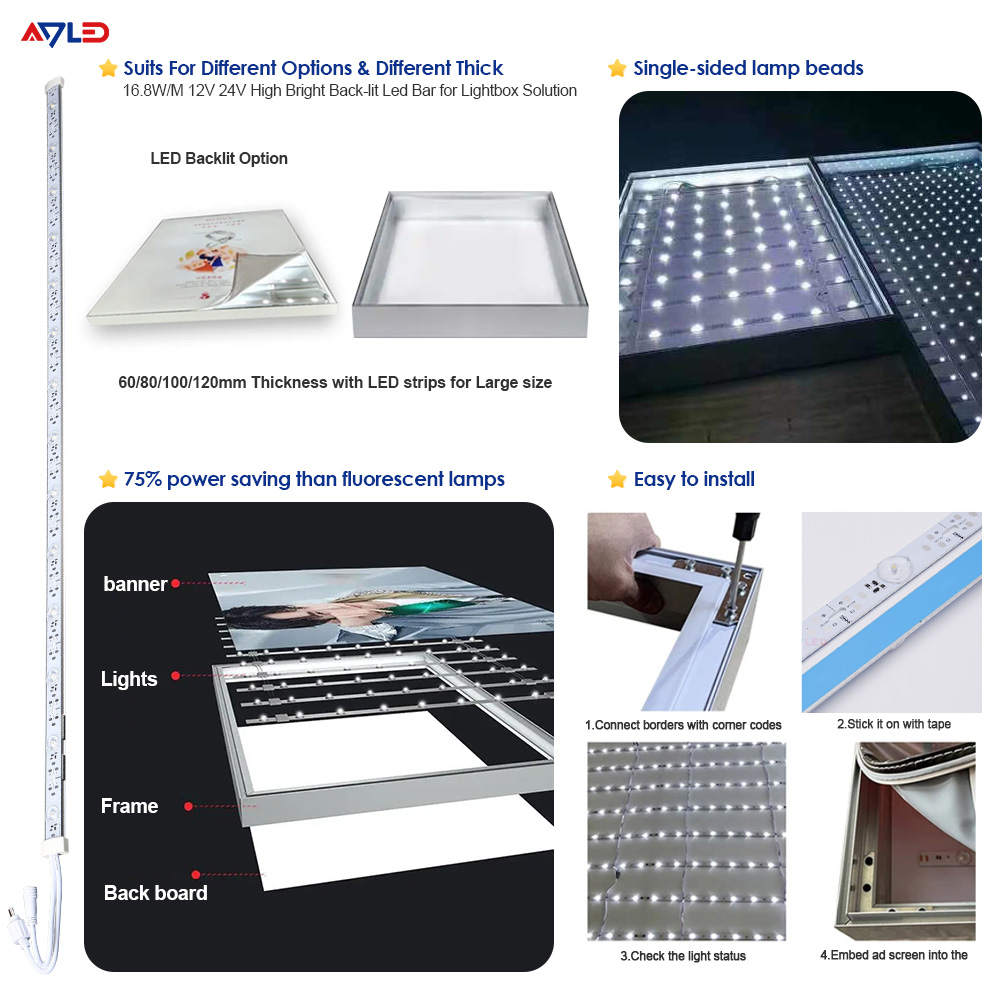

LED Strip Lights for Light Box
As a leader in lightbox lighting solutions, we proudly introduce the market’s only constant current LED backlight strip featuring 14 LEDs per meter. This innovative backlit LED solution is designed for premium performance, using a 1.6mm thick aluminum PCB—one of the highest standards in the industry—for superior heat dissipation and long-term reliability. Our LED bar delivers exceptional brightness with stable output, making it ideal for high-end signage applications. Whether you're integrating backlight LED bar into advertising displays or installing LED strip lights for light box systems, our high-efficiency product ensures consistent illumination, durability, and unmatched lighting effects.

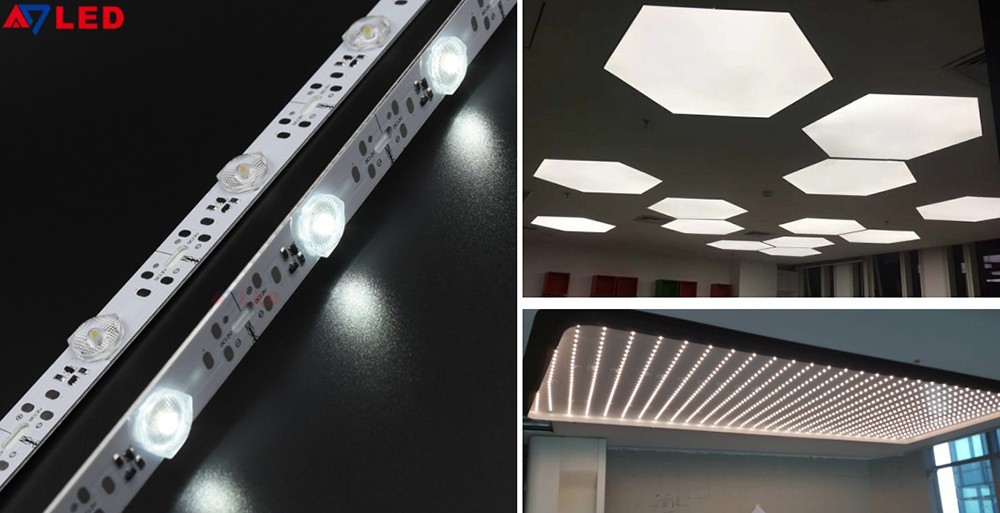

LED Backlight Strip Application
LED lights light in the box
LED box light
LED light box for wall
LED lighted sign box
Light box for display
Commercial light box sign
LED box light ceiling
LED light box signs
Light box retail display
Lighted box sign panels
Sign board light box
Box LED lights
Illuminated light box sign
Light box display banner
Outdoor light box sign for sale
LED Backlight Strip Installation
The LED backlight strip is specially designed for installation in single-sided lightboxes or stretch ceilings, offering powerful and uniform illumination. This backlit LED solution ensures brilliant visual effects, making it ideal for both commercial displays and architectural applications. During installation, the LED bar is mounted directly onto the back panel or ceiling surface, with precise spacing to maintain even brightness. Our lightbox lighting system simplifies the process, saving time while enhancing visual impact. For larger areas, the backlight LED bar provides high brightness and excellent heat dissipation, ensuring long-lasting and stable performance in any environment.
LED Backlight Strip FAQ
How to make a LED light box?
To make a LED light box, start by preparing a frame and choosing the right materials like an acrylic panel, back panel, and LED lighting such as a LED backlight strip, LED bar, or backlit LED. Install the backlight LED bar evenly inside the frame for uniform light. Connect it to a suitable power supply (usually 12V or 24V). Close the box with the front panel, then test to ensure the lightbox lighting is bright and even. This setup works for signs, displays, and stretch ceilings.
