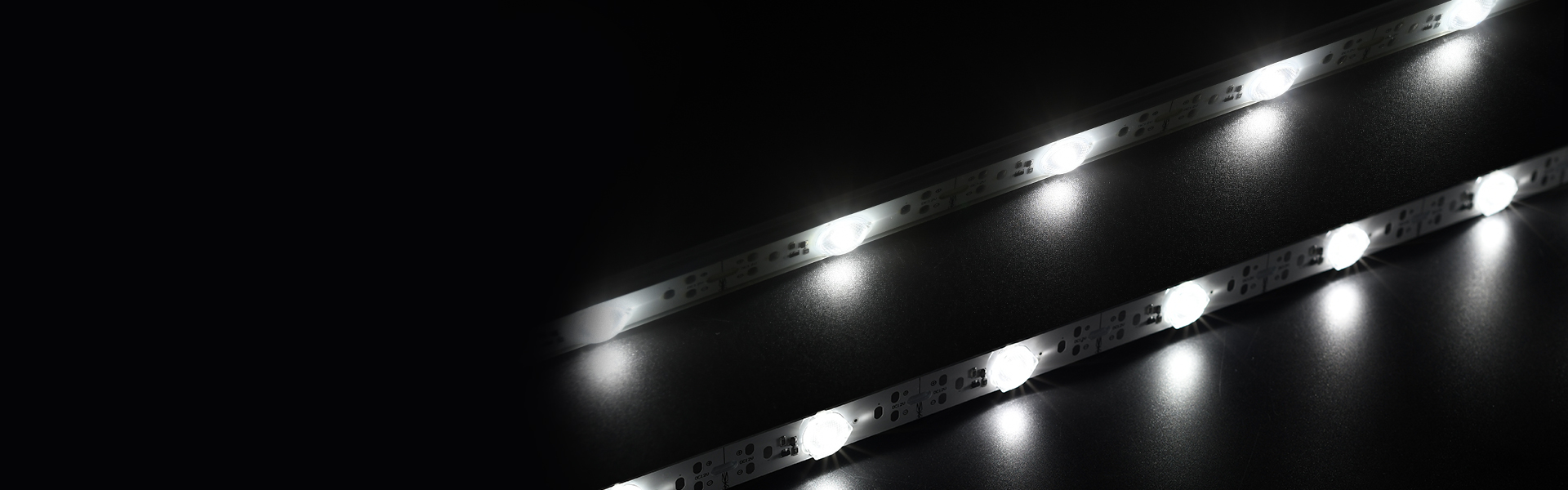

Backlight LED Bar

☑ Various lengths available

☑ 1.6mm thickness aluminum board

☑ DC12V, DC24V optional

☑ IP20 & IP67 waterproof grade

☑ Perfect for 4cm-20cm depth fabric lightbox

☑ OEM and ODM are welcome

☑ 5 years warranty

☑ CE UL RoHS certificates

Backlight LED Bar Wholesaler

Our backlight LED bar provide 12V and 24V voltage options, support the full color temperature range from warm white 3000K to pure white 4000K, white 6500K and cold white 10000K, and also provide CCT, RGB, RGBW and other color options. Made of high-quality aluminum board, it has excellent heat dissipation performance and can achieve a high power output of 16.8W per meter, making it the first choice for high-brightness, large light boxes. The backlit roller LED bar design has a diffuse reflection effect and is widely used in large light boxes and stretch ceiling projects. Light box manufacturers, sign manufacturers and LED distributors are welcome to customize or purchase the LED backlight module from ADLED.

LED Bar for Backlit Frames

Backlit LED Bars for Deep Light Boxes & Large Displays

ADLED's Backlit LED Bars are engineered for single-sided light boxes, medium-depth cabinets, and large-format illuminated displays that require powerful, uniform direct backlighting. Unlike edge-lit systems, backlit LED bars are installed behind the graphic to deliver high-output illumination with excellent brightness consistency across the entire display surface.

Built on a 1.6 mm premium aluminum PCB, each rigid LED bar provides outstanding thermal conductivity, enabling rapid heat dissipation for stable performance and an extended service life. The rigid aluminum construction also offers superior mechanical strength and installation stability compared with flexible LED strips, ensuring reliable optical performance even during continuous 24/7 commercial operation.

Designed to support applications ranging from 40 mm ultra-slim light boxes to 200 mm deep large-format light boxes, our backlit LED bars can be arranged in optimized matrix layouts to achieve exceptional illumination uniformity while minimizing the number of light sources required. This results in lower installation costs, reduced maintenance, and improved long-term energy efficiency.

Ideal for advertising light boxes, SEG displays, retail signage, exhibition graphics, airport media, shopping malls, and commercial display systems, ADLED also offers comprehensive OEM and ODM customization, including tailored lengths, power outputs, beam angles, color temperatures, PCB layouts, connectors, cable lengths, and private-label branding to meet the specific requirements of every project. Get Your Custom LED Bar Solution

LED Bar Light 24V 12LEDs 3020 CCT

LED Rigid Strip Light Backlight LED Bar 24V 28LEDs 5050 RGBW

LED Rigid Strip Light Backlight LED Bar 24V 12LEDs 3020 CCT

Backlit LED Light Bar 12V 24V 14LEDs 3030

LED Backlight Strip Bar 12V 24V 14LEDs 3030

LED Strip Bar Lights Backlight LED Ladder 12V 24V 12LEDs 3030

Rigid LED Bar Backlight LED Lattice 12V 24V 12LEDs 3030

Rigid LED Strip Light Tunable White CCT Backlight Bar 24V 12LEDs 3030

LED Diffused Strip Tunable White CCT Backlight Bar 24V 12LEDs 3030

Professional LED Bar Light Manufacturer

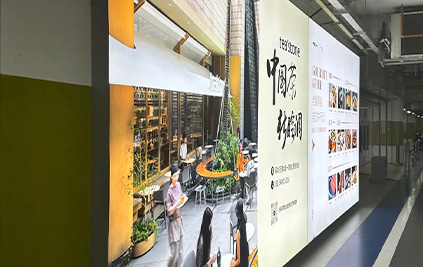

Backlit LED bars are widely used in advertising lightboxes and LED stretch receivers. They mainly include commercial advertising, interior decoration, outdoor signage, traffic signs, entertainment activities, exhibitions, shopping malls, restaurants, cafes, bus stations, subway stations, etc.
