LED Stripe COB 12V 24V 480Chips/M Reel to Reel No Solder Joints
ADS-YCOB-480X-12/24-R
Spotless COB LED Strip Lights, 12V/24V, 8mm, 1000LM, CRI90, 10W/M, IP20, Dimmable, Single White 3000K/4000K/6500K, CE RoHS UL Listed.
Quantity
China Professional LED Stripe COB Supplier
Experience the future of seamless illumination with our innovative LED stripe COB. Unlike traditional flexible LED tape light, our LED stripe COB utilizes Chip-on-Board technology, mounting numerous LED chips directly onto the circuit board for a continuous, dotless line of light. LED stripe COB results in unparalleled uniformity, eliminating hotspots and creating a smooth, even glow ideal for any indoor space. Whether you need a warm white ww LED strip for a cozy ambiance, a neutral 4000K LED strip for general illumination, or a cool 6500K LED strip for task lighting, our dimmable light strip options provide the perfect solution. Sourced from leading LED stripe china manufacturers, our strip light roll comes in convenient lengths, including cost-effective 5m LED strip light price options, making them perfect as indoor light strips for any project requiring uniform, high-quality lighting.

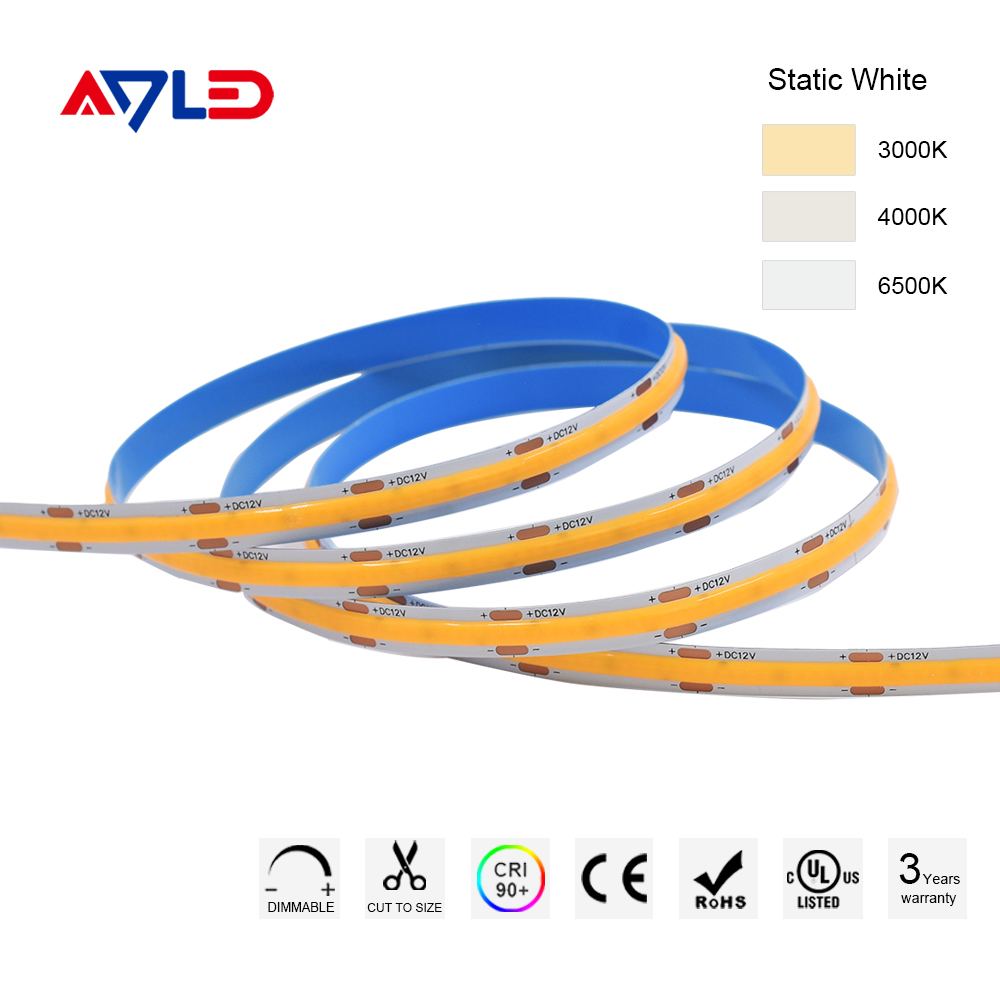

480Chips/m 12V 24V LED Stripe COB
LED Stripe COB Features
- Commercial grade LED tape light
- No more soldering, increased reliability due to single piece reel-to reel
- COB design, uniform, no light spot even without aluminum profile
- Excellent lighting with SDCM in 5-step, high efficiency that’s up to 100Lm/W @CRI90
- Top-tier raw materials, durable longer lifespan
- Wide beam angle 180° for uniform seamless linear lights
- Standard packed in 5m(16.4ft) per roll, IP20/IP65/IP67/IP68 waterproof LED strips
- 0-100% dimmable by LED strip light dimmer

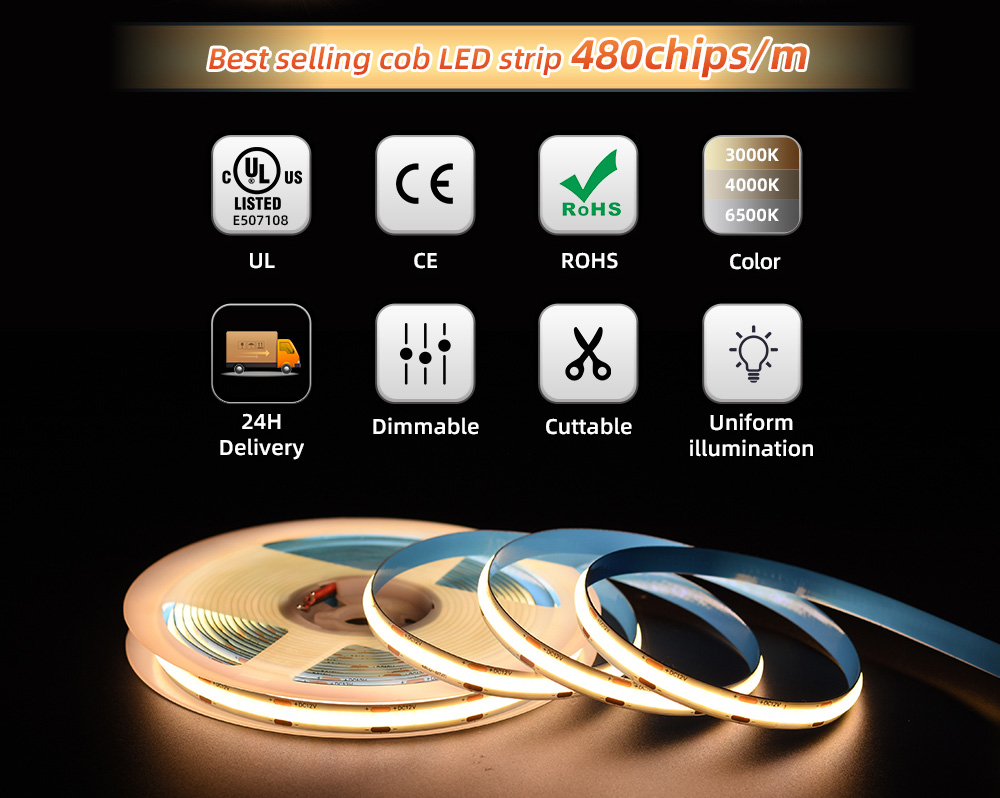

Best Budget LED Strip Lights
The LED stripe COB is a cutting-edge lighting solution that combines high efficiency, smooth output, and cost-effectiveness—ideal for both personal and professional projects. Designed using roll-to-roll production technology, the COB LED strip lights ensure consistent quality, flexible customization, and faster delivery times.
This LED stripe COB product is a perfect choice for those seeking the Best Budget LED Strip Lights without sacrificing performance. With its high density LED tape construction, it offers seamless, dot-free illumination—superior to traditional SMD strips.
Engineered as a COB LED strip 12V, this model operates on low voltage, ensuring safety and energy efficiency. Its compact 8mm LED strip width makes it ideal for slim profiles, while still delivering strong output with minimal heat.
Ideal for a wide range of applications, this LED stripe COB is one of the most cheap LED strip lights options available, yet it outperforms many in brightness, durability, and flexibility.
As a FCOB LED strip, it features flip-chip technology that reduces solder points and enhances reliability, making it an ultra last LED strip solution with an extended lifespan and better thermal management.
Whether you're looking for top rated LED strip lights or need high quality LED strip lighting for shelves, ceilings, signage, or retail displays, the LED light strips produced by roll-to-roll COB technology are your best all-around choice.
The LED stripe COB offers a balance of price, performance, and durability—ideal for demanding lighting environments where quality and cost both matter.
This LED stripe COB product is a perfect choice for those seeking the Best Budget LED Strip Lights without sacrificing performance. With its high density LED tape construction, it offers seamless, dot-free illumination—superior to traditional SMD strips.
Engineered as a COB LED strip 12V, this model operates on low voltage, ensuring safety and energy efficiency. Its compact 8mm LED strip width makes it ideal for slim profiles, while still delivering strong output with minimal heat.
Ideal for a wide range of applications, this LED stripe COB is one of the most cheap LED strip lights options available, yet it outperforms many in brightness, durability, and flexibility.
As a FCOB LED strip, it features flip-chip technology that reduces solder points and enhances reliability, making it an ultra last LED strip solution with an extended lifespan and better thermal management.
Whether you're looking for top rated LED strip lights or need high quality LED strip lighting for shelves, ceilings, signage, or retail displays, the LED light strips produced by roll-to-roll COB technology are your best all-around choice.
The LED stripe COB offers a balance of price, performance, and durability—ideal for demanding lighting environments where quality and cost both matter.
LED Stripe COB Specifications
| Code | LED Type | LED QTY | Votage | Color | Watts | Lumen | Efficiency | CRI | Pitch | Width |
| ADS-YCOB-480WW-12-R | COB | 480 | DC12V | 3000K | 10W/m | 850Lm | 85Lm/W | 90 | 25mm | 8mm |
| ADS-YCOB-480NW-12-R | 4000K | 950Lm | 95Lm/W | |||||||
| ADS-YCOB-480W-12-R | 6500K | 1000Lm | 100Lm/W | |||||||
| ADS-YCOB-480WW-24-R | DC24V | 3000K | 850Lm | 85Lm/W | 50mm | |||||
| ADS-YCOB-480NW-24-R | 4000K | 950Lm | 95Lm/W | |||||||
| ADS-YCOB-480W-24-R | 6500K | 1000Lm | 100Lm/W |

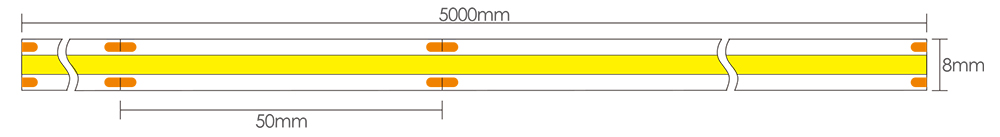

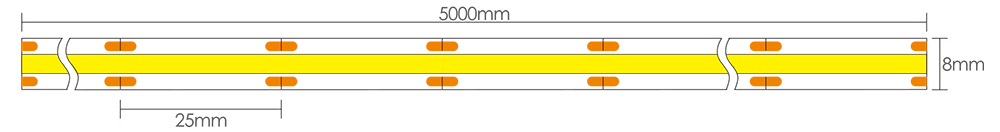

LED Strip Light Dimensions
DC12V
DC24V
LED Strip 3000K vs 4000K
The LED stripe COB is known for its smooth, uniform glow and high color consistency—especially in its roll-to-roll production format. When choosing the right LED stripe COB, understanding the differences between color temperatures like 3000K LED strip and LED strip COB 4000K is key to achieving your desired lighting effect.
A 3000K LED strip produces a warm white tone, ideal for cozy environments such as bedrooms, living rooms, or restaurants. This color temperature from a LED stripe COB creates a relaxing and inviting atmosphere with a soft amber hue, perfect for ambient lighting where comfort is a priority.
In contrast, the 4000K LED strip COB offers a neutral white tone, providing a balanced light that feels clean and natural. It’s suitable for kitchens, offices, retail spaces, or any setting that requires accurate color rendering and focus. The LED stripe COB in 4000K bridges the gap between warm and cool tones, making it a versatile choice for both task and general lighting.
For brighter, cooler environments, a LED strip lights 6500K gives a crisp daylight-white appearance, often used in workspaces or areas needing maximum visibility.
Both 3000K LED strip and 4000k LED strip COB benefit from roll-to-roll COB technology, offering flicker-free, dotless light output with excellent luminous efficacy. The LED stripe COB series ensures stable performance, smooth color output, and long lifespan across all color temperatures.
In contrast, the 4000K LED strip COB offers a neutral white tone, providing a balanced light that feels clean and natural. It’s suitable for kitchens, offices, retail spaces, or any setting that requires accurate color rendering and focus. The LED stripe COB in 4000K bridges the gap between warm and cool tones, making it a versatile choice for both task and general lighting.
For brighter, cooler environments, a LED strip lights 6500K gives a crisp daylight-white appearance, often used in workspaces or areas needing maximum visibility.
Both 3000K LED strip and 4000k LED strip COB benefit from roll-to-roll COB technology, offering flicker-free, dotless light output with excellent luminous efficacy. The LED stripe COB series ensures stable performance, smooth color output, and long lifespan across all color temperatures.
What is Reel-to-Reel LED Stripe COB?
Reel-to-reel LED Stripe COB refers to the entire roll of LED strip being produced without the need for repeated manual chip placement and soldering. Instead, automated equipment continuously encapsulates the LED chips onto the FPC flexible circuit board, achieving a fully automated COB encapsulation process.
Benifits of Reel-to-Reel LED Stripe COB
1. High production efficiency
The continuous roll-to-roll manufacturing process significantly improves LED stripe COB production efficiency and reduces manufacturing costs.
2. Good product consistency
Precise automated equipment ensures stable LED stripe COB quality and consistency.
3. Suitable for mass production
The roll-to-roll process is very suitable for LED stripe COB large-scale, continuous production needs.
4. Flexible applications
Roll-to-roll LED stripe COB using flexible substrates can be bent and cut, making them more convenient for installation in various irregular or curved surfaces.
Why Choose ADLED Reel-to-Reel LED Stripe COB?
1. Sleek and Seamless Design
Up to 50 meters per reel with no visible solder points for a clean and professional appearance.
2. Exceptional Durability
Advanced technology eliminates fake soldering every 0.5 meter, ensuring long-lasting performance.
3. Effortless Installation
Precision-cut lengths with no deviation—no more issues caused by overlapping solder joints.
4. Cost-Effective Solution
Enhanced production efficiency significantly reduces costs, giving you a strong price advantage.
Reel-to-Reel LED Stripe COB Production
The production of roll-to-roll LED Stripe COB combines flexible electronics manufacturing technology with high-precision packaging processes. Its core advantage lies in achieving high-efficiency, low-cost mass production through a continuous and automated workflow.
LED Stripe COB Test Report
Different Types of LED Strips
 |  |  |
Commercial LED Strip Lights | Brightest LED Strip Lights | Long LED Light Strips |
 |  |  |
LED Tape RGB | RGB CCT LED Strip | RGBIC LED Strip |
LED Stripe COB Application
The LED stripe COB is an advanced lighting solution designed for seamless, dot-free illumination—ideal for both indoor and outdoor applications. With its high-density chip layout, the LED stripe COB provides uniform brightness, making it a premium choice for detailed and decorative lighting.
One popular use is in interior architecture, where the LED stripe COB performs exceptionally well as LED strip lights for tray ceiling. Its smooth glow highlights ceiling contours, creating elegant ambient lighting that enhances the depth and design of the space.
In kitchens and workspaces, the LED stripe COB serves as LED tape lights under cabinet, delivering focused task lighting that’s both glare-free and energy efficient. Its slim design fits neatly under cabinets while maintaining a high-end, professional appearance.
For outdoor decor, the LED stripe COB is also well-suited as garden LED light strips, providing vibrant and reliable illumination to paths, landscape features, and garden walls. With weather-resistant options, it ensures long-lasting performance in outdoor environments.
Whether you're lighting up indoor ceilings, kitchen counters, or outdoor spaces, the LED stripe COB offers unmatched versatility, style, and light quality—making it a top-tier solution for modern lighting needs.
One popular use is in interior architecture, where the LED stripe COB performs exceptionally well as LED strip lights for tray ceiling. Its smooth glow highlights ceiling contours, creating elegant ambient lighting that enhances the depth and design of the space.
In kitchens and workspaces, the LED stripe COB serves as LED tape lights under cabinet, delivering focused task lighting that’s both glare-free and energy efficient. Its slim design fits neatly under cabinets while maintaining a high-end, professional appearance.
For outdoor decor, the LED stripe COB is also well-suited as garden LED light strips, providing vibrant and reliable illumination to paths, landscape features, and garden walls. With weather-resistant options, it ensures long-lasting performance in outdoor environments.
Whether you're lighting up indoor ceilings, kitchen counters, or outdoor spaces, the LED stripe COB offers unmatched versatility, style, and light quality—making it a top-tier solution for modern lighting needs.
Leveraging their uniform light, high brightness, flexibility, and efficient production methods, roll-to-roll LED Stripe COB are widely used in various lighting fields, such as:
Linear Lighting: Such as cabinet lights, shelf lights, display case lights, etc.
Decorative Lighting: Such as ambient lights, background wall lights, uniquely shaped LED light strips, etc.
Automotive Lighting: Such as interior ambient lighting, decorative lights, etc.
Industrial Lighting: Some industrial lighting applications with high requirements for uniform light.
Decorative Lighting: Such as ambient lights, background wall lights, uniquely shaped LED light strips, etc.
Automotive Lighting: Such as interior ambient lighting, decorative lights, etc.
Industrial Lighting: Some industrial lighting applications with high requirements for uniform light.

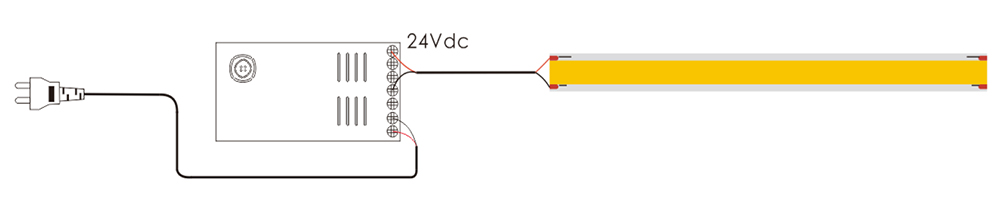

Installing LED Strip Lights
Installing a LED stripe COB is simple and efficient, thanks to its flexible design and uniform light output. The LED stripe COB is ideal for clean, modern installations where smooth, dot-free illumination is essential.
When installing a 6500K LED strip, especially one using LED stripe COB technology, start by selecting a clean, dry surface. Peel off the adhesive backing and carefully press the strip into place, following the desired layout. For long or complex runs, aluminum channels or mounting clips are recommended to secure the LED stripe COB and aid in heat dissipation.
The 6500K LED strip produces a bright, daylight-white light—perfect for task lighting or commercial areas. Combined with the seamless glow of LED stripe COB, it offers crisp, high-output illumination without visible hotspots.
During wiring, ensure the LED stripe COB is connected to a compatible power supply and controller. For 12V or 24V systems, proper voltage matching is critical for safety and performance. Always follow polarity markings and use solderless connectors or secure soldering for a stable connection.
With its advanced construction and easy setup, the LED stripe COB makes installation faster and lighting results more professional—perfect for ceiling accents, shelving, signage, or workspaces needing 6500K clarity.
When installing a 6500K LED strip, especially one using LED stripe COB technology, start by selecting a clean, dry surface. Peel off the adhesive backing and carefully press the strip into place, following the desired layout. For long or complex runs, aluminum channels or mounting clips are recommended to secure the LED stripe COB and aid in heat dissipation.
The 6500K LED strip produces a bright, daylight-white light—perfect for task lighting or commercial areas. Combined with the seamless glow of LED stripe COB, it offers crisp, high-output illumination without visible hotspots.
During wiring, ensure the LED stripe COB is connected to a compatible power supply and controller. For 12V or 24V systems, proper voltage matching is critical for safety and performance. Always follow polarity markings and use solderless connectors or secure soldering for a stable connection.
With its advanced construction and easy setup, the LED stripe COB makes installation faster and lighting results more professional—perfect for ceiling accents, shelving, signage, or workspaces needing 6500K clarity.
LED Stripe COB Package
COB LED Strip vs SMD LED Strip
LED Stripe COB FAQ
What is a LED COB strip?
LED stripe COB (Chip-on-Board) is a type of linear lighting that directly mounts LED chips onto the flexible PCB, creating a continuous, dot-free light output. It offers higher luminous efficiency, better heat dissipation, and improved uniformity compared to traditional SMD LED strips.
Is COB LED better than LED?
COB LEDs are generally better than traditional SMD LEDs in terms of light uniformity, efficiency, and thermal performance. They provide a smooth, dot-free light output, making them ideal for high-end applications requiring consistent illumination. However, the choice depends on the specific lighting needs and project requirements.
What color are COB LED strips?
LED stripe COB is available in a wide range of colors, including single-color options like warm white, neutral white, and cool white (typically from 2700K to 6500K). They also come in tunable white (CCT adjustable), RGB, and RGBW versions for dynamic color effects. This versatility makes them suitable for both ambient and decorative lighting applications.
What are the benefits of COB LED?
COB LEDs offer superior light uniformity with a smooth, dot-free output, making them ideal for applications requiring consistent illumination. They also provide higher luminous efficiency and better heat dissipation compared to traditional LED technologies. Additionally, COB LEDs support more compact and flexible designs, enhancing both aesthetics and performance.
Where to cut LED strip?
You can cut a flexible LED tape light only at the marked cutting points, usually indicated by small lines or copper pads printed on the LED strip. Cutting at these locations ensures the LED strip continues to function properly without damaging the circuit.
Where to buy LED strips?
If you're looking for reliable and high-performance LED strips, the LED stripe COB is widely available from specialized lighting suppliers, online platforms, and manufacturers that offer advanced COB technology for seamless, dot-free illumination.
What's the future of LED strip lighting?
The future of LED strip lighting lies in innovation like the flexible LED tape light, which is becoming thinner, brighter, and more energy-efficient. With growing demand for smart control, better color rendering, and bendable designs, flexible LED tape light will continue to lead the trend in architectural, residential, and commercial lighting.
