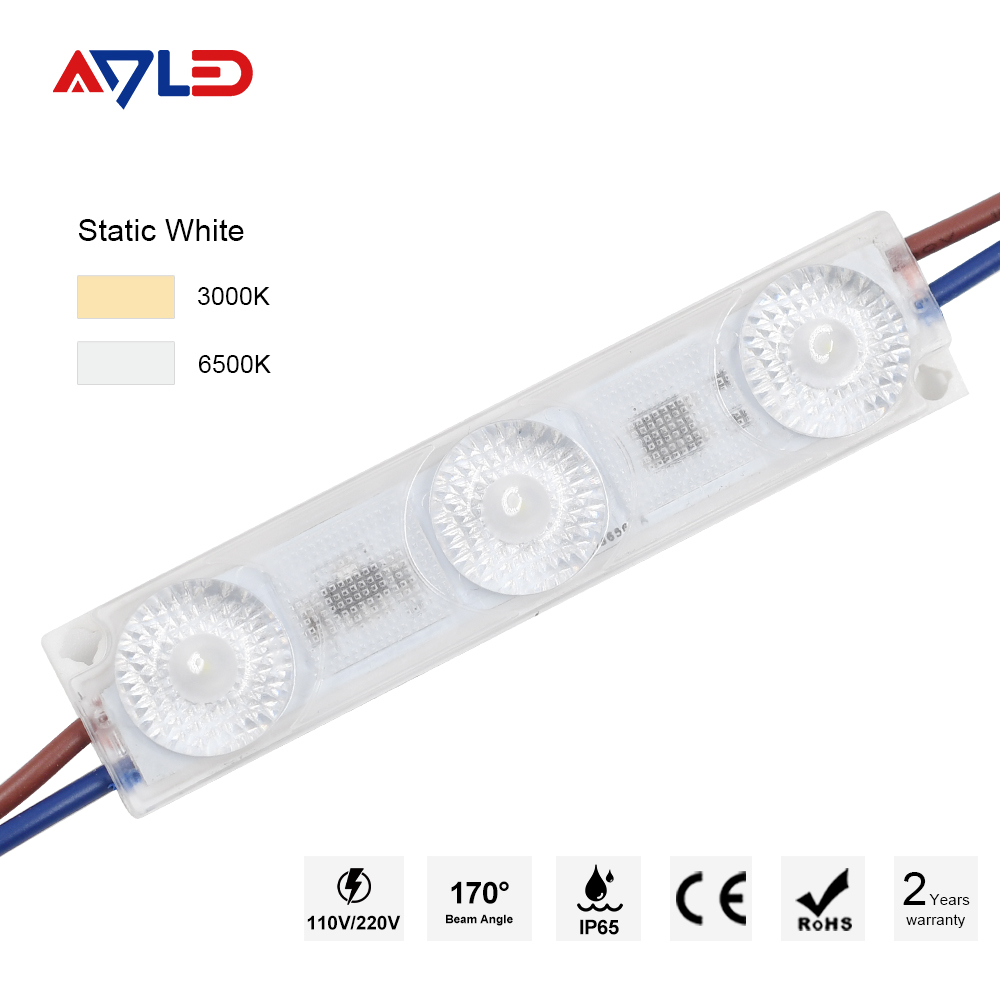

LED Light Modules for Signs – AC-Powered White Backlight Module for Illuminated Signage
ADM-7215-2835-3W-AC110/220
Voltage: 110V/220V
LED Type: SMD 2835
LED QTY: 3LEDs
Power: 1.5W
Color: 3000K/6500K
Beam angle: 170°
Size: 72x15x11mm
Driven Mode: Constant voltage
Standard Packaging: 20pcs/string
Warranty: 5 years
Certificate: UL, UKCA, CE and RoHS
LED Type: SMD 2835
LED QTY: 3LEDs
Power: 1.5W
Color: 3000K/6500K
Beam angle: 170°
Size: 72x15x11mm
Driven Mode: Constant voltage
Standard Packaging: 20pcs/string
Warranty: 5 years
Certificate: UL, UKCA, CE and RoHS
Quantity

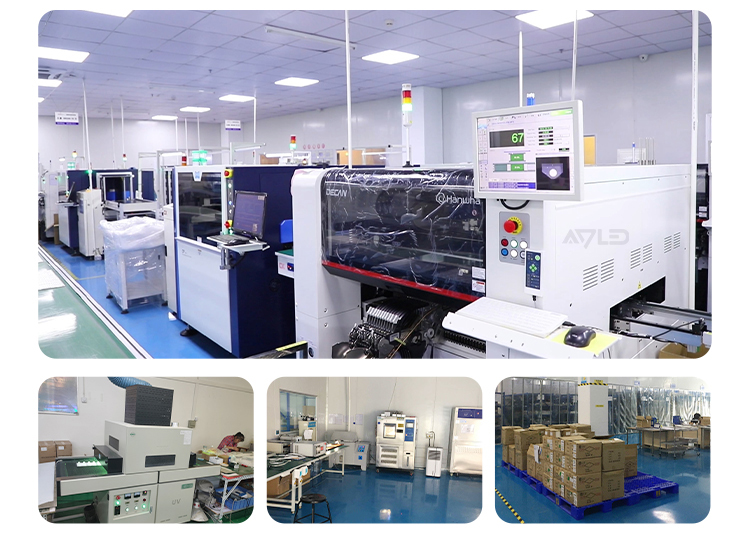

Professional Modul LED 220V Manufacturer & Supplier
Benefit from manufacturer direct sales and streamline your illuminated signage projects with our innovative high-voltage LED solutions. Our Modul LED 220V and 230V LED module offerings are designed for direct illumination, eliminating the need for complex wiring and power supplies. As a manufacturer direct source, we provide cost-effective and reliable white LED backlight module options for various applications. Our 110V 220V high voltage module designs simplify circuit integration, allowing for quick and efficient installation. Whether you require Modul LED 220V for international projects or 230V LED module solutions for specific regional needs, our direct sales model ensures competitive pricing. Furthermore, our white LED backlight module technology combined with our 110V 220V high voltage module focus on simplified high-voltage circuit design offers a streamlined and efficient approach to creating impactful illuminated signage.
What is Modul LED 220V?
A 220V LED module, also known as modul lampu LED 220V, is a high-voltage LED lighting unit designed to operate directly on 220V AC mains power—without the need for an external driver or transformer.
High Voltage 3LEDs 110V 220V AC LED Module Light
Modul LED 220V Specifications:
Code | LED Type | LED QTY | Voltage | Watts | Color | Beam angle | Driven Mode | Size | Warranty |
ADM-7215-2835-3WW-AC110V/220V | 2835 | 3LEDs | AC110V /220V | 1.5W | 3000K | 170° | Constant voltage | 72x15x11mm | 2 years |
ADM-7215-2835-3W-AC110V/220V | 6500K |
Modul LED 220V Dimensions:
AC110V/220V Unit: mm(inch)
Modul LED 220V Features:
• Use fewer modules for faster installation and lower cost per sign
• Prism optical lens（170°） for illuminating channel letters
• Can be used in 8-20mm channel letter depths
• Brightest lighting option in its class
• Suitable for damp locations (IP65)
Modul LED 220V Advantages
Our modul LED 220V is your perfect match. Designed for direct AC input, this white LED backlight module eliminates the need for external drivers, reducing wiring complexity and installation time.
Each 3 LED module delivers high brightness with wide beam coverage, making it ideal for large-scale signage and deep lightboxes. Manufactured by a trusted China LED module factory, we ensure consistent quality, waterproof protection, and long-lasting performance.
Perfect for lightboxes, outdoor signs, channel letters, and architectural lighting, our modul LED 220V offers the perfect blend of power, efficiency, and convenience.
Each 3 LED module delivers high brightness with wide beam coverage, making it ideal for large-scale signage and deep lightboxes. Manufactured by a trusted China LED module factory, we ensure consistent quality, waterproof protection, and long-lasting performance.
Perfect for lightboxes, outdoor signs, channel letters, and architectural lighting, our modul LED 220V offers the perfect blend of power, efficiency, and convenience.
Modul LED 220V vs 12V/24V LED Modules - What's the difference?
I will compare the differences between 220V and 12V 24V LED modules in terms of power input, power requirements, installation, wiring complexity, safety, waterproofing options, common use cases, cut-out/flexibility, etc., and you will be able to clearly see the differences of these white LED backlight module.
Feature | 220v LED Module | 12V / 24V LED Module |
Power Input | Direct AC 220V | Low voltage DC via LED driver or power supply |
Power Supply Required | ❌ No external power supply needed | ✅ Requires LED driver (12V or 24V) |
nstallation | Simple plug-and-play with AC input | Requires more wiring and driver setup |
Wiring Complexity | Less wiring (longer strings supported) | More wiring; shorter distances to avoid voltage drop |
Safety | ⚠️ Higher voltage, must be handled carefully | ✅ Safer for handling and installation |
Waterproof Options | Commonly IP65 or IP67 rated | Available in both indoor and outdoor versions |
Common Use Cases | Large outdoor signs, long lightboxes, building outlines | Retail signs, indoor lightboxes, detailed or compact layouts |
Cuttable / Flexible | Usually not cuttable; fixed string lengths | Highly customizable |
Brightness Efficiency | High brightness per module; fewer modules needed | Lower per module; may need more modules for large areas |
Heat Dissipation | Needs good ventilation or aluminum housing | Lower power = less heat, easier to manage |
Cost Efficiency | Lower total system cost (no driver, fewer modules) | Slightly higher overall cost with drivers and more modules |
Modul LED 220V Installation
Our LED module 220V, also known as an AC LED module, is designed for direct connection to 220V power without the need for an external driver, making installation faster and more cost-effective. Each backlight LED module string includes 50 white LED modules, offering high brightness and uniform illumination, ideal for large lightboxes, billboards, and signage projects. These white LED backlight module can be cut individually and reused as needed, but it's essential to properly insulate all exposed ends after cutting. For secure mounting, modules can be fixed using screws or double-sided adhesive, preferably on metal surfaces like aluminum to enhance heat dissipation. For better protection in areas with voltage fluctuations, we recommend using a surge protector. With easy installation, high performance, and reliable waterproof design, our white LED module series is a top choice for efficient backlighting solutions.
Modul LED 220V Application
The 220V LED module is a powerful and convenient lighting solution widely used in large-scale commercial and outdoor applications. As a white LED backlight module, it provides high brightness and uniform illumination, making it ideal for use in lightboxes, billboard signage, channel letters, and advertising displays. Thanks to its ability to run directly on AC power, this LED module lamp eliminates the need for external drivers, reducing installation time and costs. In architectural lighting, the LED lamp module is often used to outline buildings, highlight structural features, or illuminate facade signage. Its waterproof design ensures reliable performance in outdoor environments, while its high efficiency and long lifespan make it a smart choice for both indoor and outdoor projects that demand strong, consistent lighting. Whether it's for branding, decoration, or functional lighting, the 220V LED module is a trusted solution across retail, hospitality, and urban landscape settings.
Modul LED 220V FAQs
Which is better, 12V led modules or Modul LED 220V？
It depends on your project. 12V LED modules are safer and ideal for small or indoor applications. Modul LED 220V is better for large outdoor signs due to longer runs and easy installation without a power supply.
Do I need a separate power supply for Modul LED 220V?
No, these LED module 220v work directly with AC mains power and don’t require an additional driver.
Are Modul LED 220V safe to use?
Yes, but proper installation by qualified electricians and waterproof sealing are essential to ensure safety.
Can Modul LED 220V be used outdoors?
Yes, many 220V LED modules are waterproof (IP65 or higher) and suitable for outdoor applications like billboards and lightboxes.
