Module Light 12V 3LEDs 2835 SMD 1W
ADM-6413-2835-3X
2835 LED Module Light, 12V, 3LEDs, 1W, IP68, 175°, Constant voltage, Single Color 7000K, 50pcs/string, CE RoHS Listed.
Quantity
Professional Module Light Manufacturer & Supplier
Looking for high-quality LED sign solutions? Partner with a top-tier module manufacturer dedicated to excellence. Our module light offerings are renowned for their superior performance and reliability. We specialize in crafting exceptional red LED module products, perfect for a wide range of applications requiring vibrant and efficient lighting. When you buy LED modules from us, you're not just purchasing a product; you're investing in a partnership built on trust and exceptional customer service. Our commitment to quality extends beyond our module light production to encompass comprehensive support and expert guidance. Whether you need a single red LED module for a small project or are looking to buy LED modules in bulk for large-scale deployments, our team is ready to assist you every step of the way, ensuring your complete satisfaction with our premium module light solutions.

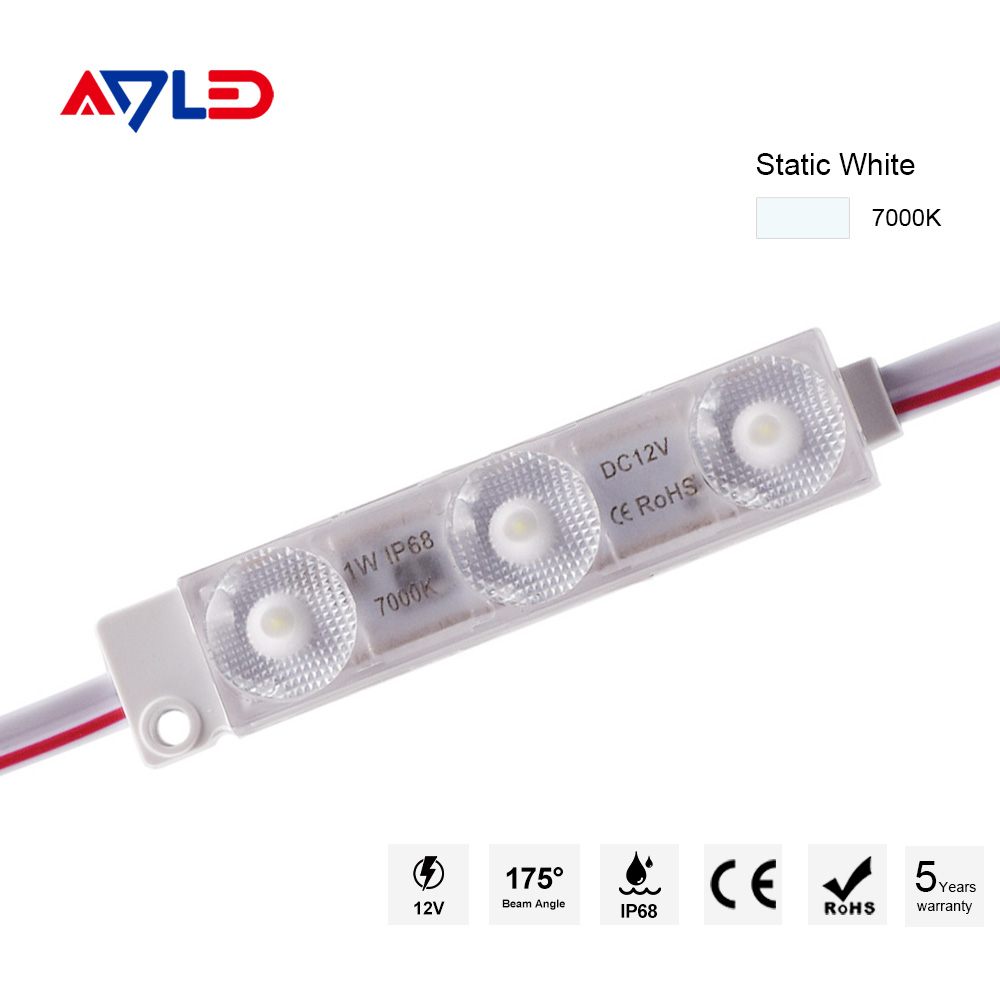

3LEDs 12V SMD 2835 Backlight LED Module Light
Module Light Specifications:
Code | LED Type | LED QTY | Voltage | Watts | Color | Beam angle | Driven Mode | Size | Warranty |
ADM-6413-2835-3W | 2835 | 3LEDs | DC12V | 1W | 7000K | 175° | Constant voltage | 63.5x13x10.1mm | 5 years |

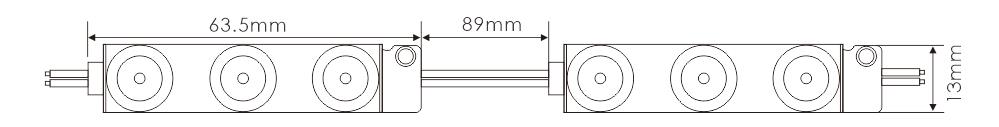

Module Light Dimensions:
DC12V

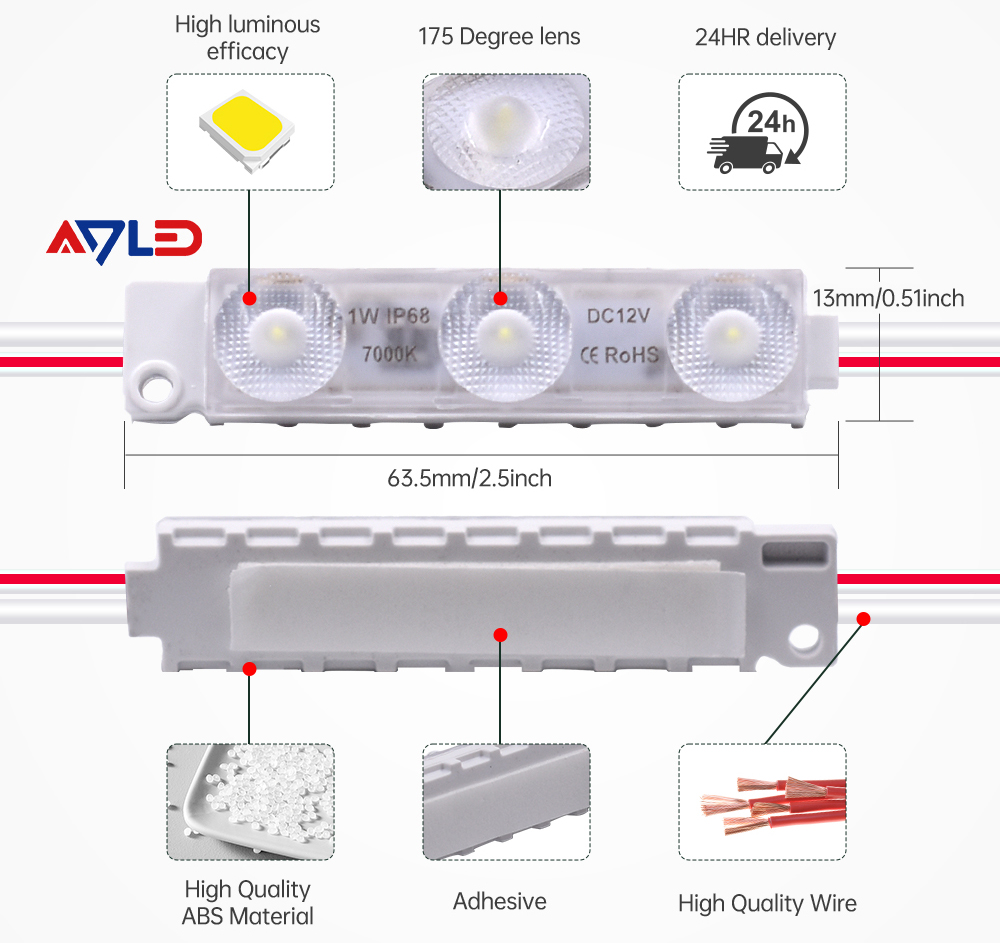

Module Light Detail Drawing
Our LED module light features a 3 LED module light design with a 175° wide-angle lens for uniform illumination, ideal for signage and backlighting. Using high-quality LED chips, pure copper wires, and durable ABS raw materials, this 12V LED module light ensures stable, energy-efficient performance. Strong 3M adhesive backing allows easy installation. As a reliable LED module light source, it offers excellent brightness, long lifespan, and consistent color. We provide competitive LED module lights price and high-performance LED module lighting solutions for various applications.
Module Light Features
• Exclusive automatic production line,ensuring high quality standard and fast lead time.
• Secondary soldering process after screwed,achieving more stable conductivity.
• Online optic testing system equipped.
• Low voltage：DC12V(CC/CV/Non-polarity/High efficiency optional)
• Constant voltage.
• 175°optic optional,suitable for 5-25cm(2-10inch) depth channel letters & lighting boxes.
• General defect rate below 100ppm.
• IP68 protection grade,suitable for outdoor applications.
• LM79/80 test approved.
• CE/RoHS approved.
• Secondary soldering process after screwed,achieving more stable conductivity.
• Online optic testing system equipped.
• Low voltage：DC12V(CC/CV/Non-polarity/High efficiency optional)
• Constant voltage.
• 175°optic optional,suitable for 5-25cm(2-10inch) depth channel letters & lighting boxes.
• General defect rate below 100ppm.
• IP68 protection grade,suitable for outdoor applications.
• LM79/80 test approved.
• CE/RoHS approved.
Module Light In EU Warehouse
Module Light Emitting Color
ADLED’s LED module light stands out with vibrant color options including red LED module, green, blue, RGB, and color temperatures from 3000K to 10000K (3000K, 4000K, 6500K, 7000K, 10000K). Each 3 LED module light uses high-quality chips to ensure brightness and color consistency. As a trusted LED module light source, our 12V LED module light is ideal for signage and display. With advanced production lines, ADLED delivers customized LED module lighting solutions with stable quality and competitive lead times.
Module Light Light Distribution Curve
Module Light illuminance Distribution Diagram
Note: The Curves indicate the illuminated area and the average illumination when the luminaire is at different distance.
Module Light in LED Channel Letter
After you buy LED modules, you may wonder how to install them in LED Channel letters properly. Whether it’s spacing for different thicknesses, how many modules a sign needs, or the surface brightness achieved — everything is clearly shown in the table below. This 3 LED module light is a powerful LED module light source designed for easy use. Our 12V LED module light ensures stable, efficient performance, making it the ideal choice for professional LED module lighting projects.

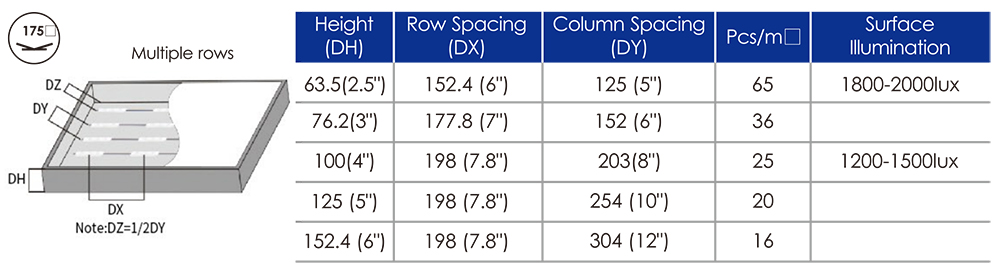

Module Light in LED Light Boxes
Below is the installation and illumination recommendation for different lightboxes using our LED module light.

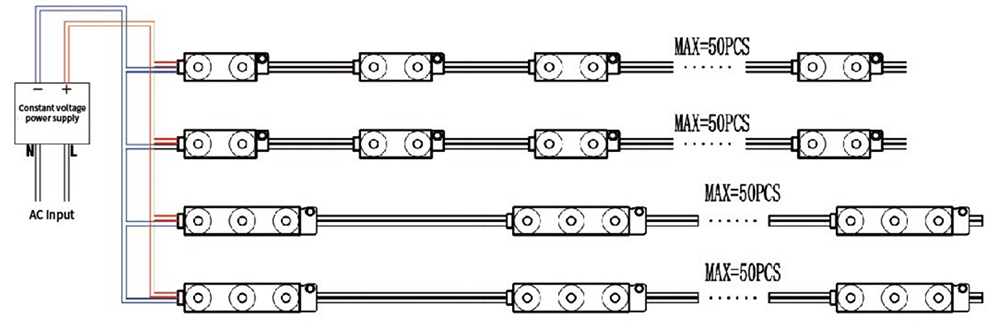

Module Light Installation Guide
This LED module light comes in a cascade of 50 pcs per string. When installing, be sure to use a 12V LED module light power supply. One-end power feeds up to 50 modules with no voltage drop; for longer runs, two-end power allows up to 100 modules. As a reliable LED module light source, this 3 LED module light offers stable and efficient LED module lighting performance.

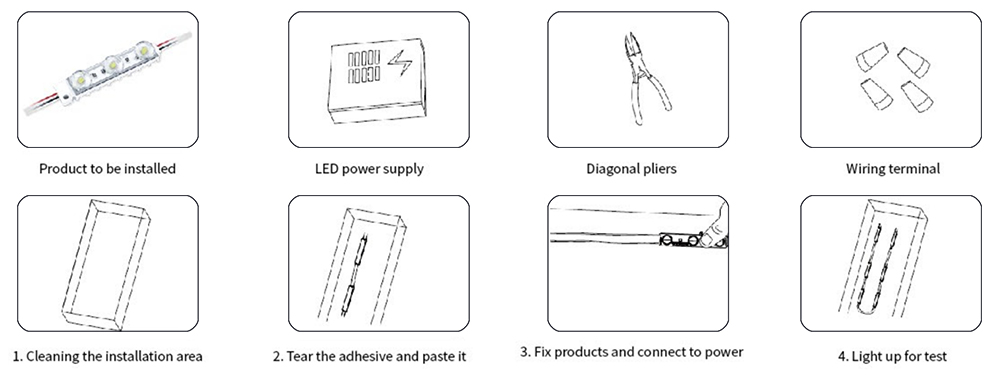

Module Light Installation Diagram and Procedure
Whether you're installing a white LED module light or a red LED module, you can choose adhesive backing or screw mounting. For any 3 LED module light, the key is to ensure each LED module light source is securely fixed.
Module Light FAQ
What is a LED module light?
A LED module light is a compact, pre-wired lighting unit designed for signage, channel letters, and backlighting. It provides a reliable LED module light source with consistent brightness, ideal for commercial and decorative LED module lighting applications.
What is the difference between a red LED module and a white LED module?
The red LED module emits bright red light and is commonly used in signs that require colored illumination. White LED module lights are available in various color temperatures (3000K to 10000K) and are suitable for general-purpose lighting.
How many 3 LED module lights can I connect in one line?
Each string includes 50 pcs of 3 LED module light. When powered from one end, you can connect up to 50 modules using a 12V LED module light driver with no voltage drop. For longer setups, two-end power allows up to 100 modules.
What power supply should I use for a 12V LED module light?
Always use a stable 12V LED module light power supply with sufficient wattage based on the total power consumption. Ensure good ventilation and proper wiring for safety and performance.
How do I install LED module lights?
You can install LED module lights using the pre-applied adhesive backing or screw them into place. Whether you buy LED modules for white or red lighting, secure installation is key to long-lasting and stable performance.
