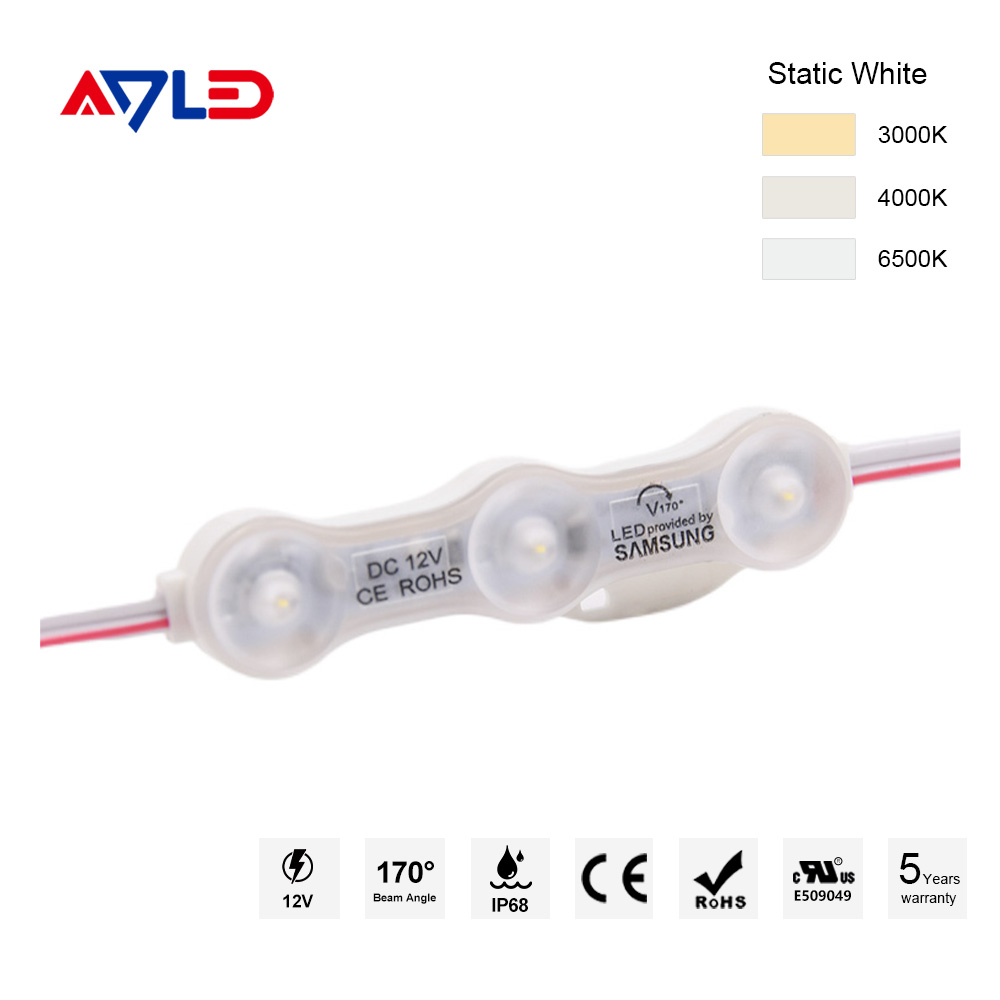

Samsung LED Module 12V 3LEDs 2835 IP68
ADM-6815-2835-3
2835 LED Module Light, 12V, 3LEDs, 1.2W, IP68, 170°, Constant voltage, Single Color 3000K/4000K/6500K, 50pcs/string, CE RoHS UL Listed.
Quantity
Professional Samsung LED Module Manufacturer & Supplier
As a top module manufacturer, we're proud to offer one of our best-selling lighting solutions: the Samsung LED light module. Utilizing top Korean brand LED chips, including the highly efficient LED module 2835 Samsung chip, these modules deliver exceptional performance and reliability. Our Samsung 3 LED module configurations are a popular choice among signage professionals due to their consistent output and beautiful aesthetics. The 1.2W power consumption of each Samsung LED modules for signage makes them ideally suited for a wide range of illuminated letters and light boxes. These LED module IP68 rated modules offer robust protection against the elements, ensuring long-lasting performance in outdoor applications. Whether you need a single Samsung LED light module or are looking to equip a large-scale project with high-quality LED module 2835 Samsung chip products, their 1.2W power and attractive design make them a perfect fit, and the LED module IP68 rating ensures durability as a key factor in why these are best-selling Samsung 3 LED module lights.
50pcs per string Samsung LED Module
This compact product comes pre-assembled in strings of 50 modules, making setup a breeze. Trust in its quality, backed by UL, CE and RoHS certifications.
3LEDs 12V Constant Voltage Samsung LED Module Light
Samsung LED Module Specifications:
Code | LED Type | LED QTY | Voltage | Watts | Color | Beam angle | Driven Mode | Size | Warranty |
ADM-6815-2835-3WW | 2835 | 3LEDs | DC12V | 1.2W | 3000K | 170° | Constant voltage | 68x15x9.5mm | 5 years |
ADM-6815-2835-3NW | 4000K | ||||||||
ADM-6815-2835-3W | 6500K |

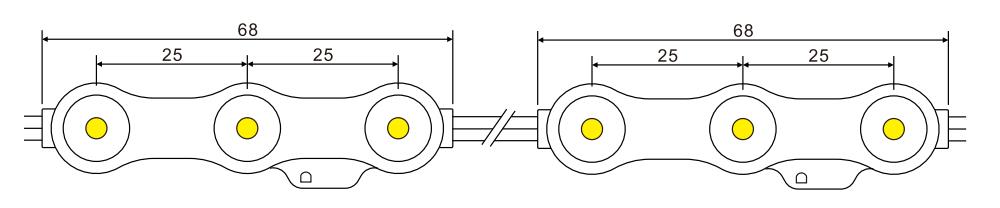

Samsung LED Module Dimensions:
DC12V
Samsung LED Module Features:
• Powered by Samsung LED
• Ultrasonic molding process
• Protection class up to Ip68
• Constant Voltage Technology
• 170° degree lens
• Ultrasonic molding process
• Protection class up to Ip68
• Constant Voltage Technology
• 170° degree lens
Benefits of Samsung LED Module Lights
Our Samsung LED module series offers a powerful and versatile lighting solution for various applications, from channel letters to backlit signs. Here's why they stand out:
Durable & Long-Lasting
Powered by genuine Samsung brand LEDs, these modules are built for a durable, long lifespan, ensuring consistent performance and reducing the need for frequent replacements.
Superior Waterproofing (IP68 Rated)
Thanks to an advanced ultrasonic molding process and durable ABS material, these Samsung LED modules boast an impressive IP68 waterproof rating. This means they can even operate reliably underwater, making them suitable for demanding outdoor and wet environments.
Flexible & Easy to Install
Each Samsung LED light strip module string comes with 50 individual Samsung 3-LED modules connected by flexible cables. This design allows for easy manipulation and installation, adapting to various shapes and spaces.
High Brightness for Impactful Signage
We offer a range of high-brightness LED modules, including 0.72w, 1.2w, and 1.8w options. These high-lumen outputs make them an excellent choice for creating bright and impactful channel letters and backlit LED sign boards, ensuring your message is seen clearly.

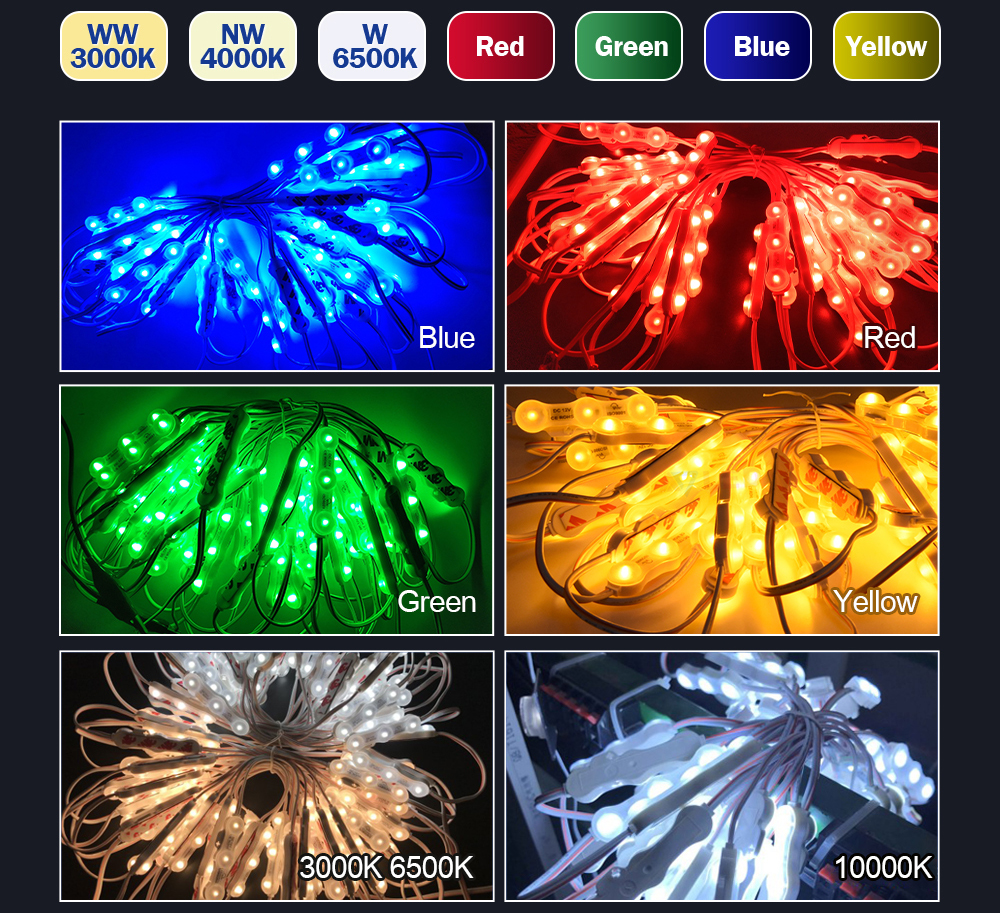

Color of LED Module

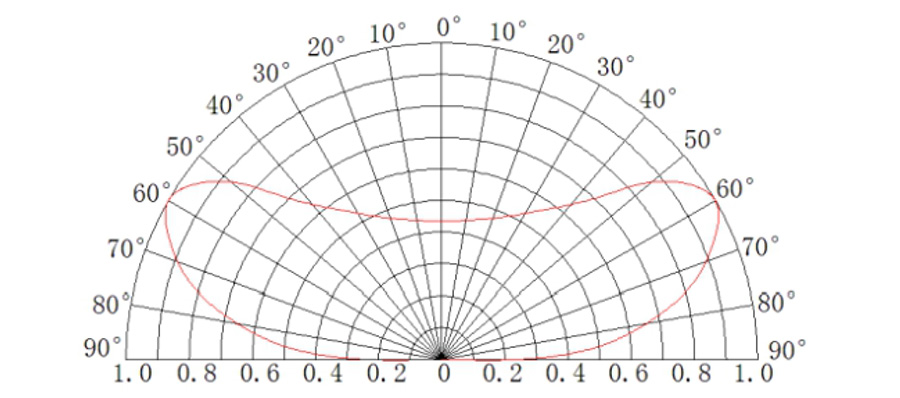

Samsung LED Module Distribution Graph
Samsung LED Module Test Report

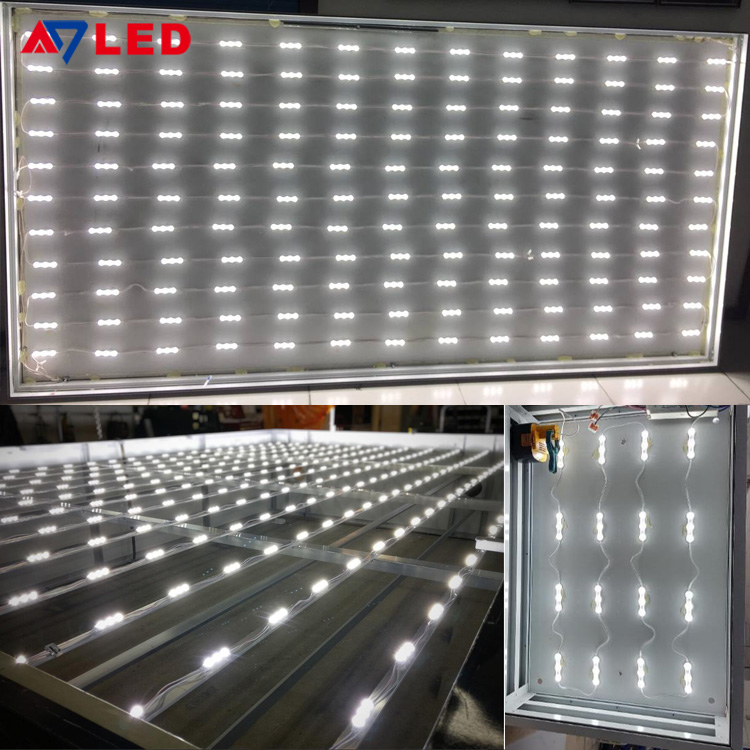

Samsung LED Module Applications
Signage and Channel Letters: LED modules are commonly used to illuminate signs and channel letters, providing bright and customizable lighting.
Backlighting and Accent Lighting: They can be used to provide a soft, ambient glow or to highlight specific features in a room or building.
Display Lighting: LED modules are used in various display applications, such as in store windows, trade show displays, and other visual displays.
Decorative Lighting: They can be used for decorative purposes in both commercial and residential spaces, adding a touch of elegance or creativity.
Outdoor Lighting: Many LED modules are designed for outdoor use and can be used for landscape lighting, accent lighting, and other outdoor applications.
Under-Cabinet Lighting: They can be used to illuminate cabinets and shelves, providing convenient and functional lighting.
Backlighting and Accent Lighting: They can be used to provide a soft, ambient glow or to highlight specific features in a room or building.
Display Lighting: LED modules are used in various display applications, such as in store windows, trade show displays, and other visual displays.
Decorative Lighting: They can be used for decorative purposes in both commercial and residential spaces, adding a touch of elegance or creativity.
Outdoor Lighting: Many LED modules are designed for outdoor use and can be used for landscape lighting, accent lighting, and other outdoor applications.
Under-Cabinet Lighting: They can be used to illuminate cabinets and shelves, providing convenient and functional lighting.

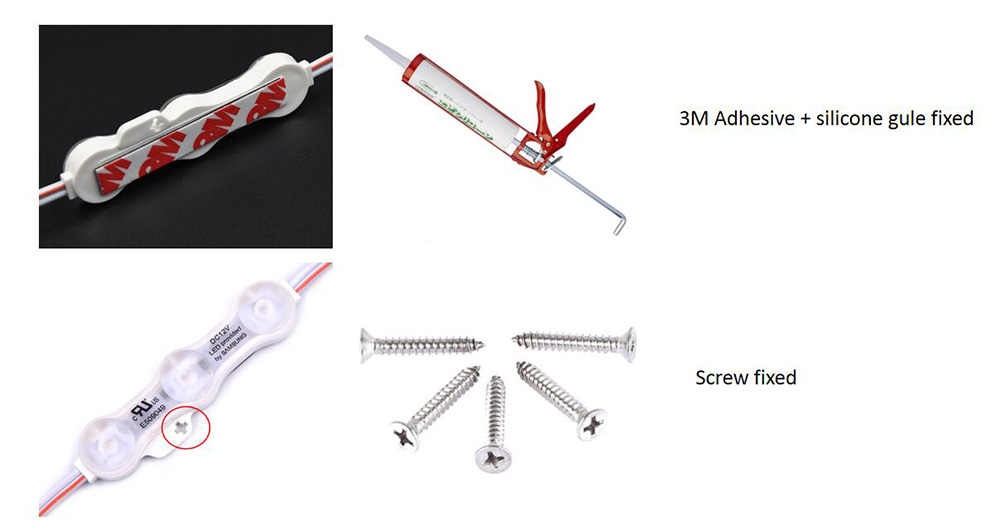

Samsung LED Module Installation
A. Max. number of modules in one chain when the power supplied from single end -50pcs
B. Max. number of modules in one chain when the power supplied from both ends -100pcs
B. Max. number of modules in one chain when the power supplied from both ends -100pcs
Types of Samsung LED Module
 |  |  |
IP68 LED Module | 2835 LED Module | LED Module IP68 |

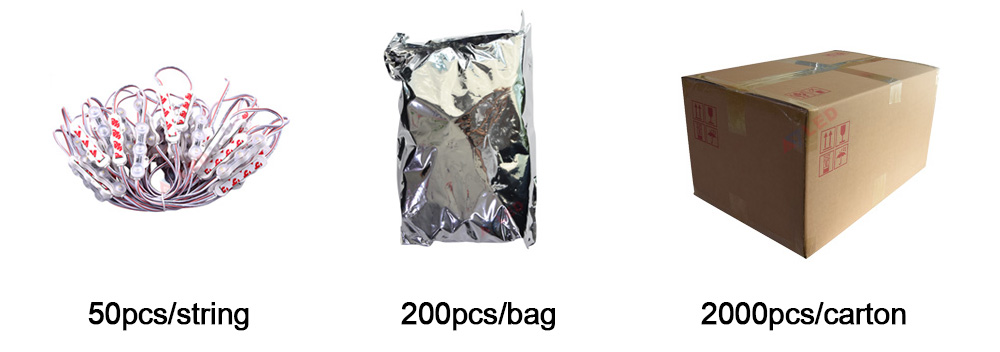

Samsung LED Module Package
Samsung LED Module Exhibition
Advantages of LED Module Manufacturer
Adled Light Limited is a well-konwn national high-tech enterprise in China's optoelectronics industry. Established in 2010 and based in Shenzhen, it specializes in researching, developing, producing, and selling LED products for advertising signage and LED lightboxes. The company holds multiple independent intellectual property rights and core technologies, providing high quality LED modules, LED bar lights widely used in advertising signs and LED lightboxes.
Samsung LED Module Cerfication
Samsung LED Module FAQ
What certifications do LED modules typically have?
With esteemed certifications from UL, IP68, LM80, CE and RoHS, you can trust the reliability and quality of LED module.
How many modules are typically in one string?
Our Samsung LED module is 50 modules per string, making installation much easier.
What colors are available for LED modules?
LED modules come in a wide range of colors:
White Light: Warm White: (2700K-3000K) for a cozy, inviting atmosphere.
Natural White: (4000K-4500K) resembling natural daylight.
Daylight White: (5000K-6500K) with a bluish tint, ideal for task lighting.
Single Colors: Red, Green, Blue, Amber, Yellow, Purple, etc.
RGB:RGB LED modules can produce a vast spectrum of colors by mixing the primary colors.
RGBW:RGBW LED modules offer the versatility of RGB with the addition of a dedicated white LED for purer white light.
Tunable White: Allows adjustment of the white light color temperature from warm to cool.
Natural White: (4000K-4500K) resembling natural daylight.
Daylight White: (5000K-6500K) with a bluish tint, ideal for task lighting.
Single Colors: Red, Green, Blue, Amber, Yellow, Purple, etc.
RGB:RGB LED modules can produce a vast spectrum of colors by mixing the primary colors.
RGBW:RGBW LED modules offer the versatility of RGB with the addition of a dedicated white LED for purer white light.
Tunable White: Allows adjustment of the white light color temperature from warm to cool.
Are LED modules waterproof?
ADLED LED modules are designed with varying degrees of water resistance or waterproofing.
