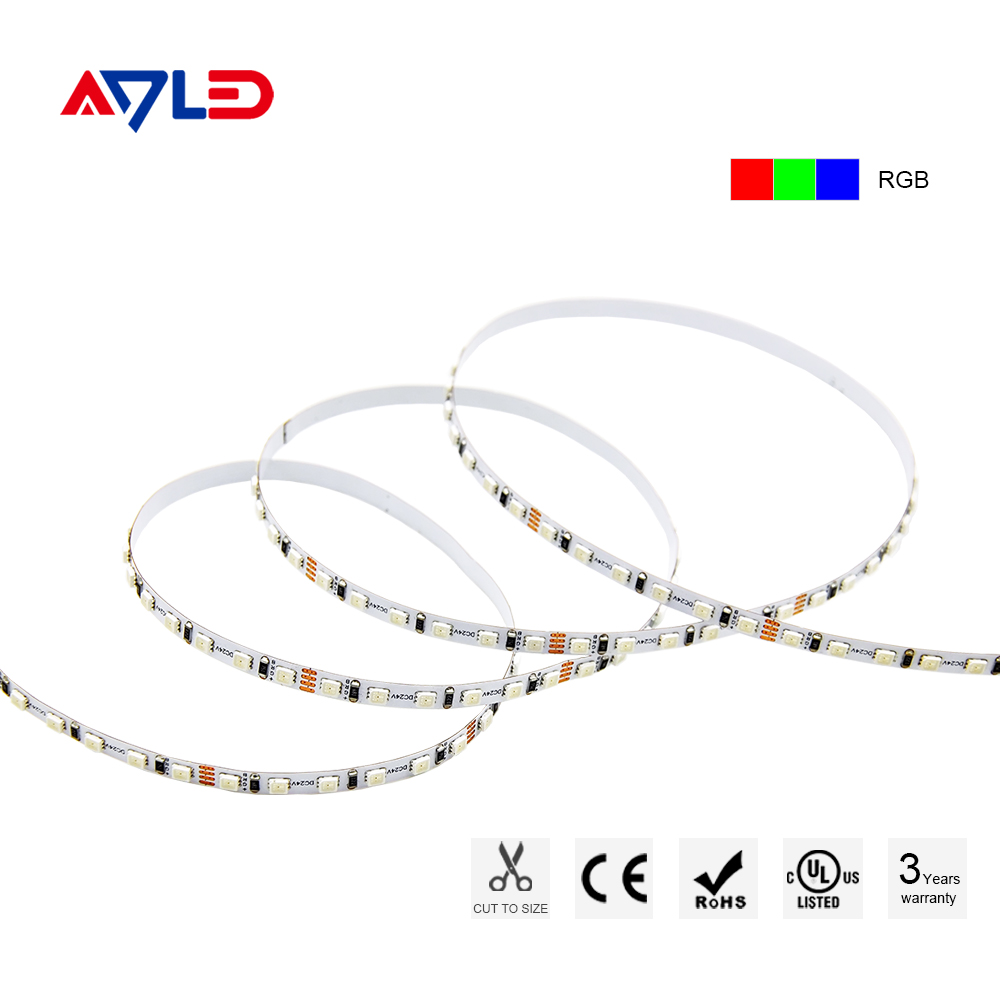

Small LED Strip SMD 2835 24V 120LEDs/M 5mm RGB Color Changing
ADS-Y2835-120RGB-24-5
SMD 2835 LED Strip Lights, 24V, 5mm, 14.4W/M, IP20, RGB Color Changing, CE RoHS UL Listed.
Quantity
Professional Small LED Strip Manufacturer
Small LED strip offers exceptional versatility and a miniature design for a wide range of applications. These small LED strip, also known as miniature LED strip lights, mini LED strip, and micro LED strip lights, are perfect for tight spaces and intricate designs. Provided as 5 meter RGB LED strip lights, our small LED strip delivers dynamic rgb colour changing LED strip light effects, enabling captivating lighting displays. The running RGB LED strip options offer dynamic chasing and flowing color patterns. For discreet lighting solutions, our ultra thin LED strip lights and slim LED strip lights, also referred to as narrow LED strip, provide a sleek and low-profile design. We offer a diverse range of ultra thin strips, including both single-color and RGB color-changing options to meet various lighting needs. Our small LED strip is an excellent option.
120LEDs/m 24V RGB Color Changing SMD 2835 LED Strip Light
Small LED Strip Specifications
Code | LED Type | Votage | LED QTY | Color | Watts | Lumen | Efficiency | Pitch | Width |
ADS-Y2835-120RGB-24-5 | 2835 | DC24V | 120 | Red | 4.8W/m | 96Lm | 20Lm/W | 50mm | 5mm |
Green | 4.8W/m | 432Lm | 90Lm/W | ||||||
Blue | 4.8W/m | 76.8Lm | 16Lm/W | ||||||
Mixed | 576W/m | 216Lm | 40Lm/W |

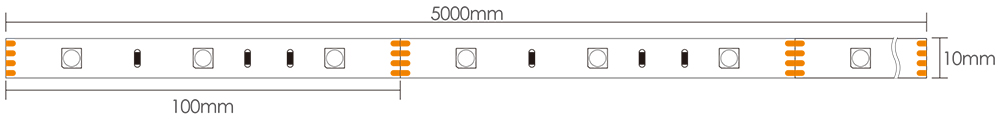

Small LED Strip Dimensions
DC24V
Small LED Strip Features
- RGB color changing create festive illumination
- 2835 RGB LED as light source, stable and high brightness
- Top-tier raw materials, durable longer lifespan
- Standard packed in 5m(16.4ft) per roll, IP20/IP65/IP67/IP68 waterproof LED strips
- Color jumping or gradient controlled by LED strip controller
Thin LED Strip
ADLED Light small LED strip and thin LED strip options offer versatile, space-saving lighting solutions for any environment. Designed to operate as LED strip lights low voltage, they provide safe and energy-efficient illumination. For dynamic color effects, explore our strip LED multicolor, smart LED strips, and multicolor LED strip lights, which deliver vivid and customizable lighting experiences.
The ultra thin rgb LED strip and 5mm rgb LED strip are perfect for discreet installations where sleek design matters, while the ultra bright rgb LED strip ensures vibrant, eye-catching illumination. These continuous LED strip lights guarantee smooth, uninterrupted lighting ideal for both residential and commercial applications. Whether you need low voltage LED light strips for energy savings or multicolor effects for creative décor, our range offers reliable and high-quality solutions.
The ultra thin rgb LED strip and 5mm rgb LED strip are perfect for discreet installations where sleek design matters, while the ultra bright rgb LED strip ensures vibrant, eye-catching illumination. These continuous LED strip lights guarantee smooth, uninterrupted lighting ideal for both residential and commercial applications. Whether you need low voltage LED light strips for energy savings or multicolor effects for creative décor, our range offers reliable and high-quality solutions.

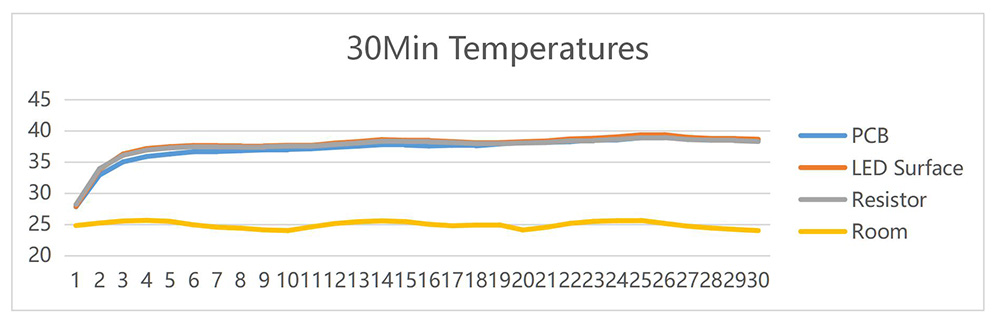

Small LED Strip Temperature Curve
The following curve based on 30 minutes testing data. The Temp. changes after powering within 30 minutes.
The x-axis indicates the minutes from 1 minutes to 30 minutes.
The y-axis indicates the changes of temperatures in Soldering Pads, LED surface, PCB, IC and Room.
2835 vs 5050 LED Strip
Our small LED strip is available with both 2835 and 5050 LED chips to suit different lighting needs. The 2835 chip on the small LED strip offers higher luminous efficiency and lower heat output, making it ideal for energy-saving and long-lasting applications. In contrast, the 5050 chip on the small LED strip provides brighter light with multi-color capability, often used in RGB or RGBW strips for vibrant effects. Choosing between the 2835 and 5050 options depends on whether you prioritize efficiency and compactness or brightness and color versatility.
Small LED Strip Application
Our small LED strip is ideal for compact and versatile lighting solutions throughout the home and commercial spaces. Enhance safety and style with LED light strips for steps, providing clear visibility and a modern look. Brighten your windows with window LED strip lights, creating attractive accents and improving curb appeal. In kitchens, LED strip lights kitchen worktop offer focused, energy-efficient illumination perfect for cooking and prep areas. Retail environments benefit greatly from shop LED tape lights, which highlight products and enhance the shopping experience.
Installing RGB LED Strip Lights
Install RGB LED Strips
Installing an RGB small LED strip is simple and versatile, perfect for adding vibrant colors to any space. Before installation, measure the area and cut the small LED strip only at designated cut points to avoid damage. Connect the RGB small LED strip to a compatible controller and power supply, ensuring correct wiring for the red, green, and blue channels. Use adhesive backing or mounting clips to secure the small LED strip in place, whether on walls, furniture, or under cabinets. Proper installation of the RGB small LED strip allows you to create dynamic lighting effects with easy control over color and brightness.
Small LED Strip FAQ
How do LED strip lights work?
LED strip lights consist of small light-emitting diodes (LEDs) mounted on a flexible circuit board. When powered by a DC voltage (commonly 12V or 24V), electricity flows through the LEDs, causing them to emit light. The flexible design allows LED strips to bend and be cut to size, making them ideal for customizable lighting.
How to install LED strip lights under cabinets?
To install LED strip lights under cabinets, first clean the surface thoroughly. Cut the strip to the required length at marked points if needed. Peel off the adhesive backing and firmly stick the LED strip to the underside of the cabinet. Connect the LED strip to a compatible power supply and controller, then test the lights to ensure proper operation.
What wire is best for LED strips?
Use low-voltage, flexible, stranded copper wire rated for the current your LED strip requires. Commonly, 18 to 22 AWG wire is used for typical LED strip installations. For longer runs or higher power LED strips, thicker wire (lower AWG number) helps reduce voltage drop and ensures consistent brightness.
What's the difference between SMD 3528, 5050, 2835, 5730, etc. LEDs?
These numbers refer to the LED chip size and type:
3528: Smaller chip, lower brightness, used in decorative lighting.
5050: Larger chip with three diodes, supports RGB color mixing and higher brightness.
2835: More efficient and brighter than 3528, with better heat dissipation.
5730: Even larger and brighter, often used for high-output lighting needs.
3528: Smaller chip, lower brightness, used in decorative lighting.
5050: Larger chip with three diodes, supports RGB color mixing and higher brightness.
2835: More efficient and brighter than 3528, with better heat dissipation.
5730: Even larger and brighter, often used for high-output lighting needs.
