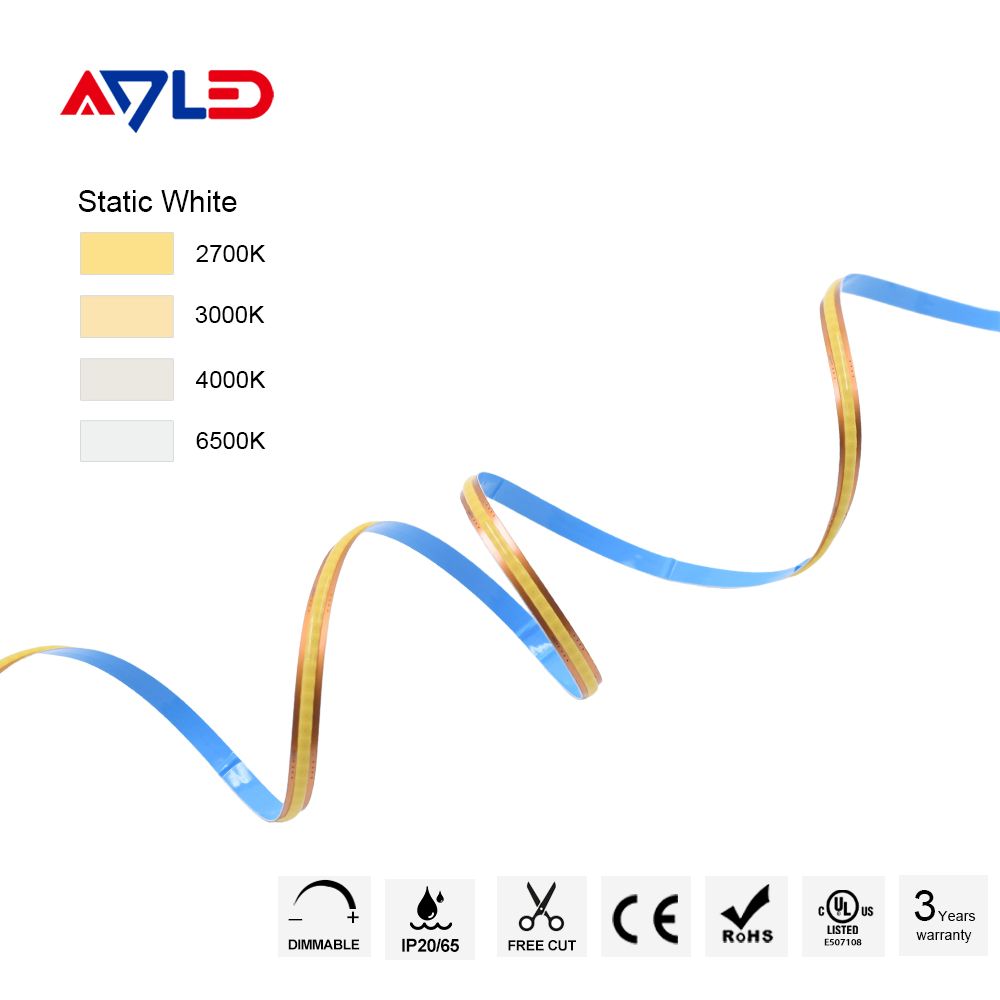

Strip LED COB Dimmable High CRI 24V Natural White Wholesale Cut to Length
ADS-YCOB-480X-24-F
Spotless COB LED Strip Lights, 24V, 8mm, 600LM, CRI90, 10W/M, IP20, Dimmable, Single Color 2700K/3000K/4000K/6500K, CE RoHS Listed.
Quantity
Professional Strip LED COB Manufacturer
Experience ultimate flexibility with our strip LED COB, designed for seamless integration into any project. This innovative strip LED COB offers the unique advantage of being cut to length LED strip lights at any point, eliminating the limitations of traditional cut marks and providing truly customizable illumination. Whether you need a short accent light or a long run, this feature, combined with its linkable strip light design, allows for effortless customization. The strip LED COB boasts a high cri LED strip, ensuring accurate color rendering, and delivers a smooth, dotless LED tape effect thanks to its advanced COB technology. Available as a 24V COB LED strip and in a natural white strip light option, this strip LED COB provides consistent and high-quality illumination across its entire COB LED strip 5m length. This dimmable strip light offers further control over your lighting environment. Strip LED COB is the ideal solution for any custom lighting project. This strip LED COB is easy to use.
What is Reel-to-reel Strip LED COB?
Utilizing advanced roll-to-roll technology, this strip LED COB features a free-cut design with no fixed cutting points. This allows for arbitrary length adjustments, truly meeting customized needs. Ideal for display cabinets, home lighting, commercial spaces, and more, it reduces material waste and improves installation efficiency. The uniform, dot-free light output and stable quality make it a perfect choice for high-end lighting projects.
Strip LED COB Dimmable High CRI 24V Natural White Wholesale Cut to Length
Strip LED COB Specifications
Code | LED Type | LED QTY | Votage | Color | Watts | Lumen | Efficiency | CRI | Pitch | Width |
ADS-YCOB-480WRW-24-F | COB | 480 | DC24V | 2700K | 10W/m | 450Lm | 45Lm/W | 90 | Free Cut | 8mm |
ADS-YCOB-480WW-24-F | 3000K | 500Lm | 50Lm/W | |||||||
ADS-YCOB-480NW-24-F | 4500K | 550Lm | 55Lm/W | |||||||
ADS-YCOB-480W-24-F | 6000K | 600Lm | 60Lm/W |

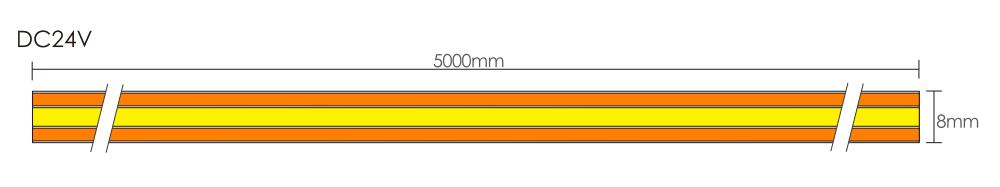

Strip LED COB Dimensions
DC24V
Strip LED COB Features
- Reel-to-reel PCB, no more solder joints at every half meter, which eliminates common issues like false soldering, or inaccurate length caused by lap solder in conventional LED strips.
- Chip-on-Board design, high density LED, even and uniform lighting.
- Free-Cut design with a straight line of copper revealed on surface, the ultimate solution of small cut, flexible installation in furniture lighting or decorative lighting.
- Double layer 2oz FPC, balancing Voltage drop, heat dissipation and flexibility.
Strip LED COB Cuttable Anywhere
Strip LED COB Cuttable Anywhere allows seamless cutting at any point along the LED strip, offering maximum flexibility for custom lengths. It delivers uniform, dot-free lighting with no dark spots, making it ideal for high-end residential, commercial, and display lighting applications. Easy to install and perfect for precise, clean lighting designs.
Roll-to-roll Strip LED COB PCB Board VS standard
Plated Board | 0.5m Plated Board |
 |  |
Reel-to reel PCB, no solder joints for whole reel, high stability | With solder joints every 0.5m, increasing the dimensional tolerance |
Avoid problems like fake welding, or inaccurate length | Potential risk for fake welding |

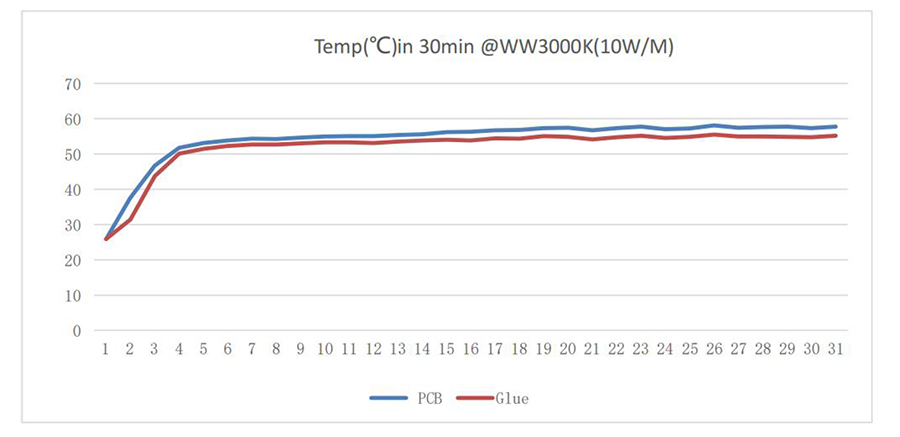

Strip LED COB Temperature Curve
The above curves indicate the temp. changing in glue & PCB within 30 minutes after powering on under the ambient temperature of 25 ℃.

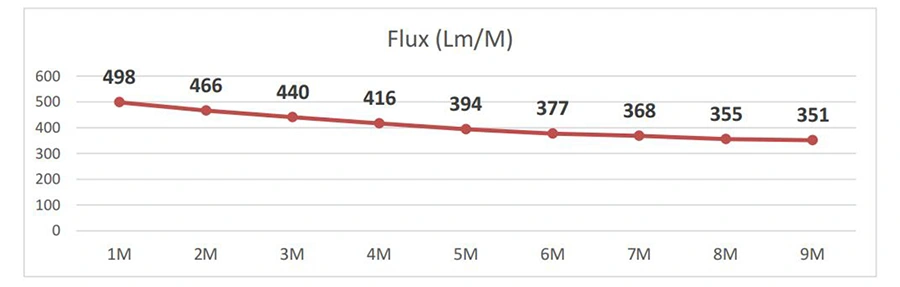

Strip LED COB Brightness Consistency
The following charts shows the parameters on each meter based on 9M length.
From above chart, please connect 9M at most by one-end power to keep brightness consistency.

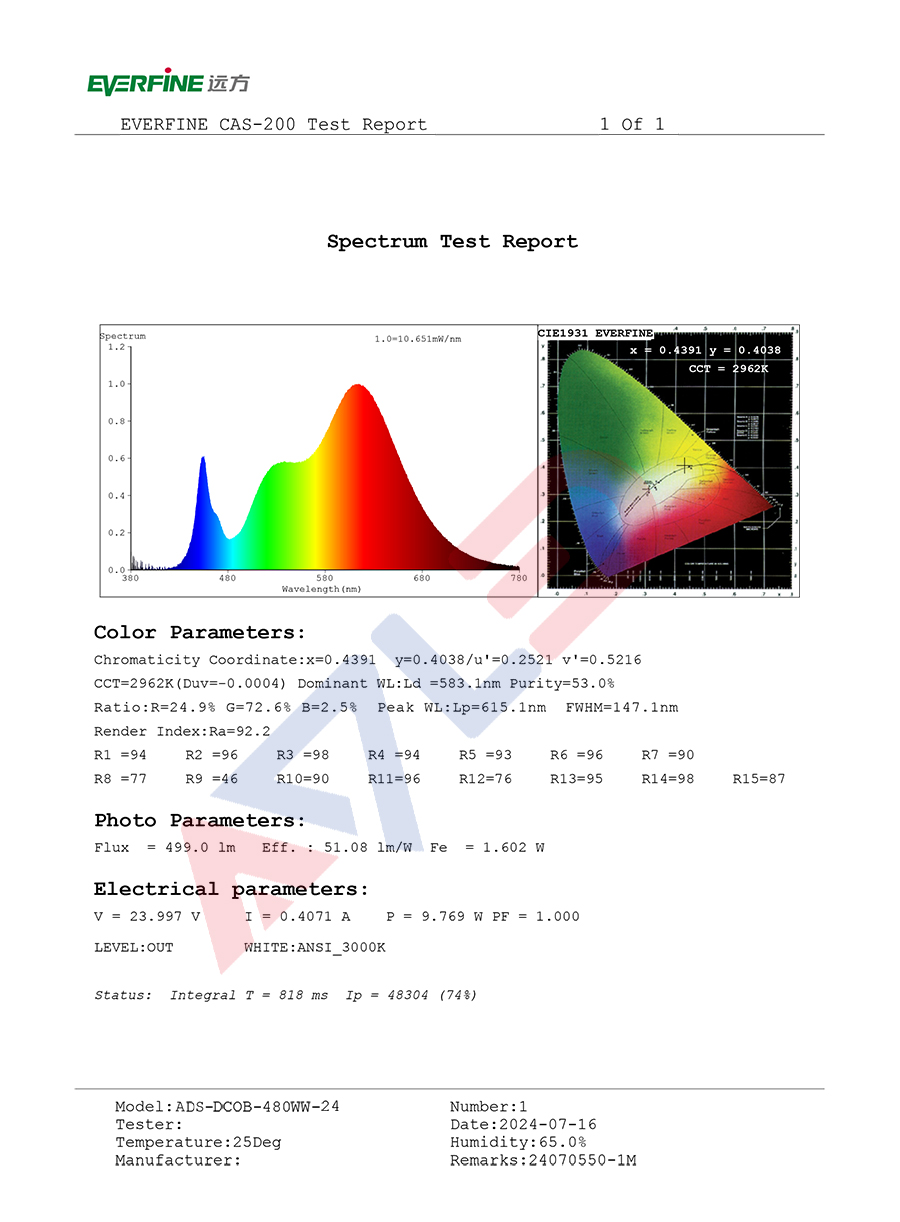

Strip LED COB Test Report
Types of Strip LED COB
 |  |  |
Best LED Light Strips | Commercial LED Strip | Small LED Strip |
 |  |  |
Most Efficient LED Strip | Smart LED Strip | Side Emitting LED Strip Lights |
Wired LED Strip Lights
Make sure of the total watts of LED Strip lights is less than 80% of the power supply's max output.
Match the polarities according to the mark ('+' and '-') in the PCB while connecting.
Application of Strip LED COB
Strip LED COB lights are a top choice for modern home lighting due to their uniform glow and dot-free design. Whether you're enhancing a living room with LED strip lights or creating a cozy atmosphere with bed LED strips, strip LED COB delivers superior brightness and smooth illumination. It's especially popular as an LED light strip for kitchen cabinets, offering a clean and elegant look under shelves or along counters. These LED light strips for room decoration are flexible, energy-efficient, and easy to install—making strip LED COB the perfect solution for both functional and ambient lighting in any space.
Strip LED COB is widely used in various settings due to its high brightness and dot-free light output, including:
- Cabinet and showcase lighting – for seamless illumination without hotspots.
- Architectural lighting – perfect for coves, niches, and accent lines.
- Retail and display lighting – enhances product presentation with uniform light.
- Residential lighting – used in kitchens, staircases, and under-cabinet areas.
- Signage and backlighting – provides even, shadow-free illumination for signs and lightboxes.
LED Tape Suppliers
As a professional strip LED COB supplier, we offer a wide range of COB LED tape and LED lighting strips tailored for both residential and commercial projects. Our LED strip lights high quality ensure stable performance and excellent durability, making them ideal for lighting designers, installers, and retailers. We provide cut to length LED strip lights, including free cut COB LED strip options, allowing flexible installations for any project. With LED strip lights high lumens, our professional LED tape is perfect for task lighting, decorative accents, and more. Whether you're looking for 5m LED strip warm white for cozy spaces or commercial LED tape for large-scale applications, we support LED strip wholesale with competitive pricing and reliable delivery. Choose our strip LED COB products to elevate your lighting business with innovation and quality.
LED Strip vs COB
Strip LED COB FAQ
What is LED strip COB?
An Strip LED COB is a flexible light strip that uses Chip-on-Board technology to provide continuous, dot-free illumination with high brightness and uniformity.
Which is better, LED strip or COB strip?
Strip LED COB are generally better than traditional LED strips for achieving smoother, dot-free, and more uniform lighting effects.
What are the disadvantages of COB LED strips?
COB LED strips can have disadvantages such as higher cost, more heat generation, and slightly lower luminous efficiency compared to some traditional LED strips.
What does COB mean in LED lights?
COB in LED lights stands for"Chip on Board,"meaning multiple LED chips are packaged closely together directly on the circuit board to create a uniform, bright light source.
How to install LED strip lights?
To install a high CRI LED strip, start by measuring the area where the LED strip will be placed. Clean the surface to ensure good adhesion. Peel off the adhesive backing and stick the LED strip in place. Connect the strip to a compatible LED driver or controller, making sure the voltage and current match. A high CRI LED strip is ideal for applications that require accurate color rendering, such as in artwork lighting, photography studios, or makeup mirrors.
Can you cut LED strip lights anywhere?
No, you cannot cut LED strip lights just anywhere. A 24V COB LED strip should only be cut at the designated cutting lines, which are usually marked on the strip itself. Cutting outside these lines can damage the LED strip and cause sections to malfunction. Always follow the manufacturer’s guidelines to ensure proper operation and avoid voiding the warranty.
How many amps for a LED strip?
The number of amps a strip light needs depends on its power rating and length. For example, a natural white strip light rated at 12W per meter would draw 0.5 amps per meter on a 24V system (12W ÷ 24V = 0.5A). Always calculate the total amperage based on the full length of the LED strip, and use a power supply that provides at least 20% more current than required for safety and reliability.
