The Ultimate Guide to LED Modules for Signs and Light Boxes
The Ultimate Guide to LED Modules for Signs and Light Boxes
In the competitive landscape of modern advertising, your brand’s first impression is often determined by the quality of your illuminated signage. Whether it's a high-street retail storefront or a massive corporate pylon, the performance of your led modules for signs determines whether your brand remains a beacon of professionalism or becomes a maintenance nightmare.
For many sign makers and business owners, the frustration is all too familiar: flickering letters, dark spots in the middle of a logo, and rapid brightness decay. These issues aren't just "design flaws"—they are the direct result of poor led module selection. In this guide, we will explore how to choose the right led modules for channel letters and led modules for light boxes to ensure a "set and forget" installation that protects your brand and your bottom line.
Contents:
Why LED Modules Determine the "Lifespan" of Your Signage
Understanding the Two Main Solutions: Channel Letters vs. Light Boxes
What is an LED Module? (And Why It Beats LED Strips)
Key Considerations for Channel Letter Applications
Maximizing LED Modules for Light Boxes
How to Identify a "Stable & Durable" LED Module
12V vs. 24V: The Voltage Debate
Common Selection Errors (The Source of After-Sales Issues)
Why Your LED Module Supplier Matters
Conclusion: Quality is Not an Expense; It's an Investment
FAQ
Why LED Modules Determine the "Lifespan" of Your Signage
The transition from "just lighting up" to "consistently performing" is where professional signage differs from cheap alternatives. A low-quality SMD module LED might look bright on day one, but the real test begins after 1,000 hours of operation.
The True Cost of Poor Selection
Commercial Loss: A half-lit sign suggests a failing business. Flickering and uneven decay damage brand integrity.
Maintenance Nightmares: Replacing a led sign module inside a high-altitude channel letter often costs five times more in labor and equipment (crane rentals) than the entire string of modules.
Energy Waste: Inefficient led sign lighting modules consume more power while generating more heat—the primary enemy of LED longevity.
Our Goal: To help sign shops, light box manufacturers, and contractors choose stable and durable led lighting modules that reduce after-sales service calls and maximize ROI.
Understanding the Two Main Solutions: Channel Letters vs. Light Boxes
While the technology is similar, the application of modular LED signs requires two distinct approaches.

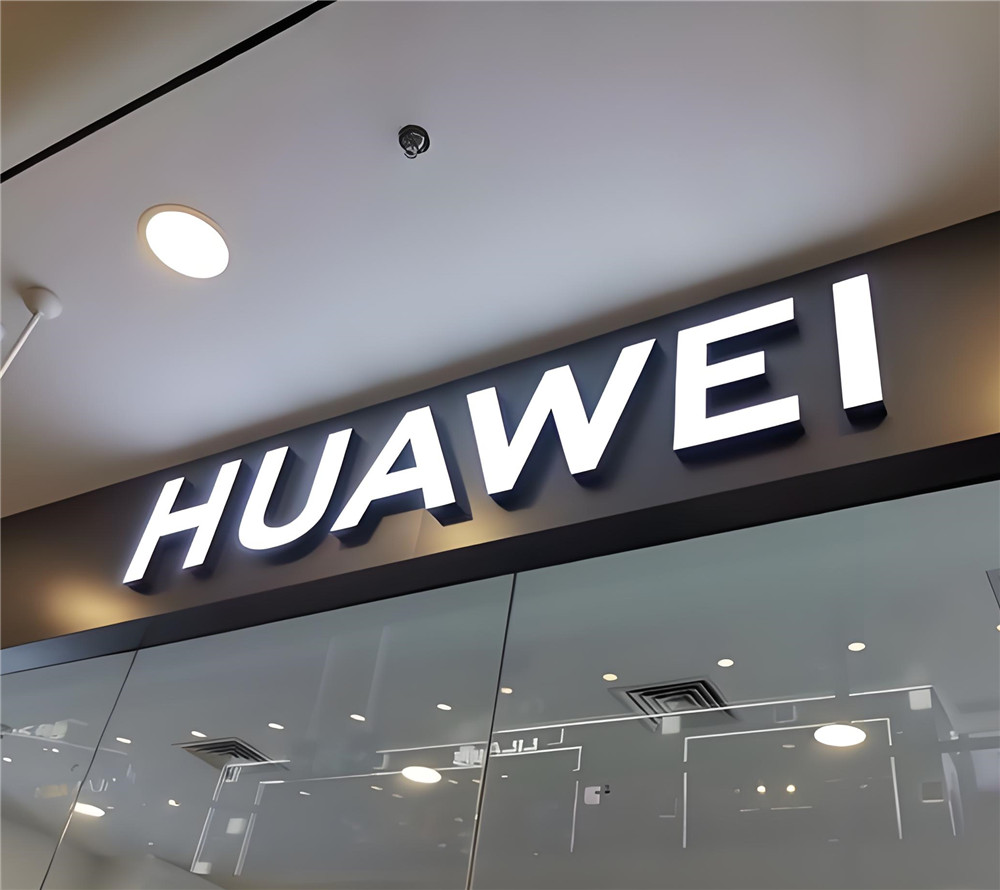

LED Modules for Channel Letters
These are the building blocks of 3D letters. They consist of an acrylic face, the led channel letter modules, and a backplate.
Front-lit: The most common type, requiring high-density placement for punchy light.
Halo-lit (Back-lit): Uses led modules for halo signage to create a soft, sophisticated glow against the mounting wall.
Contour/Side-lit: Requires micro LED modules to navigate tight curves and narrow serif fonts.

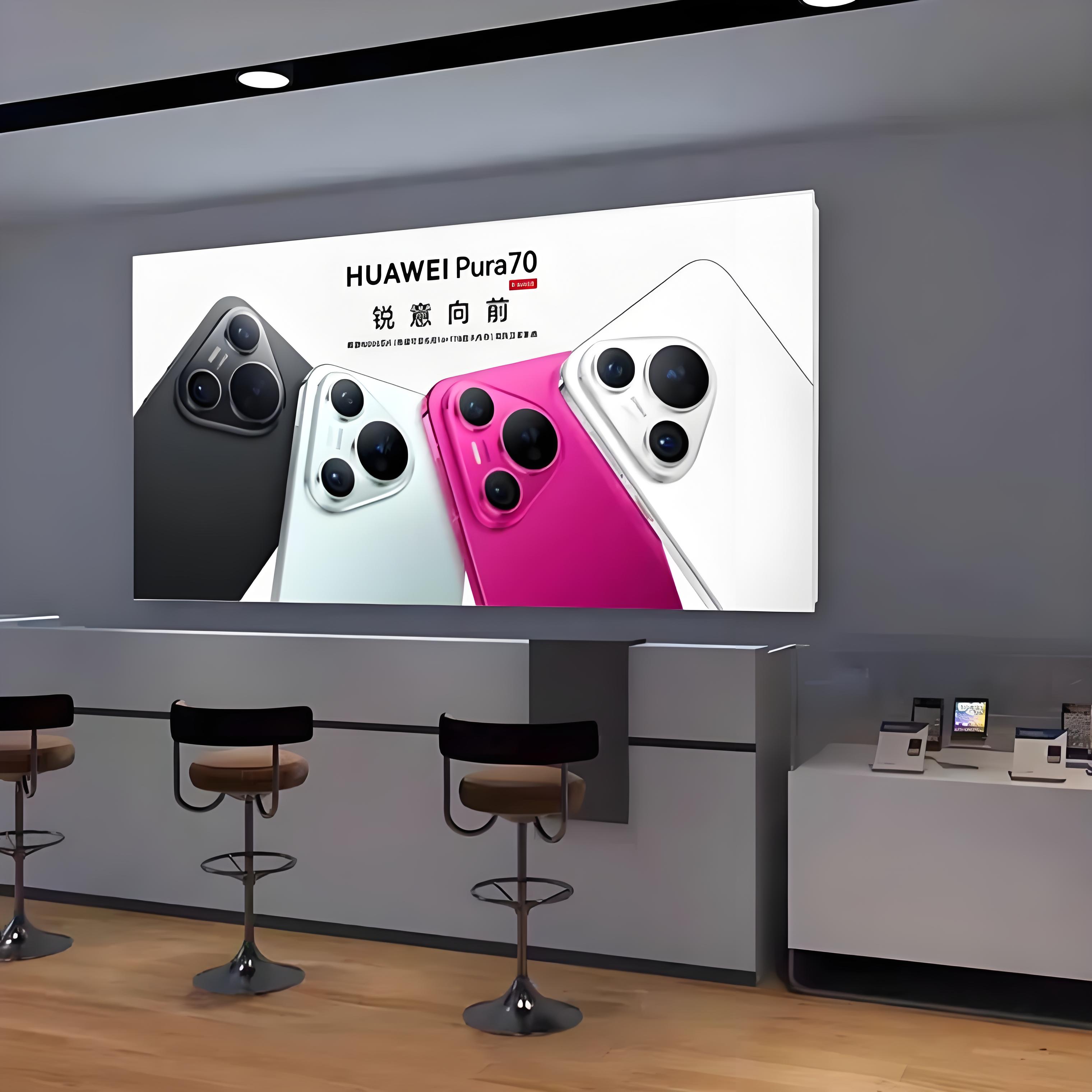

LED Light Box Modules
Typically used for larger rectangular displays, such as lightbox LED modules in airports or malls.
Structure: They rely on a frame, a diffuser (fabric or acrylic), and a high-output internal light source.
Application: These are perfect for led sign board modules and storefront pylon signs where uniform, wide-area coverage is essential.
What is an LED Module? (And Why It Beats LED Strips)
Many beginners ask: "Why not just use LED strips?" For professional signage LED modules, the difference is in the engineering.
The Anatomy of a High-Quality Module
The Chip & Lens: Professional led module light sources use chips from brands like Samsung led module or Osram led module. The optical lens (often 160° or 170°) is crucial for spreading light evenly in shallow signs.
The Substrate: A high-quality aluminum PCB led module is essential for heat dissipation.
The Housing: Waterproof led sign modules are protected by injection-molded IP67/IP68 casings, making them the best choice for outdoor led sign modules.
LED Modules vs. LED Strips
| Feature | Professional LED Module | Standard LED Strip |
| Uniformity | Excellent (due to optical lenses) | Prone to "hot spots" |
| Durability | High (molded protection) | Low (fragile components) |
| Ease of Install | led sign module strings are flexible | Difficult to turn sharp corners |
| Maintenance | Replace individual modules easily | Must replace the entire strip |
Key Considerations for Channel Letter Applications
When designing led modules for channel letters, the depth of the letter and the width of the stroke are your primary constraints.
Requirements by Letter Type
Front-lit Letters: Use super bright led sign modules with high Kelvin temperatures (e.g., 10000k white color sign led module) for a crisp, high-visibility look.
Back-lit (Halo) Letters: Opt for warm white led modules or rgb led modules for signs to create a premium architectural effect.
Slim Letters: For letters with a depth of 2-3 inches, best led modules for shallow sign cabinet narrow are those with ultra-wide beam angles to prevent "zebra stripes."
Layout and Effect
The led module layout tool for sign cabinets is vital. If your spacing is too wide, you get shadows; if it's too tight, you get "burn-through" and wasted energy. Always consider the led sign lighting modules length to ensure a clean, continuous loop.
Maximizing LED Modules for Light Boxes
Light boxes demand raw power and extreme uniformity.
Selection Logic by Depth
Ultra-thin Light Boxes (<50mm): Require edge-lit led modules for illuminated signs to avoid visible dots on the fabric.
Medium Depth (60–100mm): The standard range where light box led modules with 160° lenses shine.
Deep Cabinets: Can utilize high power led modules for signs to reduce the total module count while maintaining high lumen output.
Backlit vs. Sidelit
For a large led sign board module, a "Backlit" (Direct-lit) array is usually best for brightness. For double-sided signs, edge led module bars provide a sleek, shadow-free solution.
How to Identify a "Stable & Durable" LED Module
When vetting led light module manufacturers, look past the price tag. Check these three pillars:
Core Materials: High-quality Samsung led modules for signage provide consistent color binning. Ensure the aluminum pcb led module is thick enough to handle the wattage.
Design Circuitry: Constant current led modules are superior to constant voltage ones because they prevent the first module from being brighter than the last and protect against power surges.
Certifications: Professional grade means UL, CE, and RoHS compliance. Always ask for the led module datasheet to verify led sign modules price against actual performance.
12V vs. 24V: The Voltage Debate
12V LED Modules
These are the industry standard for smaller projects. They are flexible and easy to handle.
24V LED Modules
(The Professional Choice): For large led signage modules, 24V is far superior. It offers lower current (less heat) and a significantly lower voltage drop, allowing for longer runs from a single power supply. For outdoor led sign modules manufacture, 24V is increasingly the go-to for engineering-level projects.
Common Selection Errors (The Source of After-Sales Issues)
Chasing the Lowest Price: Buying cheap led sign modules usually results in color shifting within 6 months.
Ignoring Heat Dissipation: do led sign modules have their own heatsinks? Yes, the best ones do. Placing high-wattage modules in a sealed box without ventilation leads to early failure.
Stretching Spacing: Trying to save money by increasing the distance between modules leads to led sign module light spill and dark edges.
Why Your LED Module Supplier Matters
A reliable led sign module supplier is your partner in design. They should offer:
Photometric Data: To help with commercial sign led module photometric data and layouts.
Customization: Ability to provide custom signage led modules for unique branding.
Global Experience: A history of supplying led modules for signage china to North American and European markets.
Conclusion: Quality is Not an Expense; It's an Investment
Selecting the right led modules for signs is about more than just lighting a box; it’s about protecting a brand’s image and your company’s reputation. A stable, durable solution means fewer repairs, happier clients, and a more sustainable business model.
To the sign makers and designers: Stability = True Cost-Efficiency.
Ready to light up your next project with the best technology?
Would you like me to provide a custom led module layout or a technical comparison of samsung led module for signage vs. osram signage led module for your specific sign depth? Contact us today for a professional quote!
FAQ
How do I choose the right LED modules for signs based on my project?
Choosing the right LED modules for signs depends on the depth of the sign and the required brightness. For shallow signs, look for modules with wide-angle lenses (e.g., 160° or 175°) to prevent "hot spots." For outdoor signage, always ensure the modules have an IP65 or IP67 waterproof rating to withstand harsh weather conditions.
What is the ideal spacing for LED modules for channel letters?
The spacing for LED modules for channel letters typically depends on the depth of the letter. A general rule of thumb is that the center-to-center distance between modules should be equal to the return depth of the letter. This ensures an even glow without shadows or dark areas across the acrylic face.
Can I use the same LED modules for light boxes and channel letters?
Yes, many high-quality modules are versatile. However, LED modules for light boxes often require higher lumen output or specialized "edge-lit" technology if the light box is double-sided or very large. For standard channel letters, smaller, high-density modules are usually preferred to fit into tight curves and corners.Q4: How many LED modules can I connect to one power supply?A: This depends on the total wattage of the modules and the capacity of your power supply. To ensure longevity, we recommend the 80% Rule: only load your power supply to 80% of its maximum rated capacity. For example, on a 100W power supply, you should only connect up to 80W worth of LED modules.
How long do LED modules for signs typically last?
Quality LED modules for signs are designed for long-term use, typically rated for 50,000 hours or more. To maximize their lifespan, ensure they are paired with a stable constant-voltage power supply and have proper heat dissipation within the sign enclosure.
