Ultra Thin LED Strip – 24V, 2mm, COB, Seamless, 5m Roll
ADS-YCOB-480X-24-2
Voltage: 24V
Power: 4W/M
Lumen: 440LM/M
Color: 2700K/3000K/4000K/6500K
CRI: 90
PCB Width: 2mm
Length: 5m (16.4 ft)
Warranty: 5 years
Certificate: UL, UKCA, CE and RoHS
Power: 4W/M
Lumen: 440LM/M
Color: 2700K/3000K/4000K/6500K
CRI: 90
PCB Width: 2mm
Length: 5m (16.4 ft)
Warranty: 5 years
Certificate: UL, UKCA, CE and RoHS
Quantity
Thin LED Strip Factory
As a leading LED strip factory based in China, ADLED specializes in manufacturing the thinnest LED light strip on the market—down to just 2mm thick and 2mm wide. We are a trusted China mini LED strip lights manufacturer producing ultra thin LED tape, slim LED strip lights, and COB LED strip dimmable solutions for global residential, commercial, and architectural projects. With ISO-certified production lines and in-house R&D, we deliver high CRI LED strips, dotless LED strip lights, and seamless LED strips with UL, CE, RoHS, and UKCA certifications—ideal for designers seeking ultra slim LED strip, narrow LED strip lights, or the smallest LED strip for invisible integration.
What is the Thin LED Strip?
A thin LED strip is an ultra-compact, flexible lighting solution engineered for spaces where every millimeter counts. Measuring as little as 2mm in thickness—thinner than a credit card—it’s also known as ultra thin LED tape, slim LED strip, or mini LED light strips. Unlike conventional strips, our very thin LED strip lights use advanced FCOB (Flexible Chip-on-Board) or COB LED strip 24V technology to deliver dotless, seamless illumination without visible hotspots. Available in small white LED strip, RGB, or dimmable LED strip light variants, these small LED strip lights combine minimalism with high performance—perfect for cabinets, coves, furniture, and more.
Thin LED Strip Specifications
Code | LED Type | LED QTY | Votage | Color | Watts | Lumen | Efficiency | CRI | Pitch | Width |
ADS-YCOB-480WYW-24-2 | COB | 480 | DC24V | 2200K | 4W/m | 380Lm | 95Lm/W | 90 | 50mm | 2mm |
ADS-YCOB-480WRW-24-2 | 2700K | 400Lm | 100Lm/W | |||||||
ADS-YCOB-480WW-24-2 | 3000K | 420Lm | 105Lm/W | |||||||
ADS-YCOB-480NW-24-2 | 4000K | 440Lm | 110Lm/W | |||||||
ADS-YCOB-480PW-24-2 | 5000K | 440Lm | 110Lm/W | |||||||
ADS-YCOB-480W-24-2 | 6500K | 440Lm | 110Lm/W |
Thin LED Strip Sizes
DC24V
Thin LED Strip Features
- Ultra-Thin Profile: Just 2mm thick and as narrow as 2mm wide—ideal for ultra narrow LED strip applications
- Seamless & Dotless: FCOB LED strips and COB LED strip dimmable options eliminate LED dots for uniform glow
- High CRI (>90): LED strips high CRI ensure true-to-life color rendering—perfect for kitchens, retail, and art
- Fully Dimmable: All LED light strip dimmable models work with TRIAC, PWM, or smart dimmers
- Flexible & Cuttable: Thin flexible LED strip bends easily and cuts every 50mm for custom lengths
- 24V Low Voltage: LED strip COB 24V reduces voltage drop over long runs (up to 10m)
- Energy Efficient: Low LED strip power consumption with high lumen output
Seamless Illumination: Discover the Power of Thin LED Strip
Say goodbye to visible LED dots and uneven lighting. Our ultra thin LED ribbon uses FCOB (Flexible COB) technology to create a continuous line of light—making it the ultimate choice for LED strip seamless and LED strip lights dotless applications. Whether you’re lighting a luxury kitchen, a museum display, or a yacht interior, this super thin LED strip delivers professional-grade results with a thinnest LED light strip profile that disappears into the design.
Small LED Strip Lights – Compact, Flexible & Powerful Lighting Solutions
Looking for small LED strip lighting that doesn’t compromise on brightness? Our small LED strip lights—also called mini LED strip lighting, LED small strip, or small flexible LED strips—are engineered for tight spaces without sacrificing performance. Ideal as small white LED strip for task lighting or tiny LED strip lights for accent details, these slim LED light strip solutions fit where standard strips can’t.
Thin LED Strip Temperature Curve
The above curves indicate the temp. changing in glue, & PCB within 30 minutes after poweringon,under the ambient temperature of 25 ℃.
Thin LED Strip Brightness Consistency
The following charts shows the parameters on each meter based on 5M length.
From above chart, please connect 2.0M at most by one-end power to keep brightness consistency.
Thin LED Strip Test Report
Why Choose ADLED's Thin LED Strips?
- Factory Direct – Competitive pricing from a top LED strip factory in China
- World’s Thinnest Options – 2mm wide LED strip, 2mm LED strip, ultra thin LED ribbon
- Premium Quality – Every slim LED strip is 100% tested for brightness, color, and durability
- Full Ecosystem–LED Controllers,LED connectors,LED power supplies, and LED aluminum channelsincluded
- Global Certifications – UL, CE, RoHS, UKCA, FCC
- Custom Solutions – OEM/ODM support for China mini LED strip lights manufacturer partners
Choosing the Right Thin LED Strip for Your
NEED | RECOMMENDED PRODUCT |
Invisible under-cabinet light | 2mm LED strip,small white LED strip,dimmable LED strip light |
Luxury seamless glow | LED strip seamless,dotless LED strip lights,FCOB LED strips |
Color-changing ambiance | RGB thin LED strip,ultra thin LED tape with smart controller |
Long runs (>5m) | LED strip COB 24V,ultra slim LED strip light |
Moist environments | IP65 slim LED strip,waterproof ultra thin LED strips |
High color accuracy | LED strips high CRI,COB LED strip dimmable |
All strips come in 5m reels and custom lengths—ready for easy installing LED strip lights.

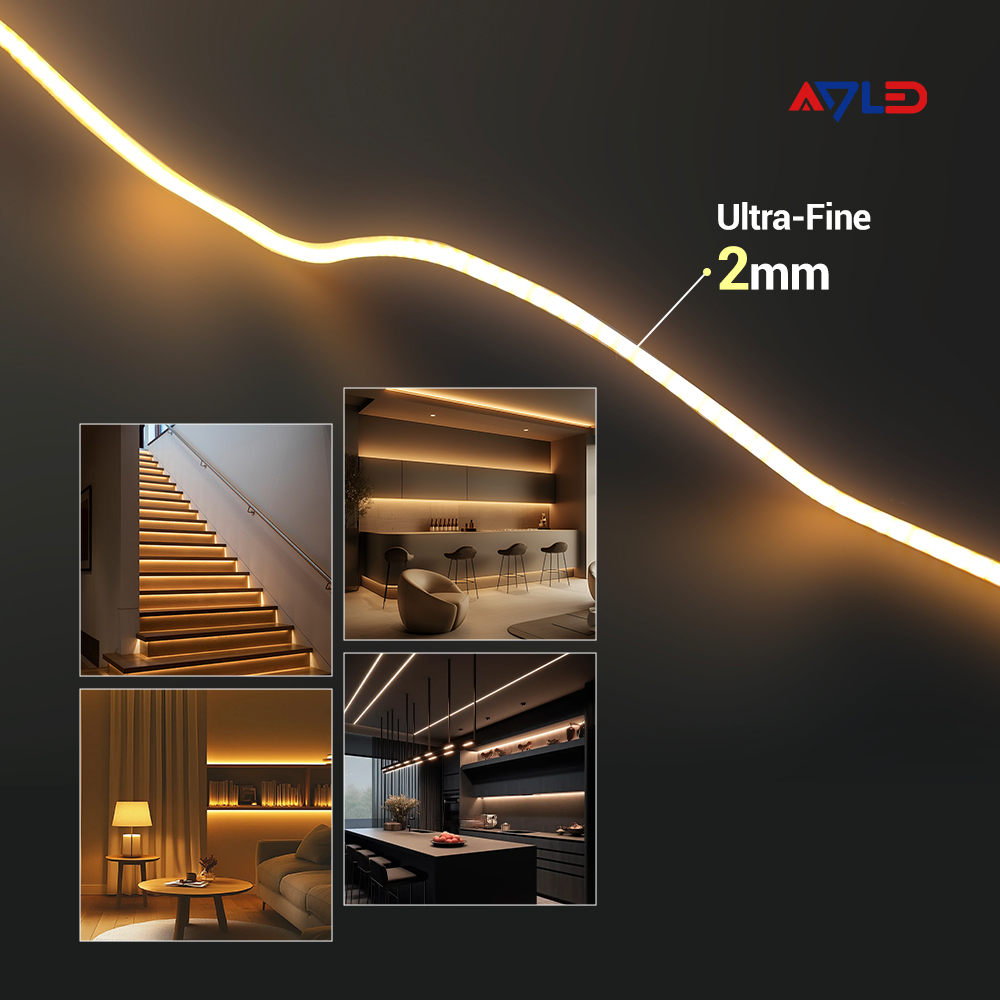

Thin LED Strip Application
Our ultra thin LED strips are trusted worldwide for:
- Commercial: Hotel lobbies, bar counters, retail signage, display cases
- Architectural: Floating shelves, staircase accents, bridge lighting
- Entertainment: DJ booths, stage edges, theater sets
- Automotive & Marine: Car ambient lighting, boat cabins (IP67/IP68 rated)
- Residential: Under-cabinet lighting, cove ceilings, bed frames, wardrobes
Whether you need narrow LED strip lights for a slim aluminum profile or the smallest LED strip for hidden installation, our LED strip light small size range has you covered.
Installing LED Strip Lights
- The max running length is 2 meters, for over 2 meters please connect in parallel.
- Make sure of the total watts of COB LED Strip lights is less than 80% of the power supply'smax output.
- Match the polarities according to the mark ('+' and '-') in the PCB while connecting.
Types of LED Strip Lights
 |  |  |
COB LED Strip | Single Color LED Strip | Color Changing LED Strips |
 |  |  |

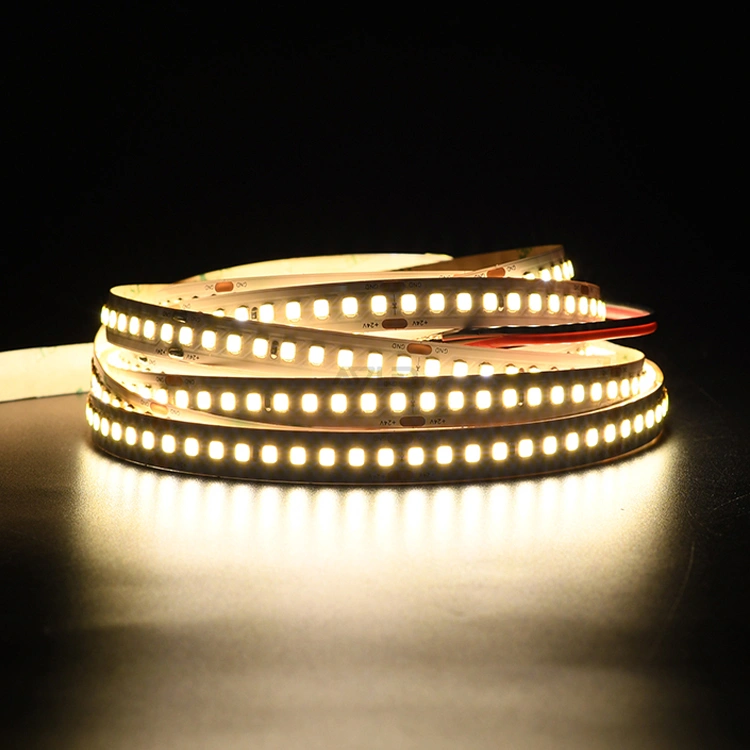

CCT LED Strip | Side Emitting LED Strip | Most Efficient LED Strip |
Thin LED Strip Certification
Thin LED Strip FAQs
How thin is “ultra thin” LED tape?
Our ultra thin LED tape is just 2mm thick—among the thinnest LED light strip available globally. Some models are even 2mm wide, making them the smallest LED strip for ultra-tight installations.
Can thin LED strips be cut to size?
Yes! All thin LED strips are cuttable every 50mm. Simply cut along the marked lines for small LED strip lighting that fits your exact space.
Are thin LED strips dimmable?
Absolutely. Our LED light strip dimmable and COB LED strip dimmable models work with standard dimmers or smart systems (Wi-Fi, Alexa, Google Home).
What voltage do thin LED strips use?
Most use 24V DC (recommended for low voltage drop), though 12V options are available. Our LED strip COB 24V is ideal for long runs and stable performance.
Are slim LED strips suitable for under-cabinet lighting?
Perfect! With a 2mm profile, small white LED strip and slim LED strip lights fit easily under cabinets, providing bright, glare-free task lighting—ideal as small LED strip lights for kitchens.
