Edge Lit LED Strip Bar 12V 24V 18LEDs 3030
ADS-E3030-18
3030 Edge Lit LED Bar, 12V/24V, 18LEDs, 28.8W/M, IP67, 15x45°, Constant current, Single Color 3000K/4000K/6500K, CE RoHS UL FCC Listed.
Quantity
Professional Edge Lit LED Strip Manufacturer & Supplier
Enhance your edge-lit displays with our leading-edge edge lit LED strip solutions. As a leader in side lighting manufacturing, we offer high-performance edge lit LED strip units designed for superior illumination and durability. These edge lit LED strip products provide consistent and even light distribution, perfect for creating striking edge light LED strip effects. Ideal for applications requiring light emission from the side, such as LED strip side view and edge lit LED bar displays, our solutions offer exceptional versatility. These LED strip side view configurations are particularly effective for slim profile signage and light boxes. Designed for demanding environments, our edge lit LED strip units are waterproof and feature a unique aluminum housing design for enhanced heat dissipation, ensuring long-lasting and reliable performance in LED lightbox lights. Choose our edge lit LED strip for cutting-edge side lighting solutions with superior heat management and weather protection.

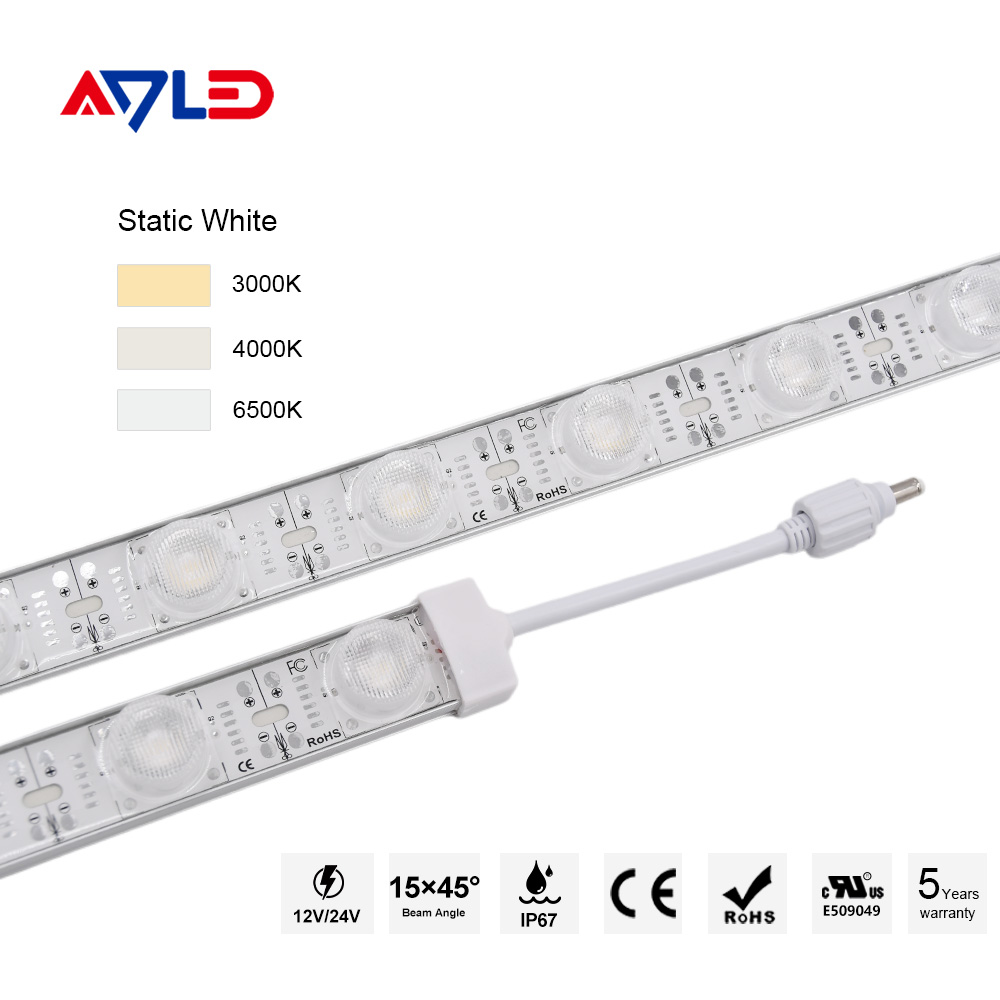

18LEDs 12V 24V Constant Current Edge Lit LED Bar
Edge Lit LED Strip Specifications
Code | LED Type | LED QTY | Voltage | Watts | Color | Beam angle | Driven Mode | Size | Warranty |
ADS-E3030-18WW | 3030 | 18LEDs | DC12V /24V | 28.8W | 3000K | 15x45° | Constant current | 1006x28x26mm | 5 years |
ADS-E3030-18NW | 4000K | ||||||||
ADS-E3030-18W | 6500K |

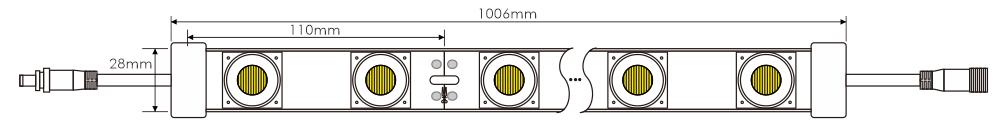

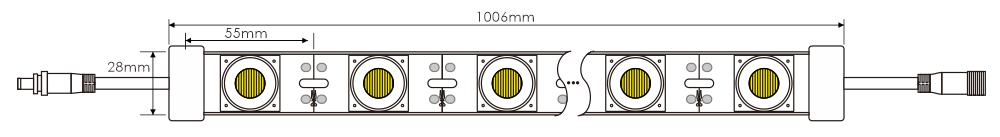

Edge Lit LED Strip Dimensions
DC12V Each lamp can be cut,Length can be customized.
DC24V Each 2 lamps can be cut,Length can be customized.
Edge Lit LED Strip Features
• Powered by Epistar chip 9v smd3030 LED
• DC12V/24V low-voltage power supply
• Aluminum base for good heat sinking
• 1mm or customized length
• DC12V/24V low-voltage power supply
• Aluminum base for good heat sinking
• 1mm or customized length
Box With LED Lights
Box with LED Lights: Brighten Your Light Box with Professional LED Strip Solutions
Upgrade your display with a box with LED lights, the ultimate solution for high-impact illuminated signage. Our lighting system features premium LED strip for light box applications, designed for even brightness and long-lasting performance.
Whether you need to light up a fabric frame, acrylic panel, or advertising display, our edgelight LED strip ensures brilliant illumination with minimal power consumption. The LED strip for light box is available in various voltages and color temperatures to match your project’s exact needs.
✅ Uniform brightness
✅ Slim and easy installation
✅ Long lifespan & energy efficient
✅ Ideal for indoor & outdoor use
✅ Slim and easy installation
✅ Long lifespan & energy efficient
✅ Ideal for indoor & outdoor use
Perfect for retail displays, lightbox signs, and exhibition setups, our box with LED lights solution helps your message shine day and night.

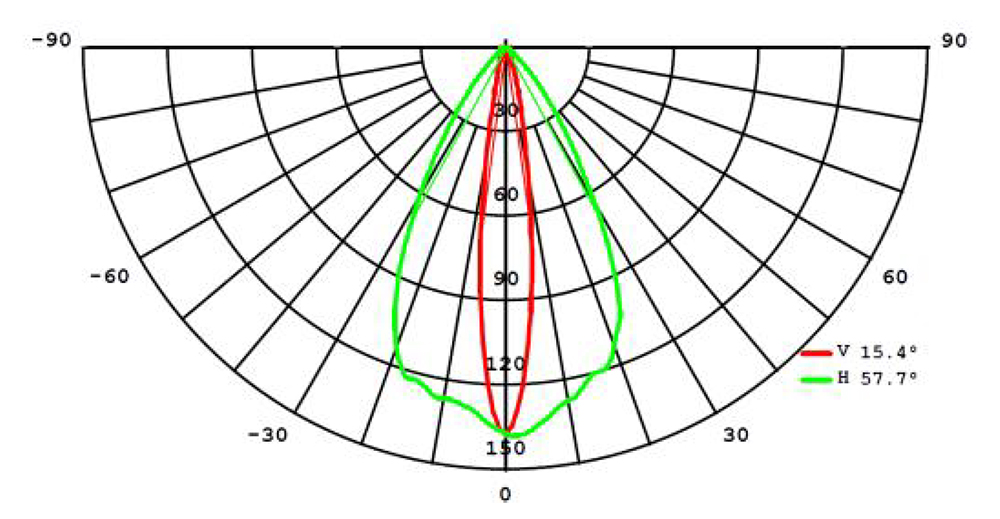

Edge Lit LED Strip Distribution Graph
Edge Lit LED Strip Series
Edge Lit LED Strip With Different Lens
Edge Lit LED Strip Application
Our high-efficiency Edge Lit LED Strip is the ideal lighting solution for a wide range of LED box lighting applications. Designed for exceptional brightness and uniform illumination, it enhances the visual impact of any light LED box, display box light, or light box with LED lights. Perfect for use in light box display stand, light box for display, and shop light box sign setups, our LED strips ensure vivid and consistent lighting across all surfaces. Whether applied in light boxes displays, light box LED sign，free standing LED light box structures, or compact LED lights boxes, our edge lighting delivers outstanding performance, low energy consumption, and long-lasting reliability. With flexible 12V/24V options and competitive LED light box price advantages, it’s a premium choice for improving lighted sign box prices and customizing any box for LED lights.
Edge Lit LED Strip Installation
Why Choose ADLED Edge Lit LED Strip?
Edge Lit LED Strip FAQ
How to build an LED light boxhow to build an LED light box?
To build an LED light box, start by preparing a lightweight frame—commonly aluminum or PVC—sized to fit your display graphic. Next, choose the right LED lightbox lights to ensure even and bright illumination. For slim and professional installations, we recommend using an edge lit LED strip or edge lit LED bar, which can be mounted along the inner edges of the frame. These edge light LED strip solutions distribute light uniformly across the surface, ideal for fabric or acrylic panels. Finally, connect the power supply (12V or 24V), install the diffusion panel and graphic, and secure the cover. With the right components, your LED light box will deliver brilliant, energy-efficient performance for signage, displays, or retail environments.
