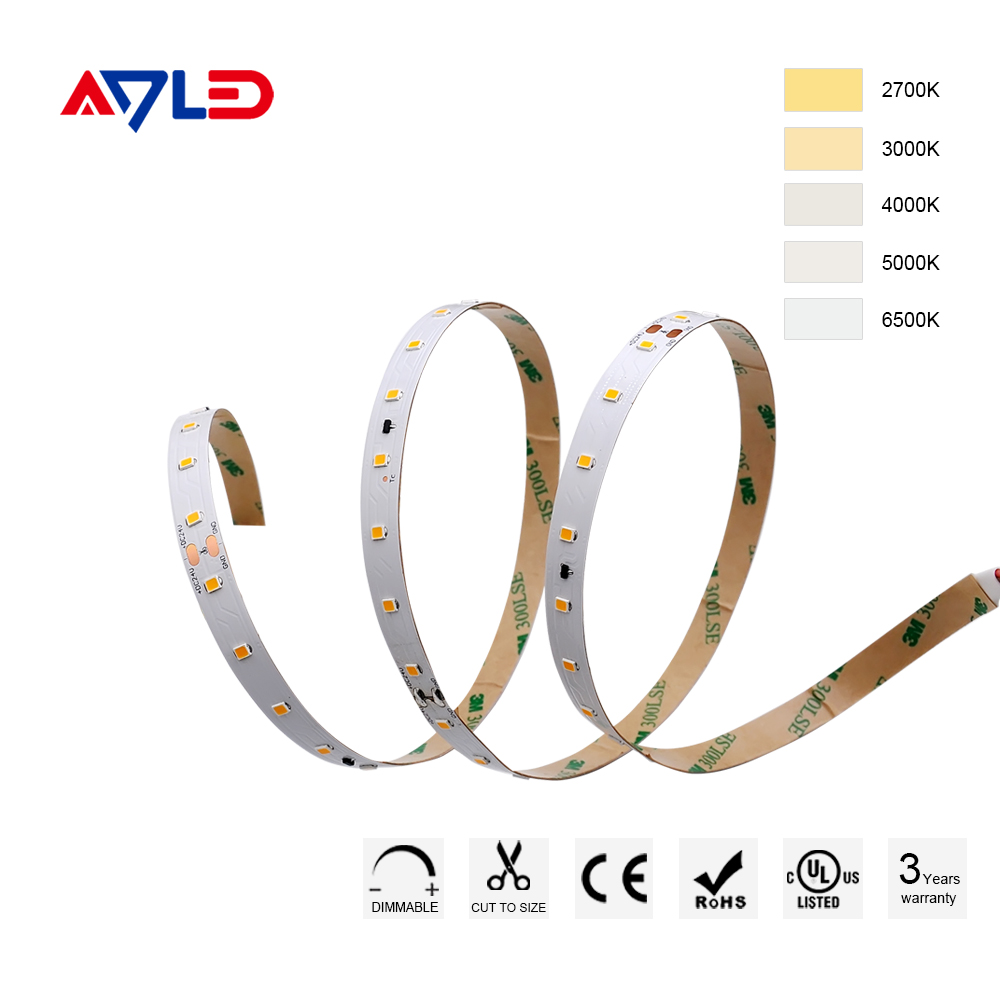

Flexible LED Strip SMD 2835 24V 64LEDs/M 10mm High Efficiency Constant Current
ADS-Y2835-64X-24-CC
SMD2835 LED Strip Lights, 24V, 10mm, 1536LM, CRI80/CRI90, 9.6W/M, IP20, Dimmable, Single White 2700K/3000K/4000K/5000K/6500K, CE RoHS UL Listed.
Quantity
Professional Flexible LED Strip Manufacturer
ADLED flexible LED strip offers exceptional versatility and performance for a variety of indoor applications, including LED strip lights for living room. These flexible LED strip options are designed for long runs with minimal voltage drop, thanks to their 24V constant current design, allowing for extended long strip lights installations. Our flexible LED strip is available on convenient LED light strip roll, making installation a breeze. Whether you need a bright daylight LED strip lights for task lighting or a cozy warm strip light for creating ambiance, our flexible LED strip has you covered. The high-efficacy design of our flexible LED strip, with typically 8 LEDs per cut point, ensures consistent brightness and energy efficiency. The LED strip price is competitive, offering excellent value for the performance and features. These flexi strips are ideal for various applications. For convenient purchase, you can find LED lights strips nearby or through online retailers. Our flexible LED strip is also known as ribbon lighting. Our flexible LED strip is a great choice.
64LEDs/m 10mm 24V SMD 2835 High Efficiency Constant Current LED Strip Light
Flexible LED Strip Specifications
Code | LED Type | LED QTY | Votage | Color | Watts | Lumen | Efficiency | Pitch | Width |
ADS-Y2835-64WRW-24-CC | SMD2835 | 64 | DC24V | 2700K | 9.6W/m | 1296Lm | 135Lm/W | 125mm | 10mm |
ADS-Y2835-64WW-24-CC | 3000K | 1344Lm | 140Lm/W | ||||||
ADS-Y2835-64NW-24-CC | 4000K | 1536Lm | 160Lm/W | ||||||
ADS-Y2835-64PW-24-CC | 5000K | 1536Lm | 160Lm/W | ||||||
ADS-Y2835-64W-24-CC | 6500K | 1536Lm | 160Lm/W |

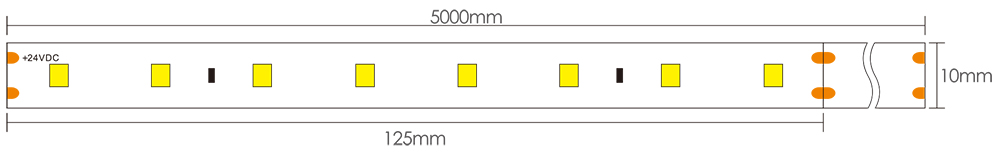

Flexible LED Strip Dimensions
DC24V
Flexible LED Strip Features
- Using super bright 2835 LED as light source
- 8 LEDs per cut, reaching higher efficiency
- Top-tier raw materials, durable longer lifespan
- Standard packed in 5m(16.4ft) per roll, IP20/IP65/IP67/IP68 waterproof LED strips
- 0-100% dimmable by LED strip light dimmer
- Ideal for office, residential, retail and industry lighting
Cutting LED Strips
Our flexible LED strip is designed for both indoor and outdoor use, offering excellent adaptability and performance. These long-lasting LED light strip solutions are ideal for various applications, from home accents to commercial signage. With cut to length LED strip features and clearly marked cutting LED strips points, you can easily customize the lighting to your desired size.
Installation is simple with sticking LED strip lights using strong adhesive backing or mounting clips. Perfect for exterior projects, our exterior strip LED lights and 5m outdoor LED strip lights are waterproof and built to withstand harsh weather.
Available in longer options like LED light strips long, they provide uninterrupted illumination. Choose our best LED outdoor strip lights for your next project, and enjoy the stability and brightness of our cc LED strip for consistent current and reliable performance.
Installation is simple with sticking LED strip lights using strong adhesive backing or mounting clips. Perfect for exterior projects, our exterior strip LED lights and 5m outdoor LED strip lights are waterproof and built to withstand harsh weather.
Available in longer options like LED light strips long, they provide uninterrupted illumination. Choose our best LED outdoor strip lights for your next project, and enjoy the stability and brightness of our cc LED strip for consistent current and reliable performance.

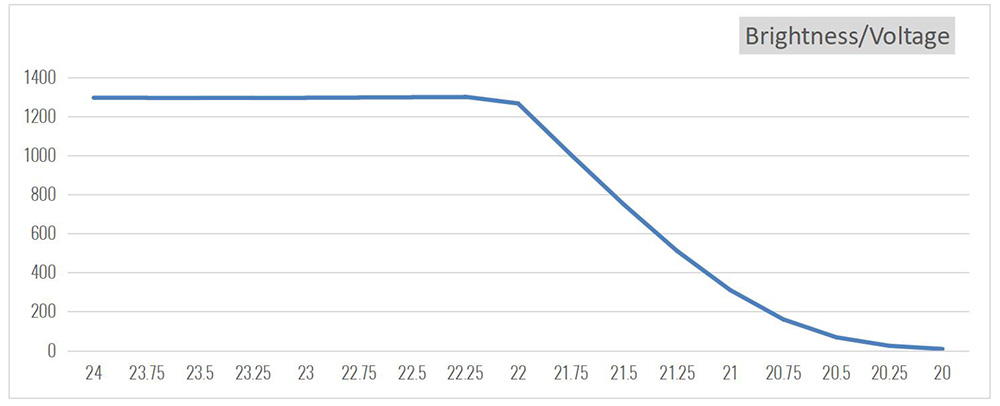

Flexible LED Strip Brightness Curve
The following curve shows the how voltage affects the brightness.
The x-axis indicates the input voltage, it's gradually reduce by step in 0.25Vdc.
The y-axis indicates the changes of brightness based on each input voltage.
Flexible LED Strip Temperture Curve
The following curve based on 30 minutes testing data. The Temp. changes after powering within 30 minutes.
The x-axis indicates the minutes from 1 minutes to 30 minutes.
The y-axis indicates the changes of temperatures in Soldering Pads, LED surface, PCB, IC and Room.
LED Strip Wattage per Meter
Our flexible LED strip delivers powerful and efficient lighting at just 9.6W per meter, making it ideal for energy-saving projects. With an impressive luminous efficacy of 160Lm/W, this flexible LED strip provides bright, consistent illumination while keeping power consumption low. Whether for home, retail, or display use, the flexible LED strip offers the perfect balance of performance and efficiency.
Flexible LED Strip Application
Flexible LED strip lights are perfect for creative and functional lighting in various spaces. Many homeowners and designers use LED strip lighting for shelves to highlight collectibles or books with a soft glow. In hospitality settings, bar LED strip lights add modern ambiance and vibrant color accents. Whether you're enhancing your home or business, decorating with LED strip lights is an easy way to create stylish and energy-efficient illumination. A versatile LED strip for lighting fits seamlessly into cabinets, display cases, or architectural features, making it a go-to solution for customized lighting design.

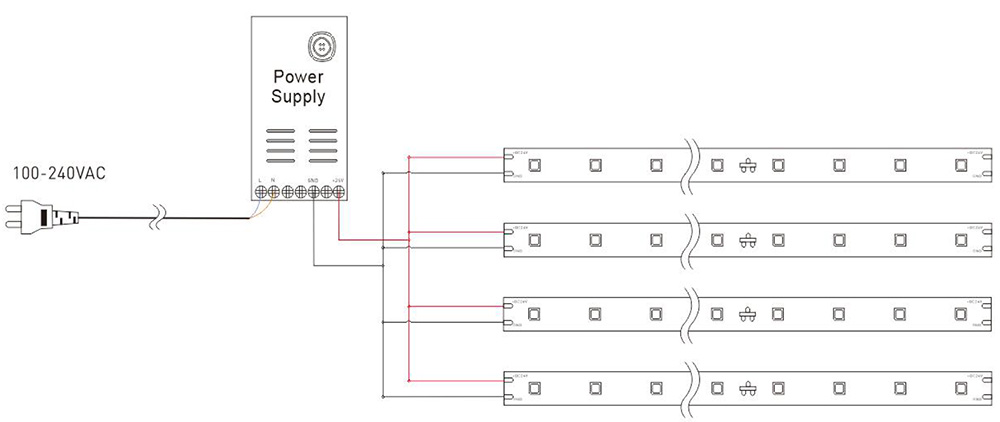

Installing LED Strip Lights
Flexible LED Strip FAQ
What are the best LED light strips?
The best LED light strips combine high brightness, color consistency, durability, and energy efficiency. Look for LED strips with:
- High CRI (80+ or 90+) for accurate color rendering
- Certified safety standards (UL, CE, RoHS)
- Reliable brands like ADLED, Philips, or Govee
- Features like dimmability, waterproofing, or smart control
COB and high-density SMD LED strips are top choices for smooth, uniform light.
How to connect multiple LED strip lights?
You can connect multiple LED strip lights in two main ways:
End-to-end connection using connectors or soldering wires at the cut points
Parallel connection where each LED strip gets power from the same source
Always ensure the power supply has enough wattage to support the total length, and use amplifiers for long runs to prevent voltage drop.
Always ensure the power supply has enough wattage to support the total length, and use amplifiers for long runs to prevent voltage drop.
Which type of LED strip light should I choose?
It depends on your application:
- COB LED strips: dot-free, soft light—great for task and accent lighting
- SMD 2835/5050: common for general lighting and decorative use
- RGB/RGBW: for color-changing effects
- Waterproof/IP65+: for outdoor or damp areas
- Choose the voltage (12V or 24V), brightness, and color temperature based on your project needs.
Can LED strips cause eye strain or headaches?
Low-quality LED strips may cause flickering, which can lead to eye strain or headaches over time. To avoid this:
Use high-quality, flicker-free LED strips
Choose LEDs with a high CRI and proper color temperature (e.g., 2800K–6500K)
Install with diffusers for softer, more comfortable light
Good quality flexible LED strip lights from trusted brands are generally safe and eye-friendly.
Good quality flexible LED strip lights from trusted brands are generally safe and eye-friendly.
