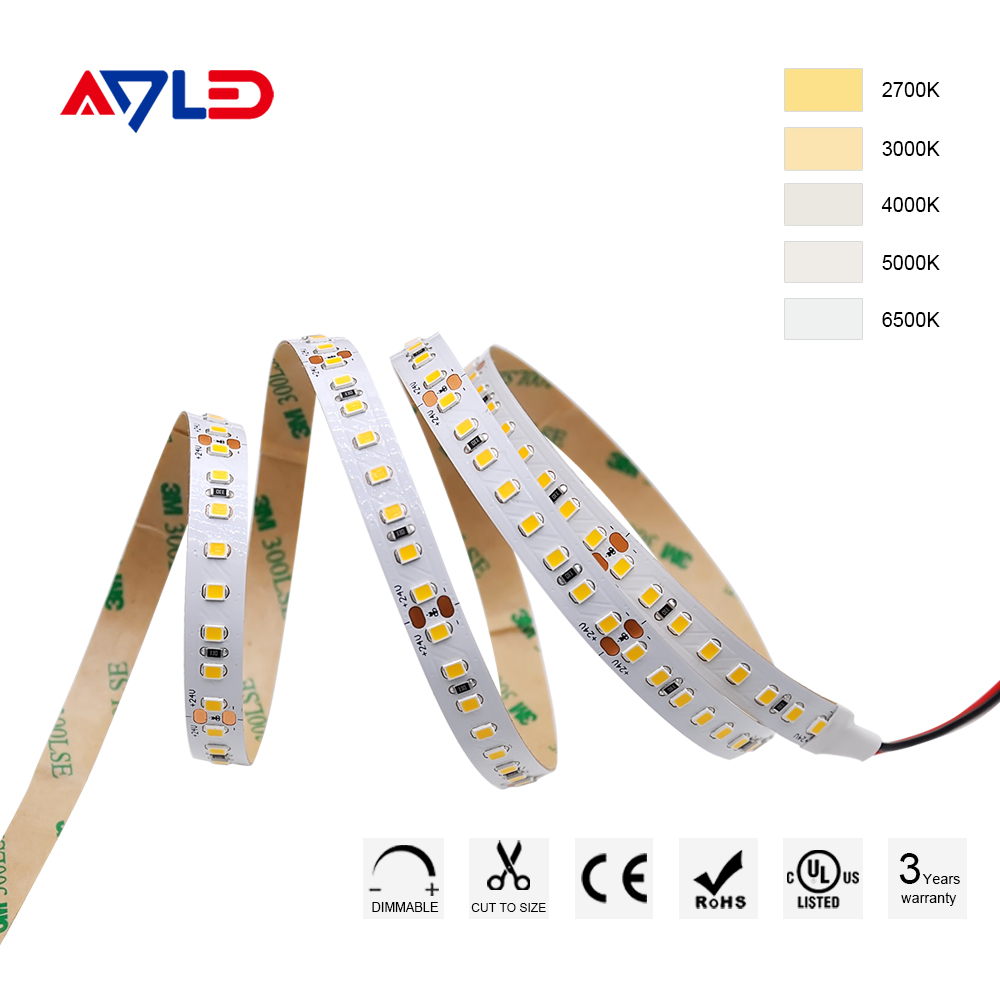

LED Tape Light Under Cabinet SMD 2835 24V 144LEDs/M 10mm High Efficiency LED Strip
ADS-Y2835-144X-24-H
SMD2835 LED Strip Lights, 24V, 10mm, 2400LM, CRI80/CRI90, 15W/M, IP20, Dimmable, Single White 2700K/3000K/4000K/5000K/6500K, CE RoHS UL Listed.
Quantity
Professional LED Tape Light Under Cabinet Manufacturer
Transform your kitchen and interior spaces with our high-performance LED tape light under cabinet. This LED tape light under cabinet solution is specifically designed for illuminating kitchen countertops and other interior areas. Whether you're looking for focused task lighting or subtle accent lighting, our LED tape light under cabinet offers exceptional versatility. Available as a 5m LED light strip and other lengths, this product is ideal for a variety of installations. Experience superior brightness with our highest lumen LED strip options, ensuring ample light for any task. Choose between a cozy 5m warm white LED strip or a clean soft white LED strip to match your existing décor. Our LED tape light under cabinet also offers a gentler illumination with our soft LED strip options. Crafted on a durable 2oz PCB board, these ultra bright LED strip offer enhanced heat dissipation and longevity. For accurate color rendering, choose between CRI80 or CRI90 options. Find all your lighting needs at our LED strip light shop, where you can explore a wide variety of interior LED light strips specifically designed for LED strip lighting under kitchen cabinets. Our LED tape light under cabinet is a premium choice.
144LEDs/m 10mm 24V SMD 2835 160LM/W High Efficiency LED Strip Light
LED Tape Light Under Cabinet Specifications
Code | LED Type | LED QTY | Votage | Color | Watts | Lumen | Efficiency | Pitch | Width |
ADS-Y2835-144WRW-24-10-H | SMD2835 | 144 | DC24V | 2700K | 15W/m | 2025Lm | 135Lm/W | 55.56mm | 10mm |
ADS-Y2835-144WW-24-10-H | 3000K | 2100Lm | 140Lm/W | ||||||
ADS-Y2835-144NW-24-10-H | 4000K | 2400Lm | 160Lm/W | ||||||
ADS-Y2835-144PW-24-10-H | 5000K | 2400Lm | 160Lm/W | ||||||
ADS-Y2835-144W-24-10-H | 6500K | 2400Lm | 160Lm/W |

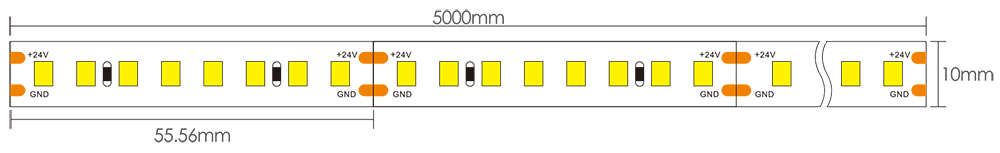

LED Tape Light Under Cabinet Dimensions
DC24V
LED Tape Light Under Cabinet Features
- Using super bright 2835 LED as light source
- 8 LEDs per cut, efficiency up to 160Lm/w
- Top-tier raw materials, durable longer lifespan
- Standard packed in 5m(16.4ft) per roll, IP20/IP65/IP67/IP68 waterproof LED strips
- 0-100% dimmable by LED strip light dimmer
- Ideal for office, residential, retail and industry lighting
Cuttable LED Strip Lights
LED tape light under cabinet offers a sleek and modern lighting solution for kitchens and workspaces. Our cuttable LED strip lights allow for precise customization to fit any space, making installation effortless. Ribbon LED lights provide flexible and uniform illumination, perfect for various design needs. Commercial LED light strips ensure durability and high performance for demanding environments, while 24 volt LED light strips deliver stable power and efficient operation. Designed for indoor use, LED light strips interior enhance ambiance with bright, consistent lighting. Our good quality LEDstrip guarantees longevity and reliability. Energy efficient LED strip lights reduce power consumption without compromising brightness. The 5m strip LED lights come in convenient lengths, suitable for many applications. For outdoor needs, outdoor white LED strip lights offer waterproof and weather-resistant performance to brighten exterior spaces with clean, vibrant light.
LED Tape Light Under Cabinet Temperature Curve
The above curves indicate the temp. changing in Resistor, LED & PCB within 30 minutes after powering on, under the ambient temperature of 25 ℃.

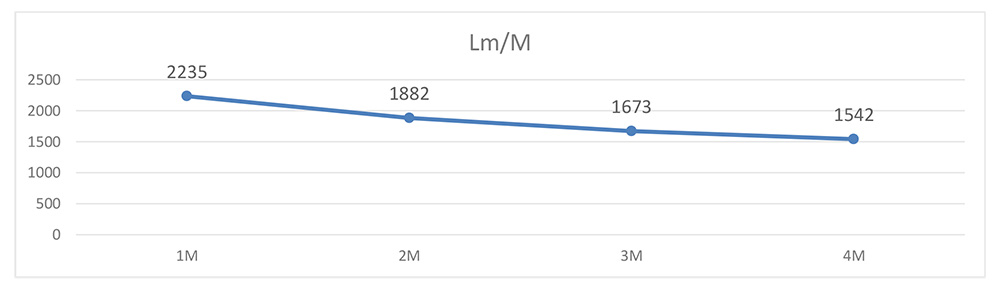

LED Tape Light Under Cabinet Brightness Consistency
The following charts shows the parameters on each meter based on 4M length.
From above chart, please connect 4M at most by one-end power to keep brightness consistency.
LED Tape Light Application
LED tape light under cabinet is perfect for adding functional and stylish illumination to kitchen and workspace areas. LED strip lights design for ceiling creates a modern and sleek ambiance, enhancing the overall look of any room. LED strips for house offer versatile lighting solutions for various indoor spaces, providing both aesthetic appeal and practical use. Strip light LED ceiling is ideal for continuous, even lighting in living rooms, hallways, and other areas requiring smooth light distribution. Sauna LED strip lights are specially designed to withstand high humidity and heat, making them a safe and effective choice for sauna environments.
LED Light Strips Installation
LED Strip Review
Our LED tape light under cabinet has received consistently high praise from customers worldwide. The LED tape light under cabinet offers excellent brightness and easy installation, making it a favorite choice for kitchens and workspaces. Many users highlight the durability and energy efficiency of the LED tape light under cabinet, noting its long lifespan and low power consumption. Thanks to its reliable adhesive backing and flexible design, the LED tape light under cabinet stays securely in place and provides uniform lighting without flickering. Overall, the LED tape light under cabinet is highly recommended for anyone seeking a high-quality, efficient, and stylish lighting solution.
LED Tape Light Under Cabinet FAQ
Where can i buy LED strips?
You can buy LED tape light under cabinet from specialized lighting stores, online marketplaces like Amazon, Alibaba, or directly from manufacturers and distributors such as ADLED. For bulk purchases or custom options, it's best to contact professional suppliers who offer high quality LED strip lights.
How to connect multiple LED strips?
To connect multiple LED strips, you can use soldering or compatible connectors designed for LED strips. Ensure the power supply can handle the total wattage of all connected LED strips. Use proper wiring techniques and connect LED strips in parallel for consistent voltage. For longer runs, consider using higher voltage LED strips to reduce voltage drop.
Why do LED strip lights flicker?
LED tape light under cabinet flickering can be caused by several factors, including:
- An incompatible or faulty power supply or driver
- Loose or poor wiring connections
- Overloading the power supply beyond its capacity
- Using dimmers or controllers not compatible with the LED strip type
My LED strip or power supply is overheating. What should I do?
If your LED tape light under cabinet or power supply is overheating:
- Check if the power supply wattage matches the LED strip's requirements
- Ensure the LED strip is installed on a proper heat-dissipating surface, such as aluminum profiles
- Avoid overloading by connecting too many LED strips to a single power supply
- Use a power supply with built-in thermal protection
- Improve ventilation around the LED power supply and LED strips
If problems persist, consult the supplier or a professional electrician for further diagnosis.
